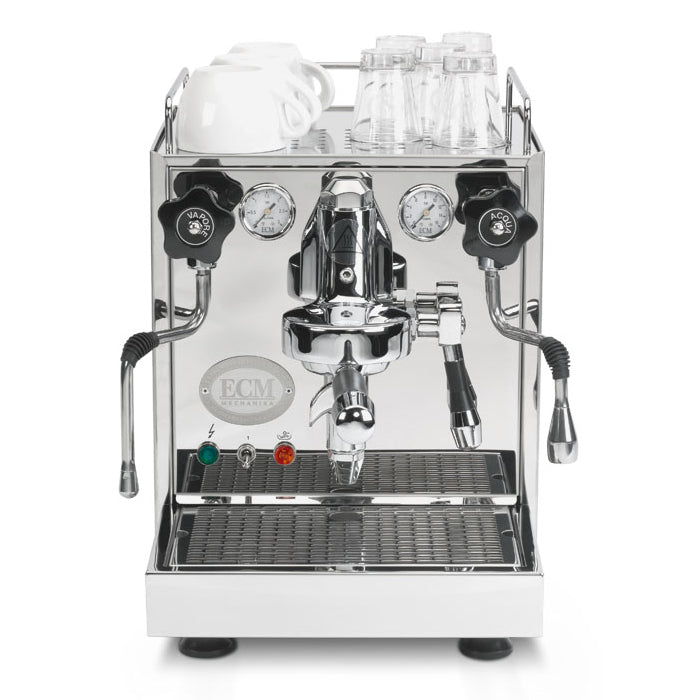

ECM Mechanika IV Espresso Machine
Looking for something?
It looks like you've found one of our old product listings! It had a good run and is enjoying some well deserved rest. Instead, we've put together some excellent alternatives below for your consideration.
Need any help? Talk to one of our experts: 585-924-7170
Balanced Portafilters
One of the first things you'll notice about the portafilters are how balanced they feel in your hand. The weighted end offsets the weight of the basket, keeping you from having to overcompensate with your wrist. On par with commercial grade machines, the Mechanika’s portafilters are made of chrome-plated brass for increased temperature stability.
Durable Stainless Steel Construction
The Mechanika is housed in polished stainless steel that is both tough as nails and easy on the eyes. ECM wasn't content with simply welding the drip tray onto the machine, it's actually part of the frame for enhanced durability and build quality.
Copper Plumbing
As an ECM machine, the Mechanika is fitted with copper water tubing as opposed to teflon or other plastics.
3 Liter Monitored Reservoir
The water reservoir holds an ample 3 liters of water and is fitted with a sensor that shuts off the machine at low volume to keep the machine from running dry.
Insulated Steam and Hot Water Wands
To help prevent accidental burns, both the steam and hot water wands have been insulated to keep them from getting too hot too quickly. The steam wand sports a two-hole tip, ideal for frothing milk for lattes and cappuccinos. The hot water wand can dispense water for tea, cocoa, Americanos, and more.
You may also like
Specifications
| Property | Value |
|---|---|
| SKU | ECMMECHANIKAIV-WLL |
| Boiler Configuration | Heat Exchanger |
| Number of Boilers | 1 |
| Boiler Features | Rapid Steam,Brew & Steam Simultaneously |
| Brew Boiler Heater Location | Internal |
| Brew Boiler Material | Copper |
| Brew Boiler Orientation | Horizontal |
| Brew Boiler Type | Heat Exchanger |
| Brew Boiler Volume (Oz) | 68 |
| Three-Way Valve | Manual |
| Brew Group Material | Chrome Plated Brass |
| Brew Group Type | E61 |
| Brew Boiler Wattage | 1200 |
| Recommended Application | Home / Residential |
| Display Type | Indicator Lights |
| Controls and Additional Features | Low-Water Warning,Power Light,Steam Control |
| Pressure Gauges | Brew Circuit,Steam Boiler |
| Type of Controls | Lever |
| Cup Height (max, inches) | 3.25 |
| Cup Warmer Material | Stainless Steel |
| Cup Warmer Size (L-in x W-in) | 10 x 4 |
| Cup Warmer | Passively Heated |
| Drip Tray Capacity (oz) | 40 |
| Drip Tray Cover Material | Stainless Steel |
| Drip Tray Material | Stainless Steel |
| Portafilter Baskets Included | Single,Double |
| Frame Material | Steel |
| Dispensing Method | Doser |
| Programmable Grinding | Single |
| Housing Color | Stainless Steel |
| Housing Material | Stainless Steel |
| Recommended Water Filter | No Filter Required |
| Depth (Inches) | 17.75 |
| Height (Inches) | 15.5 |
| Weight (Lbs) | 50 |
| Width (Inches) | 12 |
| Hot Water Reheat Time (Typ. Seconds) | 0 |
| Property | Value |
|---|---|
| Hot Water Temperature (8oz, Deg. F) | 195 |
| Hot Water Time (8oz, Seconds) | 11 |
| Time to Steam 8oz of Milk (Seconds) | 54 |
| Sound Level while Brewing (dB) | 61 |
| Time to Heat (Minimum Seconds) | 600 |
| Time to Heat (Recommended Seconds) | 900 |
| Filter Diameter (mm) | 58 |
| Portafilter Handle Material | Bakelite Plastic |
| Portafilter Material | Chrome Plated Brass |
| Number of Portafilters Included | 2 |
| Ground, E.S.E., Pod and Capsule Compatibility | Ground Coffee |
| Portafilter Type | Commercial Style |
| Portafilter Weight (lbs) | 1.25 |
| Adjustable Brew Pressure | Yes |
| Pump Pressure (Max. Bar) | 15 |
| Pump Type | Vibration |
| Pump Wattage | 47 |
| Warranty Service Provider Email | support@wholelattelove.com |
| Warranty Service Provider | Whole Latte Love |
| Warranty Service Provider Phone Number | 888-411-5282 |
| Manufacturers Warranty Period | 3-Year Parts and Labor Warranty |
| Volt | 110V-120V (US) |
| Watts | 1200 |
| Power Cord Length (inches) | 48 |
| Steam Boiler Type | Heat Exchanger |
| Steam Wand Features | No-Burn |
| Height Off Counter (Inches) | 6.5 |
| Steam Wand Material | Stainless Steel |
| Steam Wand Movement Type | Fully Articulated |
| Steam Wand | Commercial |
| Steam Wand Usable Length | 4 |
| Water Reservoir Access Location | Top |
| Water Reservoir Capacity | 100 |
| Water Reservoir Features | Removable |
| Water Reservoir Material | Plastic |
| Water Source | Built-In Reservoir |
