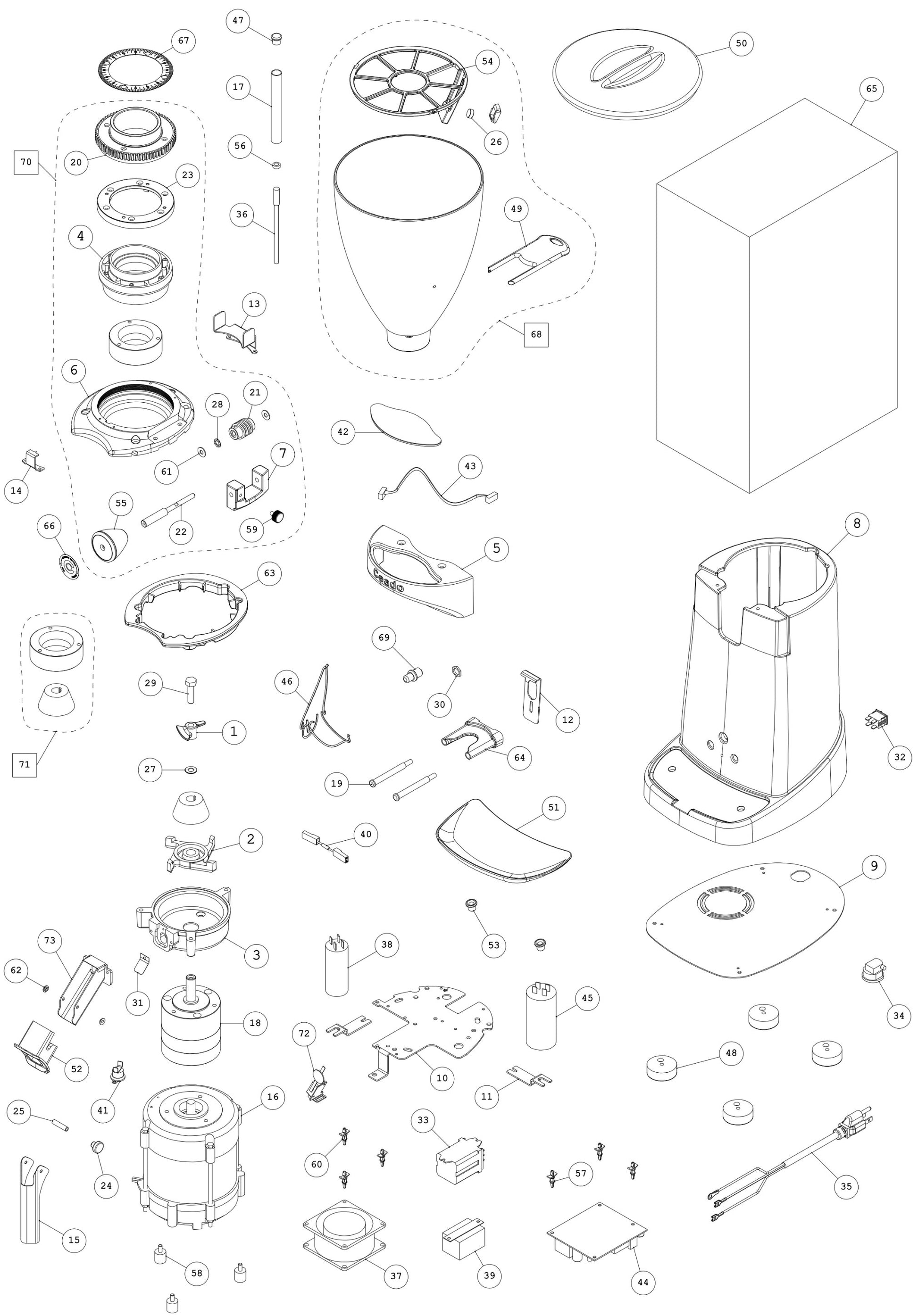

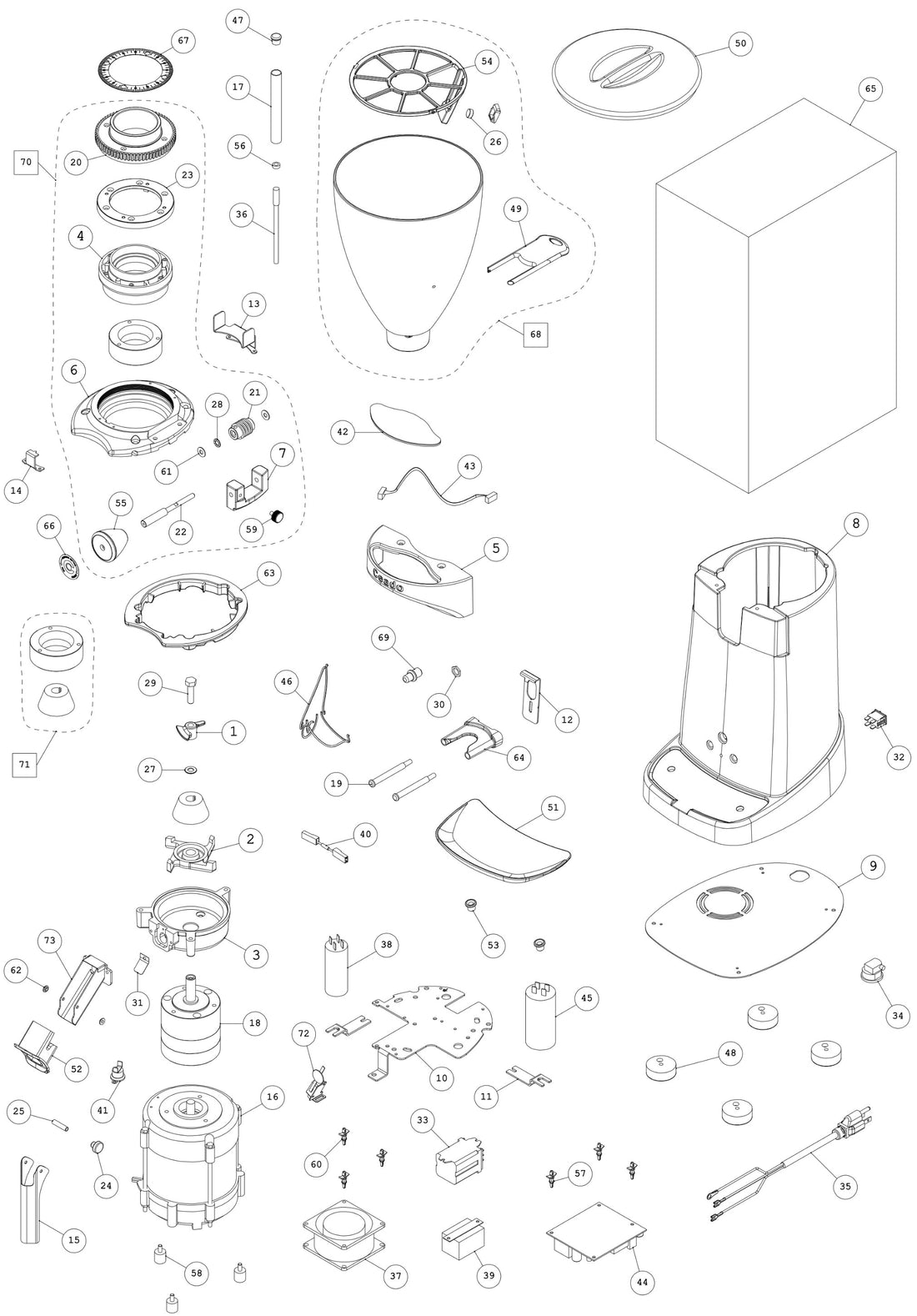

Ceado E37K Part Diagram CEAE37K
This is the Ceado E37K Part Diagram CEAE37K. In the list below, you will find all the parts associated with the diagram that are available. Use the parts diagram to determine the part(s) you need.
If the part listed below is not viewable then we do not carry it at this time. However, if your machine is currently in production we are likely able to acquire the part directly from the manufacturer. In this case, contact us by submitting a support ticket. Please be advised that it may take up to eight weeks for us to receive the part from the manufacturer.
Please note: Parts are neither returnable nor refundable. If you need assistance selecting a part for your machine, please submit a support ticket.-
| Diagram # | Pos # | Image | Description | Price |
|---|
| Diagram # | Pos # | Image | Description | Price | |
|---|---|---|---|---|---|
| CEAE37K-1 | 1 | E92 COFFEE GRINDER AUGER Part Number: 10186 |
$9.93 | View Part | |
| CEAE37K-1 | 2 | MACHINED E92 IMPELLER Part Number: 10284 |
$32.70 | View Part | |
| CEAE37K-1 | 3 | GRINDER CUP E37K WORKED
Part Number: 10364 |
|||
| CEAE37K-1 | 4 | MACHINED E37K GRINDER SUPPORT
Part Number: 10374 |
|||
| CEAE37K-1 | 5 |
|
DISPLAY SUPPORT E37S/E92 2011 GLOSS Part Number: 10381 |
$85.30 | View Part |
| CEAE37K-1 | 6 | COFFEE GRINDER HEAD E37K POLISHED (rev. C)
Part Number: 10870 |
|||
| CEAE37K-1 | 7 | E37K ADJUSTMENT SCREW SUPPORT
Part Number: 11108 |
|||
| CEAE37K-1 | 8 | E37T BLACK COFFEE GRINDER BODY
Part Number: 11411 |
|||
| CEAE37K-1 | 9 | BACKPACK E92 (rev.B)
Part Number: 20321 |
|||
| CEAE37K-1 | 10 | E92 ENGINE SUPPORT BRACKET (rev.O)
Part Number: 20322 |
|||
| CEAE37K-1 | 11 | CONDENSER SUPPORT BRACKET E92/E37S (Rev.C)
Part Number: 20331 |
|||
| CEAE37K-1 | 12 | FILTER HOLDER BRACKET STOPPING CUP E37S/E92 (rev.B)
Part Number: 20365 |
|||
| CEAE37K-1 | 13 | BELL ROTATION LOCKING BRACKET E37K
Part Number: 20380 |
|||
| CEAE37K-1 | 14 | E37K ADJUSTMENT INDEX BRACKET Part Number: 20381 |
$15.02 | View Part | |
| CEAE37K-1 | 15 | STAINLESS STEEL SLIDE EXTENSION (rev.B)
Part Number: 20396 |
|||
| CEAE37K-1 | 16 |
|
E92 110V GRINDER MOTOR Part Number: 30225 |
$464.82 | View Part |
| CEAE37K-1 | 17 | SAFETY ROD E92 Part Number: 40033 |
$35.49 | View Part | |
| CEAE37K-1 | 18 |
|
PLANETARY REDUCER FOR CONICAL Part Number: 40224 |
$837.00 | View Part |
| CEAE37K-1 | 19 | RUBBER FILTER HOLDER SUPPORT PIN
Part Number: 40246 |
|||
| CEAE37K-1 | 20 |
|
TOOTHED RING E37K Part Number: 40261 |
$234.96 | View Part |
| CEAE37K-1 | 21 |
|
E37K ADJUSTMENT WORM SCREW Part Number: 40262 |
$101.44 | View Part |
| CEAE37K-1 | 22 |
|
PIN FOR ADJUSTMENT SCREW E37K Part Number: 40263 |
$14.66 | View Part |
| CEAE37K-1 | 23 | ADJUSTING RING COFFEE GRINDER E37K TURNED (rev.C)
Part Number: 40265 |
|||
| CEAE37K-1 | 24 | STAINLESS STEEL SLIDE EXTENSION RING
Part Number: 40291 |
|||
| CEAE37K-1 | 25 | INTERNAL SPACER FOR STAINLESS STEEL SLIDE
Part Number: 40292 |
|||
| CEAE37K-1 | 26 | MAGNET d. 12x5 (SC35MA NI) Part Number: 45104 |
$8.70 | View Part | |
| CEAE37K-1 | 27 | M8 SPRING WASHER FOR IMPELLER
Part Number: 45131 |
|||
| CEAE37K-1 | 28 | SPRING WASHER LMKAS 10 Part Number: 45150 |
$5.48 | View Part | |
| CEAE37K-1 | 29 | TE SCREW M8X40 SX ZN Part Number: 45322 |
$11.67 | View Part | |
| CEAE37K-1 | 30 | NUT M12 X 0.8 (DIN xxx)
Part Number: 45323 |
|||
| CEAE37K-1 | 31 |
|
SPRING SCC SHEET E37K Part Number: 45521 |
$14.50 | View Part |
| CEAE37K-1 | 32 | TWO-POLE SWITCH OI M98 Part Number: 50108 |
$12.96 | View Part | |
| CEAE37K-1 | 33 | RELAY 110 V ES500 (FINDER 628281100300) Part Number: 50154 |
$49.66 | View Part | |
| CEAE37K-1 | 34 | CABLE LOCK PA107
Part Number: 50161 |
|||
| CEAE37K-1 | 35 |
|
USA PLUG CABLE SJT 18AWGX3C VW-1 3X1 2MT F4.8x0.8 Part Number: 50223 |
$24.52 | View Part |
| CEAE37K-1 | 36 | REED SAFETY E92 (A081 1V UL CEA01) Part Number: 50214 |
$40.07 | View Part | |
| CEAE37K-1 | 37 |
|
FAN FOR COFFEE GRINDER E92 80X80X38 (art. 80381ABWAD -HB) 110V Part Number: 50221 |
$12.90 | View Part |
| CEAE37K-1 | 38 | ALUMINUM CAPACITOR 20uF (MLR25 U 250V) UL DOUBLE F.6.3 TANG Part Number: 50180 |
$21.50 | View Part | |
| CEAE37K-1 | 39 | AMP. CIRCUIT BREAKER KLIXON 4CR670 Part Number: 50222 |
$87.66 | View Part | |
| CEAE37K-1 | 40 | RESISTANCE FOR CAPACITOR 180KOhm
Part Number: 50226 |
|||
| CEAE37K-1 | 41 | FAN THERMOSTAT 42/31 (3TE1NT01F-3567)
Part Number: 50236 |
|||
| CEAE37K-1 | 42 |
|
CAPACITIVE KEYBOARD E37S (D530015100) Part Number: 50271 |
$271.26 | View Part |
| CEAE37K-1 | 43 | SERIAL CABLE FOR CAPACITIVE KEYBOARD/CARD L=480mm (D503745200) Part Number: 50276 |
$16.50 | View Part | |
| CEAE37K-1 | 44 |
|
E37 2011 COFFEE GRINDER DATASHEET Part Number: 50286 |
$236.62 | View Part |
| CEAE37K-1 | 45 | ALUMINUM CAPACITOR 35uF (416272164 250V) SHANK Part Number: 50227 |
$39.00 | View Part | |
| CEAE37K-1 | 46 | WIRING E37K UL (rev.G)
Part Number: 50350 |
|||
| CEAE37K-1 | 47 | BLENDER JAR CAP Part Number: 70108 |
$52.10 | View Part | |
| CEAE37K-1 | 48 | RUBBER FEET D.40 Part Number: 70138 |
$9.44 | View Part | |
| CEAE37K-1 | 49 |
|
COFFEE BELL SHUTTER Part Number: 70145 |
$9.78 | View Part |
| CEAE37K-1 | 50 | COFFEE GRINDER BELL COVER Part Number: 70146 |
$15.36 | View Part | |
| CEAE37K-1 | 51 |
|
COFFEE TRAY SAUCER E37S/E92 Part Number: 70163 |
$24.90 | View Part |
| CEAE37K-1 | 52 | E92 SLIDE RUBBER
Part Number: 70165 |
|||
| CEAE37K-1 | 53 | RUBBER PLATE E37S Part Number: 70173 |
$9.40 | View Part | |
| CEAE37K-1 | 54 | E92 BELL SAFETY GRILLE Part Number: 70174 |
$10.66 | View Part | |
| CEAE37K-1 | 55 | PLASTIC ADJUSTMENT KNOB E37S
Part Number: 70240 |
|||
| CEAE37K-1 | 56 | REED RUBBER E92 (1266 CA01) Part Number: 75109 |
$6.99 | View Part | |
| CEAE37K-1 | 57 |
|
BOARD PIN E37S B210 (LCBS 5-01) Part Number: 75146 |
$5.38 | View Part |
| CEAE37K-1 | 58 | VIBRATION DAMPER M/F 15X15 (M5X15+M5 SH60)
Part Number: 75165 |
|||
| CEAE37K-1 | 59 |
|
GRINDER RING LOCKING KNOB SCREW (rev.A) Part Number: 75171 |
$10.90 | View Part |
| CEAE37K-1 | 60 | GRINDER FAN PIN (LCBS- 6-5-01) Part Number: 75173 |
$6.20 | View Part | |
| CEAE37K-1 | 61 |
|
WORM SCREW WASHER E37K Part Number: 75176 |
$8.54 | View Part |
| CEAE37K-1 | 62 | CHUTE COVER BUSH (10193BB01)
Part Number: 75181 |
|||
| CEAE37K-1 | 63 | E8 GRINDER RING GASKET
Part Number: 75530 |
|||
| CEAE37K-1 | 64 | RUBBER FILTER HOLDER SUPPORT 80sh
Part Number: 75548 |
|||
| CEAE37K-1 | 65 | E8 GRINDER BOX (24x39x62h)
Part Number: 80121 |
|||
| CEAE37K-1 | 66 | E37K KNOB SILKSCREEN PRINTING Part Number: 85130 |
$23.90 | View Part | |
| CEAE37K-1 | 67 | SCREEN PRINTING E37K RING
Part Number: 85131 |
|||
| CEAE37K-1 | 68 |
|
COMPLETE E92 COFFEE GRINDER BELL Part Number: 90177 |
$81.87 | View Part |
| CEAE37K-1 | 69 | E37S/E92 BUTTON KEY COMPLETE
Part Number: 90180 |
|||
| CEAE37K-1 | 70 | COMPLETE E37K COFFEE GRINDER HEAD
Part Number: 90294 |
|||
| CEAE37K-1 | PAIR OF CONICAL GRINDERS D.71
Part Number: 40223 |
||||
| CEAE37K-1 | 71 | PAIR OF CONICAL GRINDER KIT D.71 (40223)
Part Number: 90304 |
|||
| CEAE37K-1 | 72 | COMPLETE MICRO BRACKET FB E37K (rev.A)
Part Number: 90308 |
|||
| CEAE37K-1 | 73 | COMPLETE STAINLESS STEEL SLIDE E37T/E37K/E8D
Part Number: 90320 |
