ECM Casa V Part Diagram 80045
This is the ECM Casa V Part Diagram 80045. In the list below, you will find all the parts associated with the diagram that are available. Use the parts diagram to determine the part(s) you need.
If the part listed below is not viewable then we do not carry it at this time. However, if your machine is currently in production we are likely able to acquire the part directly from the manufacturer. In this case, contact us by submitting a support ticket. Please be advised that it may take up to eight weeks for us to receive the part from the manufacturer.
Please note: Parts are neither returnable nor refundable. If you need assistance selecting a part for your machine, please submit a support ticket.-
-
-
-
| Diagram # | Pos # | Image | Description | Price |
|---|
| Diagram # | Pos # | Image | Description | Price | |
|---|---|---|---|---|---|

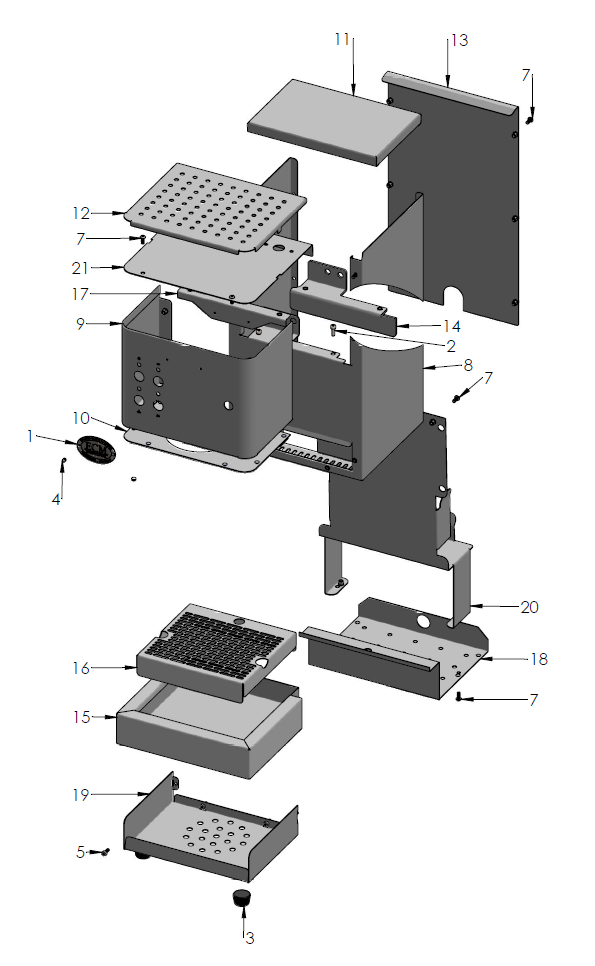

| 80045-1 | 1 | Emblem ECM
Part Number: 81200 |
|||
| 80045-1 | 2 | Screw cylinder M4x12
Part Number: B7819901 |
|||
| 80045-1 | 3 |
|
Foot Part Number: C439901215 |
$5.80 | View Part |
| 80045-1 | 4 | Blind rivet truss head 2,4x12
Part Number: P1998 |
|||
| 80045-1 | 5 |
|
Screw cylinder head M4x10 Part Number: P2006 |
$5.41 | View Part |
| 80045-1 | 6 | Flat washer M4
Part Number: P2009 |
|||
| 80045-1 | 7 |
|
Lens screw M4x10 Part Number: P2022 |
$5.37 | View Part |
| 80045-1 | 8 | Body Part Number: P9050 |
$81.92 | View Part | |
| 80045-1 | 9 | Upper front panel Part Number: P9051 |
$63.52 | View Part | |
| 80045-1 | 10 | Cover group
Part Number: P9052 |
|||
| 80045-1 | 11 | Lid watertank Part Number: P9053 |
$21.80 | View Part | |
| 80045-1 | 12 | Upper cup tray Part Number: P9054 |
$21.98 | View Part | |
| 80045-1 | 13 |
|
Rear panel Part Number: P9055 |
$21.84 | View Part |
| 80045-1 | 14 | Bracket brewing group
Part Number: P9056 |
|||
| 80045-1 | 15 | Drip tray
Part Number: P9057 |
|||
| 80045-1 | 16 | Grid Part Number: P9058 |
$25.68 | View Part | |
| 80045-1 | 17 | Bracket cup tray
Part Number: P9059 |
|||
| 80045-1 | 18 | Bottom plate
Part Number: P9060 |
|||
| 80045-1 | 19 | Bracket drip tray Part Number: P9061 |
$48.42 | View Part | |
| 80045-1 | 20 | Guide rail watertank
Part Number: P9062 |
|||
| 80045-1 | 21 | Lower cup tray
Part Number: P9063 |
|||

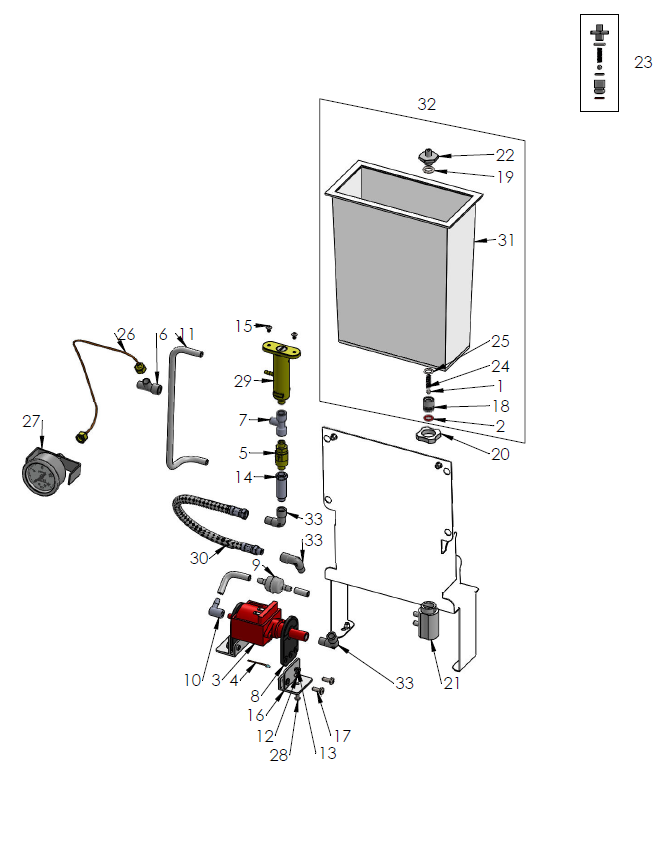

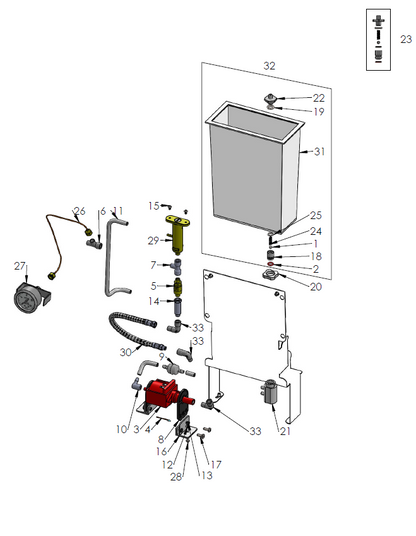

| 80045-2 | 1 |
|
Ball watertank lock Part Number: B5471509 |
$6.53 | View Part |
| 80045-2 | 2 |
|
Gasket watertank adapter lower Part Number: B7496076 |
$5.82 | View Part |
| 80045-2 | 3 | Vibration pump 230V / 50Hz
Part Number: C199900280 |
|||
| 80045-2 | Vibration pump 120V / 60Hz Part Number: US1001 |
$52.76 | View Part | ||
| 80045-2 | Vibration pump 100V red
Part Number: US1025 |
||||
| 80045-2 | 4 |
|
Heat sensor Pump Part Number: C199900969 |
$9.94 | View Part |
| 80045-2 | 5 | Non-return valve 1/8" MM Part Number: C229900548 |
$40.77 | View Part | |
| 80045-2 | 6 |
|
T-connector 1/8 MMF Part Number: C229900644 |
$11.00 | View Part |
| 80045-2 | 7 |
|
T-connector 1/8" FMF Part Number: C229900703 |
$16.06 | View Part |
| 80045-2 | 8 |
|
Upper bracket vibration pump Part Number: C249900770 |
$8.02 | View Part |
| 80045-2 | 9 |
|
Filter watertank Part Number: C439900695 |
$9.91 | View Part |
| 80045-2 | 10 |
|
Rubber elbow fitting Part Number: C449900709 |
$7.26 | View Part |
| 80045-2 | 11 | Silicon tube transparent 5x8
Part Number: C499900769 |
|||
| 80045-2 | 12 | Flat washer M4
Part Number: P2009 |
|||
| 80045-2 | 13 | Nut M4
Part Number: P2026 |
|||
| 80045-2 | 14 |
|
Extension 1/8"M 1/8"F 42mm Part Number: P2047 |
$7.54 | View Part |
| 80045-2 | 15 | Screw lens head M4x6
Part Number: P2055 |
|||
| 80045-2 | 16 | Lower bracket vibration pump Part Number: P3006.K |
$10.60 | View Part | |
| 80045-2 | 17 | Screw for bracket 4,8x13mm
Part Number: P3019 |
|||
| 80045-2 | 18 | Water tank valve
Part Number: P6017.N |
|||
| 80045-2 | 19 | Gasket watertank adapter upper
Part Number: P6020.3 |
|||
| 80045-2 | 20 |
|
Water tank adapter nut M20 Part Number: P6020.K3 |
$8.98 | View Part |
| 80045-2 | 21 |
|
Water tank adapter M20 Part Number: P6020.K4 |
$8.98 | View Part |
| 80045-2 | 22 | Watertank adapter mounting nut
Part Number: P6020.N |
|||
| 80045-2 | 23 | Water tank adapter complete Part Number: P6020.NK |
$28.43 | View Part | |
| 80045-2 | 24 |
|
Spring water tank lock Part Number: P6023 |
$7.76 | View Part |
| 80045-2 | 25 |
|
Gasket water tank adapter middle Part Number: P6025 |
$5.22 | View Part |
| 80045-2 | 26 |
|
Capillary tube Part Number: P6051 |
$18.43 | View Part |
| 80045-2 | 27 | Pump pressure gauge
Part Number: P6055 |
|||
| 80045-2 | 28 | Lens head screw M4x8
Part Number: P6114 |
|||
| 80045-2 | 29 | Expansion valve Part Number: P7000 |
$72.06 | View Part | |
| 80045-2 | 30 |
|
Flex hose 1/8"M 1/8"F l=180mm Part Number: P8012 |
$15.68 | View Part |
| 80045-2 | 31 | Watertank blank Part Number: P9010 |
$38.35 | View Part | |
| 80045-2 | 32 | Watertank complete Part Number: P9010.K2 |
$58.82 | View Part | |
| 80045-2 | 33 | Elbow 1/8" MF Part Number: P9014 |
$16.97 | View Part | |

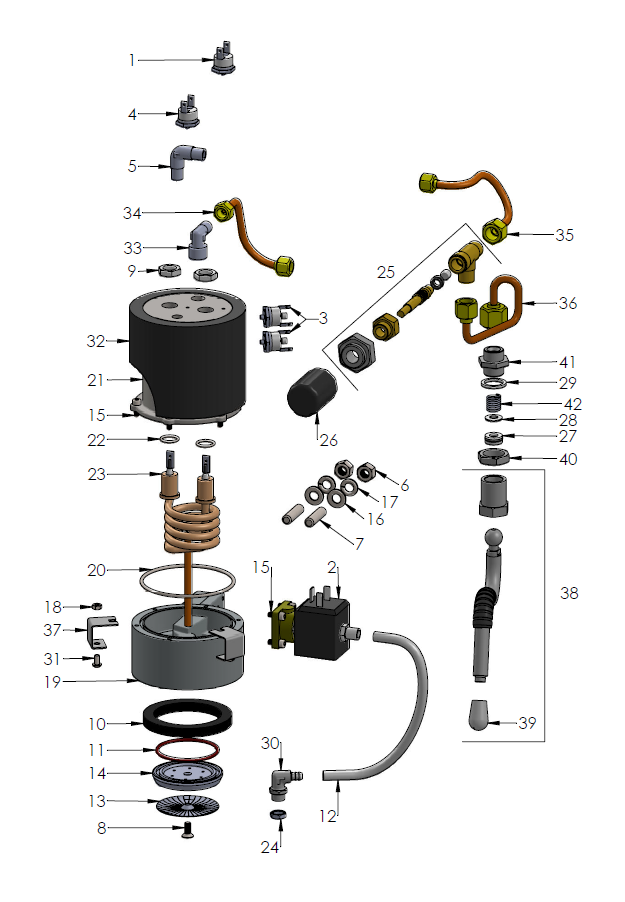

| 80045-3 | 1 | Coffee thermostat 104C
Part Number: C100001815 |
|||
| 80045-3 | 2 | Solenoid valve 230V 3 ways
Part Number: C199900226 |
|||
| 80045-3 | Solenoid valve 110V 3 ways
Part Number: US1014 |
||||
| 80045-3 | 3 |
|
Safety thermostat 165C Part Number: C199901549 |
$27.51 | View Part |
| 80045-3 | 4 |
|
Steam thermostat 135C Part Number: C199901550 |
$34.56 | View Part |
| 80045-3 | 5 | Elbow 1/8"M 1/8"M Part Number: C229900579 |
$11.69 | View Part | |
| 80045-3 | 6 |
|
Hex nut M8 Part Number: C309900127 |
$5.34 | View Part |
| 80045-3 | 7 |
|
Allen screw M8 x 31 Part Number: C309900131 |
$5.88 | View Part |
| 80045-3 | 8 |
|
Screw flat head shower M5x12 Part Number: C319900134 |
$5.48 | View Part |
| 80045-3 | 9 |
|
Nut (half) 1/4" Part Number: C329900682 |
$5.82 | View Part |
| 80045-3 | 10 | Group gasket h=7,8 Part Number: C449900230 |
$12.50 | View Part | |
| 80045-3 | 11 |
|
Gasket shower plate Part Number: C449900790 |
$13.89 | View Part |
| 80045-3 | 12 | Silicon tube transparent 5x8
Part Number: C499900769 |
|||
| 80045-3 | 13 |
|
Shower plate ring brew group Part Number: C519900102 |
$12.60 | View Part |
| 80045-3 | 14 | Shower holder ring brew group Part Number: C529900550 |
$27.37 | View Part | |
| 80045-3 | 15 |
|
Screw cylinder head M4x10 Part Number: P2006 |
$5.41 | View Part |
| 80045-3 | 16 | Washer M8
Part Number: P2010 |
|||
| 80045-3 | 17 |
|
Spring ring M8 Part Number: P2011 |
$5.61 | View Part |
| 80045-3 | 18 | Nut M4
Part Number: P2026 |
|||
| 80045-3 | 19 |
|
Ring brewing group Part Number: P2042.1 |
$102.90 | View Part |
| 80045-3 | 20 |
|
Gasket coffee boiler Part Number: P2042.2 |
$8.99 | View Part |
| 80045-3 | 21 | Boiler
Part Number: P2042.4 |
|||
| 80045-3 | 22 |
|
Gasket heater Part Number: P2042.5 |
$8.00 | View Part |
| 80045-3 | 23 | Heating element coffee boiler 230V/1200W
Part Number: P2042.9 |
|||
| 80045-3 | Heating element coffee boiler 110V/1200W Part Number: US1011 |
$53.43 | View Part | ||
| 80045-3 | 24 |
|
Half nut 1/8 Part Number: P2067 |
$6.20 | View Part |
| 80045-3 | 25 | Valve Part Number: P2550 |
$37.50 | View Part | |
| 80045-3 | 26 | Lever
Part Number: P2551 |
|||
| 80045-3 | 27 |
|
Socket Teflon Part Number: P6010 |
$6.94 | View Part |
| 80045-3 | 28 |
|
Washer socket Part Number: P6012 |
$5.35 | View Part |
| 80045-3 | 29 |
|
Gasket nut valve Part Number: P6015 |
$6.67 | View Part |
| 80045-3 | 30 | Elbow L 1/4" x 6
Part Number: P6057 |
|||
| 80045-3 | 31 | Lens head screw M4x8
Part Number: P6114 |
|||
| 80045-3 | 32 | Isolation coffee boiler
Part Number: P7060 |
|||
| 80045-3 | 33 |
|
Elbow 1/4"M - 1/8"M Part Number: P9015 |
$14.56 | View Part |
| 80045-3 | 34 | Boiler filling tube
Part Number: P9047 |
|||
| 80045-3 | 35 | Tube boiler valve
Part Number: P9048 |
|||
| 80045-3 | 36 |
|
Tube valve steam/hot water pipe Part Number: P9049 |
$18.38 | View Part |
| 80045-3 | 37 | Bracket boiler
Part Number: P9064 |
|||
| 80045-3 | 38 |
|
Steam wand Part Number: P9115 |
$33.94 | View Part |
| 80045-3 | 39 | Steam nozzle 2 holes
Part Number: P9115.2 |
|||
| 80045-3 | Steam nozzle 3 holes
Part Number: P6002.7 |
||||
| 80045-3 | Steam nozzle 4 holes
Part Number: P6002.6 |
||||
| 80045-3 | Steam nozzle 5 holes
Part Number: P6002.3 |
||||
| 80045-3 | 40 | Hex nut
Part Number: P9115.3 |
|||
| 80045-3 | 41 |
|
Connection straight fitting Part Number: P9115.5 |
$33.94 | View Part |
| 80045-3 | 42 | Spring steam-/hot water valve
Part Number: P9115.6 |
|||

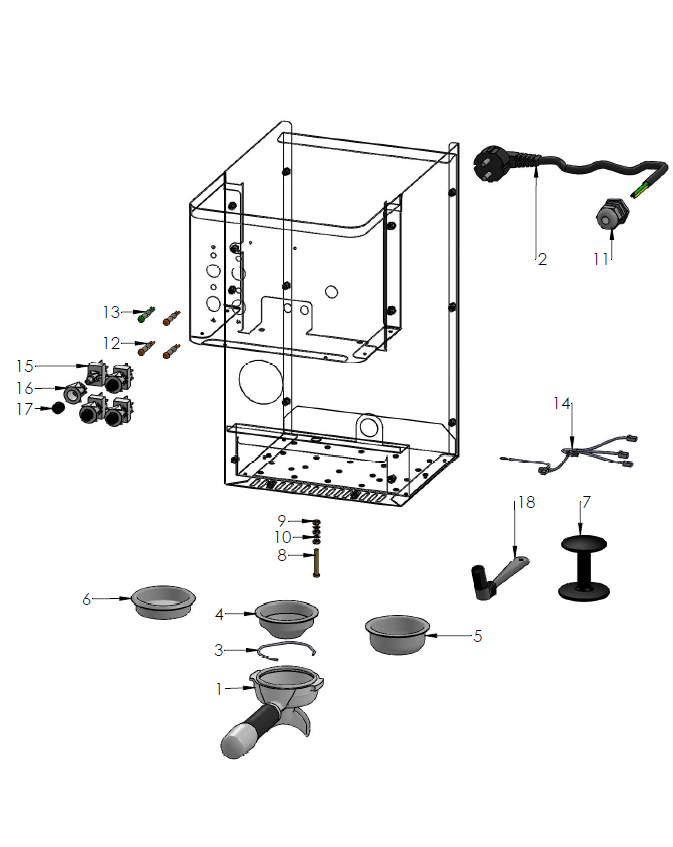

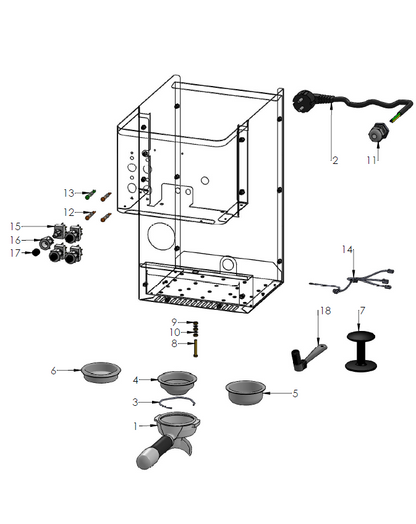

| 80045-4 | 1 | Portafilter 2 outlets mini Part Number: 89423 |
$67.99 | View Part | |
| 80045-4 | 2 | Power cable schuko plug
Part Number: C199900957 |
|||
| 80045-4 | Power cable US plug Part Number: P2034 |
$16.88 | View Part | ||
| 80045-4 | Power cable UK plug
Part Number: P2035 |
||||
| 80045-4 | Power cable AU plug
Part Number: P2036 |
||||
| 80045-4 | 3 | Locking spring portafilter
Part Number: C619900098 |
|||
| 80045-4 | 4 | Cup filter 7g
Part Number: C619900104 |
|||
| 80045-4 | 5 |
|
Cup filter 14g Part Number: C619900105 |
$22.86 | View Part |
| 80045-4 | 6 | Blind filter Part Number: C619900106 |
$14.16 | View Part | |
| 80045-4 | 7 | Tamper plastic
Part Number: C639900764 |
|||
| 80045-4 | 8 | Screw M4x30 Brass
Part Number: P2001 |
|||
| 80045-4 | 9 | Nut M4 Brass
Part Number: P2002 |
|||
| 80045-4 | 10 | Toothed washer M4
Part Number: P2004 |
|||
| 80045-4 | 11 | Cable clip with hexagon nut Part Number: P2070 |
$8.57 | View Part | |
| 80045-4 | 12 |
|
Control lamp orange Part Number: P9108 |
$9.84 | View Part |
| 80045-4 | 13 |
|
Control lamp green Part Number: P9109 |
$9.84 | View Part |
| 80045-4 | 14 | Cable loom
Part Number: P9110 |
|||
| 80045-4 | 15 | Switch
Part Number: P9111 |
|||
| 80045-4 | 16 | Button bracket
Part Number: P9112 |
|||
| 80045-4 | 17 | Button
Part Number: P9113 |
|||
| 80045-4 | 18 |
|
Cleaning brush Part Number: R210 |
$10.46 | View Part |
