Gaggia Classic Pro Colors Part Diagram EG1002
This is the Gaggia Classic Pro Colors Parts Diagram EG1002. In the list below, you will find all the parts associated with the diagram that are available. Use the parts diagram to determine the part(s) you need.
If the part listed below is not viewable then we do not carry it at this time. However, if your machine is currently in production we are likely able to acquire the part directly from the manufacturer. In this case, contact us by submitting a support ticket. Please be advised that it may take up to eight weeks for us to receive the part from the manufacturer.
Please note: Parts are neither returnable nor refundable. If you need assistance selecting a part for your machine, please contact us.
-
-
| Diagram # | Pos # | Image | Description | Price |
|---|
| Diagram # | Pos # | Image | Description | Price | |
|---|---|---|---|---|---|

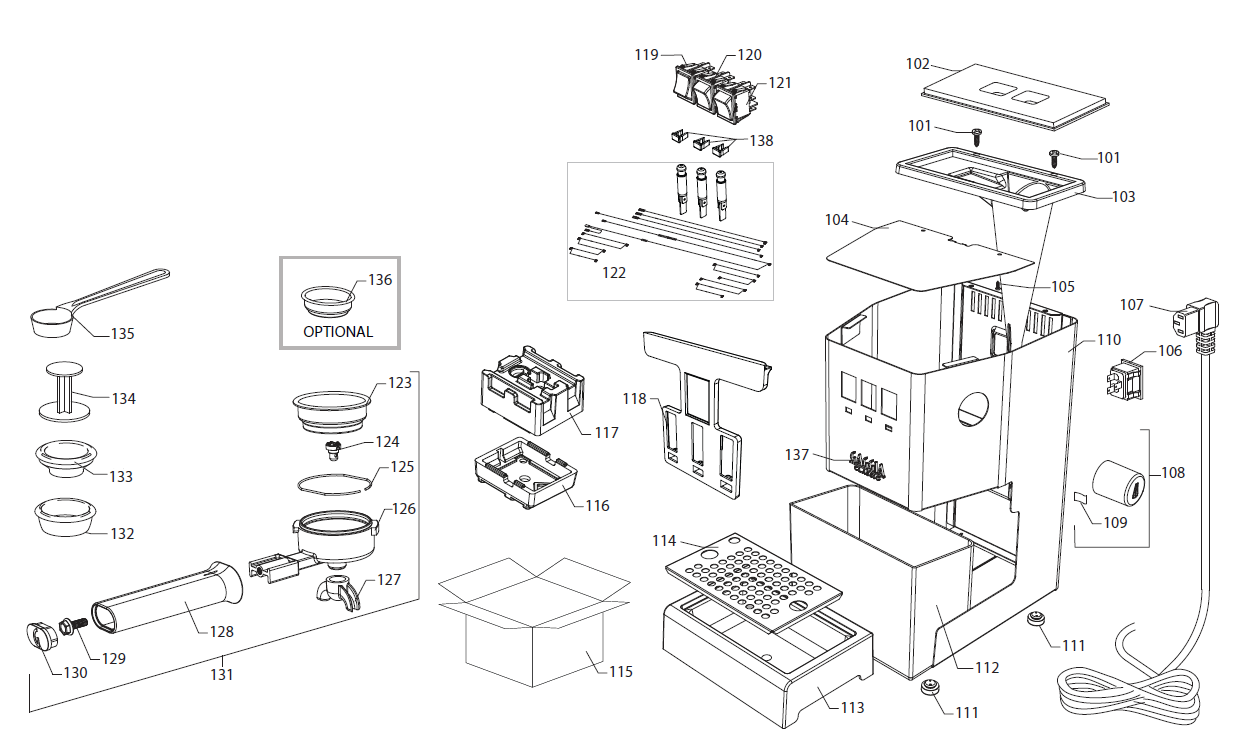

| EG1002-1 | 101 | SCREW TCB 3,5X9,5 DIN 7981 INOX A2
Part Number: 421946504681 |
|||
| EG1002-1 | 102 | LID NEW CLASSIC 2019
Part Number: 421946500141 |
|||
| EG1002-1 | 103 | FUNNEL NEW CLASSIC 2019 Part Number: 421946500171 |
$13.44 | View Part | |
| EG1002-1 | 104 |
|
TOP COVER V2 W/O HOLES Part Number: 421944026211 |
$18.32 | View Part |
| EG1002-1 | 105 |
|
STAIN STEEL 2,9X6,5THREAD SCRE Part Number: 996530054164 |
$5.64 | View Part |
| EG1002-1 | 106 |
|
CUP SOCKET EN 60320 C 13 Part Number: 996530007788 Notes: 220-230V |
$10.80 | View Part |
| EG1002-1 | CUP SOCKET V3 EN 60320 C 13 Part Number: 996530072437 Notes: 120V |
$9.64 | View Part | ||
| EG1002-1 | 107 | BLACK POWER CABLE SCHUKO L=1200MM
Part Number: 996530025808 |
|||
| EG1002-1 |
|
BLK POWER CABLE SJT3 USA UL L=1200 Part Number: 996530025843 |
$15.72 | View Part | |
| EG1002-1 | BLK POWER CABLE KOREA L=1200
Part Number: 996530001089 |
||||
| EG1002-1 | 108 |
|
STEAM KNOB ASSEMBLY Part Number: 996530053249 |
$17.68 | View Part |
| EG1002-1 | 109 |
|
SS SPRING FOR KNOB TYMER Part Number: 996530054358 |
$6.16 | View Part |
| EG1002-1 | 110 | RED CASING W/FEET CLASSIC V3 ASSY.
Part Number: 421946501791 Notes: RI9480/12-RI9380/09 |
|||
| EG1002-1 | WHITE CASING W/FEET CLASSIC V3 ASSY.
Part Number: 421946501801 Notes: RI9480/13-RI9380/07 |
||||
| EG1002-1 | BLACK CASING W/FEET CLASSIC V3 ASSY.
Part Number: 421946501811 Notes: RI9480/14-RI9380/08 |
||||
| EG1002-1 | BLUE CASING W/FEET CLASSIC V3 ASSY.
Part Number: 421946501821 Notes: RI9480/15-RI9380/10 |
||||
| EG1002-1 | GREY CASING W/FEET CLASSIC V3 ASSY.
Part Number: 421946501831 Notes: RI9480/16-RI9380/11 |
||||
| EG1002-1 |
|
RED CASING W/FEET CLASSIC V3 UL ASSY. Part Number: 421946502001 Notes: RI9380/47 |
$199.99 | View Part | |
| EG1002-1 | WHITE CASING W/FEET CLASSIC V3 UL ASSY Part Number: 421946502011 Notes: RI9380/48 |
$199.99 | View Part | ||
| EG1002-1 |
|
BLACK CASING W/FEET CLASSIC V3 UL ASSY. Part Number: 421946502021 Notes: RI9380/49 |
$199.99 | View Part | |
| EG1002-1 | BLU CASING W/FEET CLASSIC V3 UL ASSY. Part Number: 421946502031 Notes: RI9380/50 |
$199.99 | View Part | ||
| EG1002-1 | GREY CASING W/FEET CLASSIC V3 UL ASSY. Part Number: 421946502041 Notes: RI9380/51 |
$199.99 | View Part | ||
| EG1002-1 | 111 |
|
BLACK RUBBER FOOT Part Number: 996530052943 |
$6.52 | View Part |
| EG1002-1 | 112 |
|
TRANSPARENT WATER TANK S/SCREEN Part Number: 996530053223 |
$31.14 | View Part |
| EG1002-1 | 113 |
|
DRIP TRAY V2 Part Number: 421944088351 |
$23.44 | View Part |
| EG1002-1 | 114 |
|
GRID Part Number: 996530053226 |
$42.99 | View Part |
| EG1002-1 | 115 |
Part Number: NOT AVAILABLE |
|||
| EG1002-1 | 116 | PS-E LOWER INTERNAL PACKING CLASSIC
Part Number: 996530053385 |
|||
| EG1002-1 | 117 | PS-E UPPER INTERNAL PACKING CLASSIC
Part Number: 996530053386 |
|||
| EG1002-1 | 118 |
|
COVER FIXING BRACKET V3 Part Number: 421944093041 |
$10.30 | View Part |
| EG1002-1 | 119 | BLK ON-OFF BUTTON CLASSIC V2 LSB S/SCR.
Part Number: 421944090531 Notes: 230V |
|||
| EG1002-1 | BLK ON-OFF BUTTON CLASSIC V2 S/SCR. Part Number: 421944090521 Notes: 120-220V |
$18.16 | View Part | ||
| EG1002-1 | 120 | BLK COFF.BUTTON CLASSIC V2 S/SCR. Part Number: 421944090541 |
$10.44 | View Part | |
| EG1002-1 | 121 | BLK STEAM BUTTON CLASSIC V2 S/SCR.
Part Number: 421944090551 |
|||
| EG1002-1 | 122 | WIRING REV.2 CLASSIC S.O. ASSY
Part Number: 421946046262 Notes: 230V |
|||
| EG1002-1 |
|
WIRING CLASSIC V2 ASSY Part Number: 421946046271 Notes: 120V |
$79.99 | View Part | |
| EG1002-1 | WIRING REV.2 CLASSIC ASSY
Part Number: 421946046282 Notes: 220V |
||||
| EG1002-1 | 123 | PERFECT CREMA FILTER D.0,6 MM.
Part Number: 996530004004 |
|||
| EG1002-1 | 124 |
|
BLACK TWO WAY PIN Part Number: 996530036551 |
$5.82 | View Part |
| EG1002-1 | 125 | RETAINING - FILTER SPRING Part Number: 996530047192 |
$5.76 | View Part | |
| EG1002-1 | 126 | TRIV.CHROME/BRASS FILT.HOLDER CUP TG
Part Number: 421946504471 |
|||
| EG1002-1 | 127 | 2-WAY SPOUT TRIV. CHROME TG
Part Number: 421946504481 |
|||
| EG1002-1 | 128 |
|
KNOB FILTER HOLDER Part Number: 996530037144 |
$8.08 | View Part |
| EG1002-1 | 129 |
|
GALV.SPECIAL SCREW M6X16 Part Number: 996530063942 |
$5.20 | View Part |
| EG1002-1 | 130 |
|
CHROM. CAP KNOB FILTER HOLDER Part Number: 421944090761 |
$9.44 | View Part |
| EG1002-1 | 131 | FILTER BASKET TRIV. CHROME ASSY TG
Part Number: 421946504531 |
|||
| EG1002-1 | 132 |
|
TWO CUPS FILTER 12/14 GRS. Part Number: 996530059134 |
$10.95 | View Part |
| EG1002-1 | 133 |
|
1-CUP FILTER 5.5/6.5 GRS. Part Number: 996530059133 |
$13.99 | View Part |
| EG1002-1 | 134 |
|
SEPARATOR Part Number: 996530063423 |
$5.90 | View Part |
| EG1002-1 | 135 |
|
MEASURE Part Number: 996530063928 |
$9.56 | View Part |
| EG1002-1 | 136 |
|
PERFECT CREMA FILTER Part Number: 996530006133 |
$20.16 | View Part |
| EG1002-1 | 137 |
Part Number: NOT AVAILABLE |
|||
| EG1002-1 | 138 | RED RECTANGULAR LENS CLASSIC V2
Part Number: 421944091431 |
|||

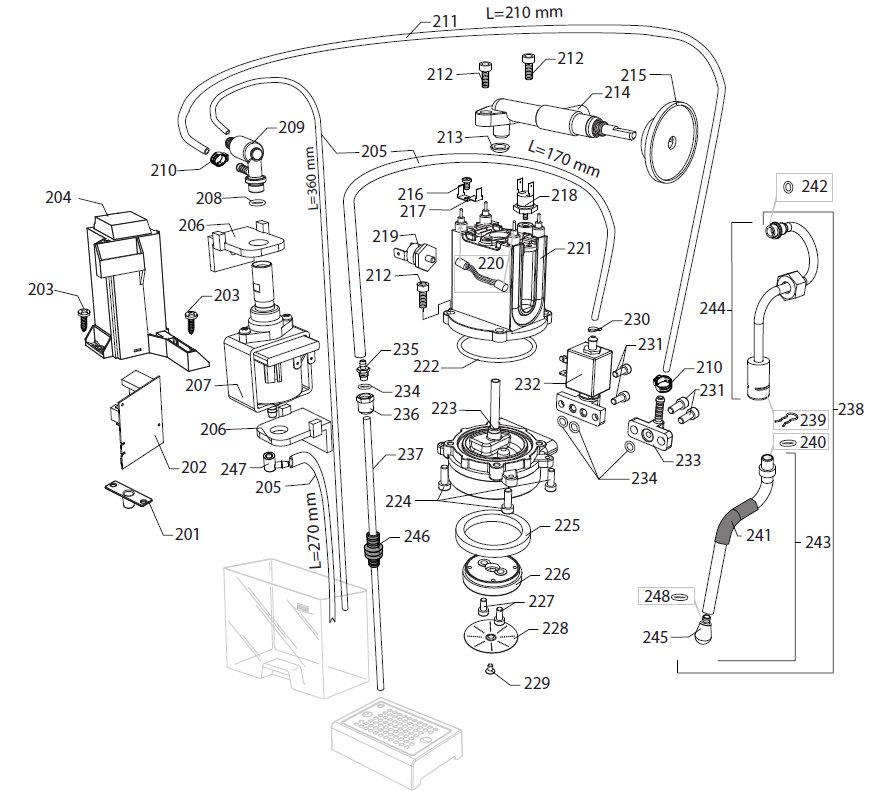

| EG1002-2 | 201 | PUMP-CPU/PWR BOARD SUPP.CAP CLASSIC SO
Part Number: 421944026351 Notes: 230V |
|||
| EG1002-2 | 202 | CPU+SW ECO-SWITCH RELE 20MIN 230V ASSY
Part Number: 421941312261 Notes: 230V |
|||
| EG1002-2 | 203 |
|
SELF-T.SCREWS 3.5X9.5 NICKEL-PLATED Part Number: 996530054154 |
$6.16 | View Part |
| EG1002-2 | 204 |
|
PUMP + CPU/PWR BOARD SUPPORT CLASSIC SO Part Number: 996530073941 |
$12.80 | View Part |
| EG1002-2 | 205 |
|
TRANSP.SILICONE TUBE 5X9 65SH Part Number: 996530018281 Notes: IN ROLL |
$16.38 | View Part |
| EG1002-2 | 206 | BLACK PUMP SUPPORT TYPE ULKA
Part Number: 996530017711 |
|||
| EG1002-2 | 207 | ULKA PUMP EP5FMGW
Part Number: 421941305991 Notes: 230V-50HZ |
|||
| EG1002-2 | ULKA PUMP EFP5/S
Part Number: 421944081531 Notes: 120V-60HZ |
||||
| EG1002-2 | ULKA PUMP EP5/S GW
Part Number: 996530007782 Notes: 220V-60HZ |
||||
| EG1002-2 | 208 | O-RING 2031 TERMOIL
Part Number: 996530013471 |
|||
| EG1002-2 | 209 |
|
L-F/BR.SAFETY VALVE 11 BAR ASSY. Part Number: 421944028581 |
$17.84 | View Part |
| EG1002-2 | 210 | OETIKER CLAMP D EQUALS 9 5 15400022
Part Number: 996530007742 |
|||
| EG1002-2 | 211 |
|
PINK 5X8,9 SILICONE TUBE Part Number: 996530009505 |
$16.99 | View Part |
| EG1002-2 | 212 |
|
6X16 GALV. SCREW Part Number: 996530062189 |
$5.48 | View Part |
| EG1002-2 | 213 |
|
O-RING 112 IN EPDM 70�SH Part Number: 996530054245 |
$5.51 | View Part |
| EG1002-2 | 214 | BRASS 57 TM4 FAUCET ASSY.
Part Number: 421946500241 |
|||
| EG1002-2 | 215 |
|
PROTECTION Part Number: 996530052926 |
$12.49 | View Part |
| EG1002-2 | 216 |
|
SCREW M 4X5 GALV.W/KNURLED HEAD Part Number: 996530055023 |
$6.16 | View Part |
| EG1002-2 | 217 |
|
BRACKET FOR THERMOFUSE Part Number: 996530056298 |
$7.06 | View Part |
| EG1002-2 | 218 |
|
STEAM TEMPERATURE SWITCH Part Number: 996530054612 Notes: RI9380 |
$15.32 | View Part |
| EG1002-2 | THERMOSTAT 145�C M4X0.7 PLASTIC CASE
Part Number: 421946504771 Notes: RI9480 |
||||
| EG1002-2 | 219 |
|
COFFEE TEMPERATURE SWITCH Part Number: 996530054556 Notes: RI9380 |
$12.56 | View Part |
| EG1002-2 | THERMOSTAT 107�C M4X0.7 PLASTIC CASE
Part Number: 421946504761 Notes: RI9480 |
||||
| EG1002-2 | 220 | CAB. 1 WIRE SILIC. GREY 70MM
Part Number: 421946046321 Notes: 220-230V |
|||
| EG1002-2 | 221 |
|
ALUM.BOILER 120/220/230/240 V ASSY. Part Number: 996530055406 |
$35.14 | View Part |
| EG1002-2 | 222 |
|
O-RING 167 IN EPDM 70�SH Part Number: 996530054246 |
$7.54 | View Part |
| EG1002-2 | 223 | TRIV. CHRO GROUP BODY + DIP TUBE TG
Part Number: 421946504551 Notes: All US excluded |
|||
| EG1002-2 | STECHROM GROUP BODY + DIP TUBE
Part Number: 421944090841 Notes: Only US |
||||
| EG1002-2 | 224 |
|
5X12 S.S. SCREW Part Number: 996530062179 |
$5.42 | View Part |
| EG1002-2 | 225 | FILTER HOLDER SILICONE GASKET
Part Number: 421946504641 |
|||
| EG1002-2 | 226 | AISI SHOWER HOLDER
Part Number: 421946502701 Notes: All KR excluded |
|||
| EG1002-2 | POLISHED ALUM/AISI SHOWER HOLDER ASSY
Part Number: 421945001971 Notes: Only KR |
||||
| EG1002-2 | 227 |
|
6X12 S.S. SCREW Part Number: 996530062187 |
$5.90 | View Part |
| EG1002-2 | 228 |
|
SHOWER Part Number: 996530054322 |
$10.95 | View Part |
| EG1002-2 | 229 | SCREW TSP M5X8 UNI 7688 DIN 965 INOX
Part Number: 996530054229 |
|||
| EG1002-2 | 230 | TUBE-TIGHTENING CLAMP D=9.8/10.6
Part Number: 996530059832 |
|||
| EG1002-2 | 231 |
|
5X12 GALV. SCREW Part Number: 996530062182 |
$5.42 | View Part |
| EG1002-2 | 232 | BRASS 57 SOLENOID VALVE V2
Part Number: 421944093701 Notes: 220-230V |
|||
| EG1002-2 |
|
BRASS 57 SOLENOID VALVE V2 Part Number: 421944093711 Notes: 120V |
$54.66 | View Part | |
| EG1002-2 | 233 | BRASS 57 INLET CONNECTOR Part Number: 421944093241 |
$20.49 | View Part | |
| EG1002-2 | 234 |
|
Gasket OR 2025 Part Number: 996530063887 |
$6.44 | View Part |
| EG1002-2 | 235 |
|
OUTLET FITTING - RUBBER Part Number: 996530053238 |
$6.50 | View Part |
| EG1002-2 | 236 | NUT FOR OUTLET FITTING Part Number: 996530053239 |
$7.42 | View Part | |
| EG1002-2 | 237 |
|
OUTLET TUBING Part Number: 996530053235 |
$11.25 | View Part |
| EG1002-2 | 238 | STEAM UPP /LOW TUBE ASSY.
Part Number: 421944090571 |
|||
| EG1002-2 | 239 |
|
FORK SPRING FOR VALVE P0049 Part Number: 996530002744 |
$5.94 | View Part |
| EG1002-2 | 240 |
|
OR ORM 0080-20 IN SILICONE PTFE FDA Part Number: 996530013445 |
$5.32 | View Part |
| EG1002-2 | 241 | RUBBER BURN BLOCKS 8X40
Part Number: 421944091401 |
|||
| EG1002-2 | 242 | OR 2018 IN VITON 70SH Part Number: 996530063888 Notes: not included in 238 |
$5.64 | View Part | |
| EG1002-2 | 243 | AISI STEAM LOWER TUBE ASSY V2
Part Number: 421944090582 |
|||
| EG1002-2 | 244 | STEAM UPPER TUBE ASSY. Part Number: 421944088631 |
$57.06 | View Part | |
| EG1002-2 | 245 |
|
2 HOLE STEAM SPRAYER Part Number: 421944091411 |
$24.60 | View Part |
| EG1002-2 | 246 |
|
RUBBER BURN BLOCKS 6X32 Part Number: 421944093511 |
$10.24 | View Part |
| EG1002-2 | 247 | 90° INLET CONNECTOR PUMP
Part Number: 996530017348 |
|||
| EG1002-2 | 248 |
|
OR D = 5x1,2 MM SILICONE FDA Part Number: 421946504621 |
$5.12 | View Part |
