Gaggia Classic Pro Stainless Steel Part Diagram EG1001
This is the Gaggia Classic Pro Parts Diagram EG1001. In the list below, you will find all the parts associated with the diagram that are available. Use the parts diagram to determine the part(s) you need.
If the part listed below is not viewable then we do not carry it at this time. However, if your machine is currently in production we are likely able to acquire the part directly from the manufacturer. In this case, contact us by submitting a support ticket. Please be advised that it may take up to eight weeks for us to receive the part from the manufacturer.
Please note: Parts are neither returnable nor refundable. If you need assistance selecting a part for your machine, please submit a support ticket.-
-
| Diagram # | Pos # | Image | Description | Price |
|---|
| Diagram # | Pos # | Image | Description | Price | |
|---|---|---|---|---|---|

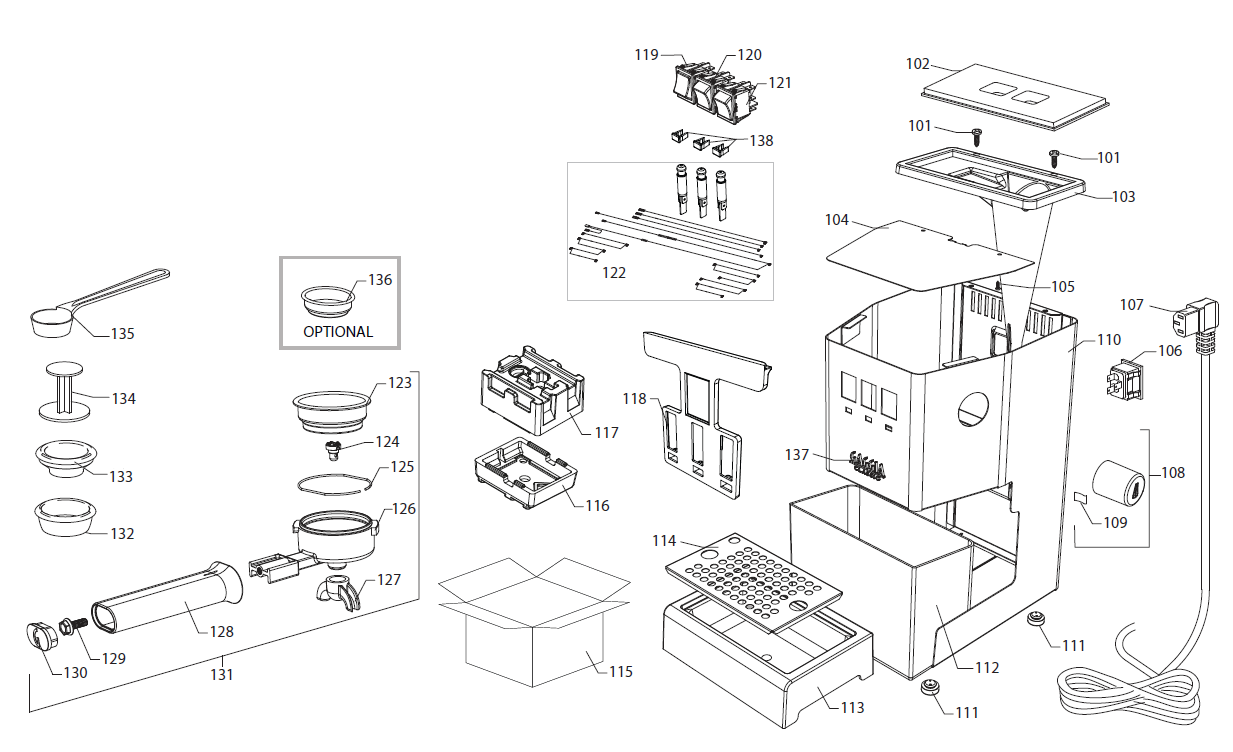

| EG1001-1 | 101 |
|
SELF-T.SCREWS 3.5X9.5 NICKEL-PLATED Part Number: 996530054154 |
$6.16 | View Part |
| EG1001-1 | 102 |
|
LID Part Number: 996530053225 |
$7.08 | View Part |
| EG1001-1 | 103 | FUNNEL V2 Part Number: 421944036461 |
$13.44 | View Part | |
| EG1001-1 | 104 | TOP COVER V2 W/O HOLES Part Number: 421944026211 |
$17.99 | View Part | |
| EG1001-1 | 105 |
|
STAIN STEEL 2,9X6,5THREAD SCRE Part Number: 996530054164 |
$5.64 | View Part |
| EG1001-1 | 106 |
|
CUP SOCKET EN 60320 C 13 Part Number: 996530007788 Notes: 220-230-240V |
$10.80 | View Part |
| EG1001-1 | CUP SOCKET V3 EN 60320 C 13 Part Number: 996530072437 Notes: 100-120V |
$9.64 | View Part | ||
| EG1001-1 | 107 | BLACK POWER CABLE SCHUKO L=1200MM
Part Number: 996530025808 Notes: RI9480/11 |
|||
| EG1001-1 | BLK POWER CABLE UK L=1200
Part Number: 996530025882 Notes: RI9480/18 |
||||
| EG1001-1 |
|
BLK POWER CABLE SJT3 USA UL L=1200 Part Number: 996530025843 Notes: RI9380/46 |
$15.72 | View Part | |
| EG1001-1 | BLK POWER CABLE KOREA L=1200
Part Number: 996530001089 Notes: RI9380/06 |
||||
| EG1001-1 | BLK POWER CABLE VCTF JAPPON L=1200
Part Number: 996530009632 Notes: RI9380/40 |
||||
| EG1001-1 | BLK POWER CABLE AUSTRALIA V2 L=1200
Part Number: 421946041741 Notes: RI9380/03 |
||||
| EG1001-1 | 108 |
|
STEAM KNOB ASSEMBLY Part Number: 996530053249 |
$17.68 | View Part |
| EG1001-1 | 109 |
|
SS SPRING FOR KNOB TYMER Part Number: 996530054358 |
$6.16 | View Part |
| EG1001-1 | 110 | SB/SS CASING W/FEET CLASSIC V2 ASSY.
Part Number: 421944088721 |
|||
| EG1001-1 | SB/SS CASING W/FEET CLASSIC V2 UL ASSY. Part Number: 421944091051 Notes: ONLY RI9380/46 |
$151.47 | View Part | ||
| EG1001-1 | 111 |
|
BLACK RUBBER FOOT Part Number: 996530052943 |
$5.88 | View Part |
| EG1001-1 | 112 |
|
TRANSPARENT WATER TANK S/SCREEN Part Number: 996530053223 |
$31.14 | View Part |
| EG1001-1 | 113 |
|
DRIP TRAY V2 Part Number: 421944088351 |
$23.44 | View Part |
| EG1001-1 | 114 | GRID
Part Number: 996530053226 |
|||
| EG1001-1 | 115 | DISPLAY BOX V3 GAG CLASSIC
Part Number: 421944090901 |
|||
| EG1001-1 | 116 | PS-E LOWER INTERNAL PACKING CLASSIC
Part Number: 996530053385 |
|||
| EG1001-1 | 117 | PS-E UPPER INTERNAL PACKING CLASSIC
Part Number: 996530053386 |
|||
| EG1001-1 | 118 | COVER FIXING BRACKET V3
Part Number: 421944093041 |
|||
| EG1001-1 | 119 | BLK ON-OFF BUTTON CLASSIC V2 LSB S/SCR.
Part Number: 421944090531 Notes: RI9480 |
|||
| EG1001-1 | BLK ON-OFF BUTTON CLASSIC V2 S/SCR.
Part Number: 421944090521 Notes: RI9380 |
||||
| EG1001-1 | 120 | BLK COFF.BUTTON CLASSIC V2 S/SCR.
Part Number: 421944090541 |
|||
| EG1001-1 | 121 | BLK STEAM BUTTON CLASSIC V2 S/SCR.
Part Number: 421944090551 |
|||
| EG1001-1 | 122 | WIRING CLASSIC V2 S.O. 230V ASSY
Part Number: 421946046261 Notes: RI9480 |
|||
| EG1001-1 | WIRING CLASSIC V2 100-120V ASSY
Part Number: 421946046271 Notes: RI9380/40-46 |
||||
| EG1001-1 | WIRING CLASSIC V2 220-230V ASSY.
Part Number: 421946046281 Notes: RI9380/03-06 |
||||
| EG1001-1 | 123 | PERFECT CREMA FILTER D.0,6 MM.
Part Number: 996530004004 |
|||
| EG1001-1 | 124 | BLACK TWO WAY PIN
Part Number: 996530036551 |
|||
| EG1001-1 | 125 | RETAINING - FILTER SPRING
Part Number: 996530047192 |
|||
| EG1001-1 | 126 | STECHROM/BRASS FILTER HOLDER CUP
Part Number: 421944090771 |
|||
| EG1001-1 | 127 | 2-WAY SPOUT STECHROM
Part Number: 421944090781 |
|||
| EG1001-1 | 128 | KNOB FILTER HOLDER
Part Number: 996530037144 |
|||
| EG1001-1 | 129 | GALV.SPECIAL SCREW M6X16
Part Number: 996530063942 |
|||
| EG1001-1 | 130 | CHROM. CAP KNOB FILTER HOLDER
Part Number: 421944090761 |
|||
| EG1001-1 | 131 | FILTER BASKET STECHROM ASSY.
Part Number: 421944090591 |
|||
| EG1001-1 | 132 | TWO CUPS FILTER 12/14 GRS.
Part Number: 996530059134 |
|||
| EG1001-1 | 133 | 1-CUP FILTER 5.5/6.5 GRS.
Part Number: 996530059133 |
|||
| EG1001-1 | 134 | SEPARATOR
Part Number: 996530063423 |
|||
| EG1001-1 | 135 | MEASURE
Part Number: 996530063928 |
|||
| EG1001-1 | 136 | PERFECT CREMA FILTER
Part Number: 996530006133 |
|||
| EG1001-1 | 137 | BLENDE CLASSIC GAGGIA V2
Part Number: NOT AVAILABLE |
|||
| EG1001-1 | 138 | RED RECTANGULAR LENS CLASSIC V2
Part Number: 421944091431 |
|||

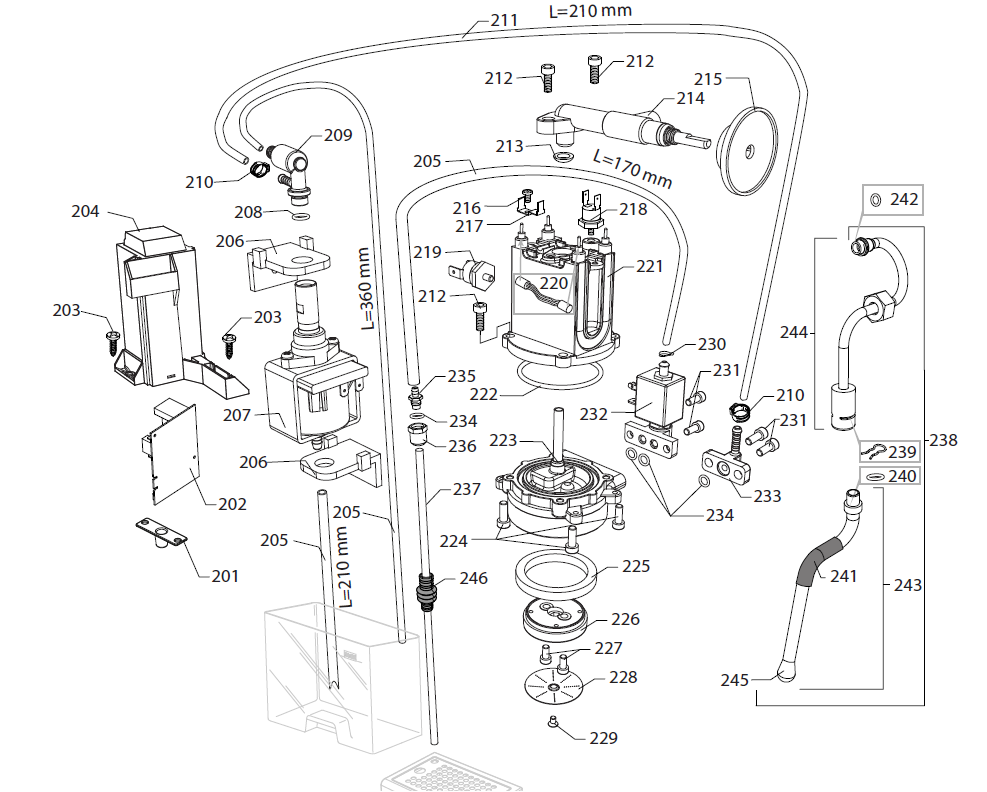

| EG1001-2 | 201 | PUMP-CPU/PWR BOARD SUPP.CAP CLASSIC SO
Part Number: 421944026351 Notes: RI9480 |
|||
| EG1001-2 | 202 | CPU+SW ECO-SWITCH RELE 20MIN 230V ASSY
Part Number: 421941312261 Notes: RI9480 |
|||
| EG1001-2 | 203 |
|
SELF-T.SCREWS 3.5X9.5 NICKEL-PLATED Part Number: 996530054154 |
$6.16 | View Part |
| EG1001-2 | 204 | PUMP + CPU/PWR BOARD SUPPORT CLASSIC SO
Part Number: 996530073941 |
|||
| EG1001-2 | 205 | TRANSP.SILICONE TUBE 5X9 65SH
Part Number: 996530018281 Notes: IN ROLL |
|||
| EG1001-2 | 206 | BLACK PUMP SUPPORT TYPE ULKA
Part Number: 996530017711 |
|||
| EG1001-2 | 207 | ULKA PUMP EP5/S GW 230V-50HZ
Part Number: 996530007753 |
|||
| RI9480/11-18 RI9380/03
|
|||||
| EG1001-2 | ULKA PUMP EFP5/S 120V-60HZ
Part Number: 421944081531 Notes: RI9380/46 |
||||
| EG1001-2 | ULKA PUMP EP5/S GW 220V-60HZ
Part Number: 996530007782 Notes: RI9380/06 |
||||
| EG1001-2 | ULKA PUMP EP5/S GW 100V-50/60HZ
Part Number: 996530007749 Notes: RI9380/40 |
||||
| EG1001-2 | 208 | O-RING 2031 TERMOIL
Part Number: 996530013471 |
|||
| EG1001-2 | 209 | L-F/BR.SAFETY VALVE 11 BAR ASSY.
Part Number: 421944028581 |
|||
| EG1001-2 | 210 | OETIKER CLAMP D EQUALS 9 5 15400022
Part Number: 996530007742 |
|||
| EG1001-2 | 211 | PINK 5X8,9 SILICONE TUBE
Part Number: 996530009505 Notes: IN ROLL |
|||
| EG1001-2 | 212 | 6X16 GALV. SCREW
Part Number: 996530062189 |
|||
| EG1001-2 | 213 | O-RING 112 IN EPDM 70�SH
Part Number: 996530054245 |
|||
| EG1001-2 | 214 | BRASS TM4 FAUCET ASSY.
Part Number: 421944090821 |
|||
| EG1001-2 | 215 | PROTECTION
Part Number: 996530052926 |
|||
| EG1001-2 | 216 | SCREW M 4X5 GALV.W/KNURLED HEAD
Part Number: 996530055023 |
|||
| EG1001-2 | 217 | BRACKET FOR THERMOFUSE
Part Number: 996530056298 |
|||
| EG1001-2 | 218 | STEAM TEMPERATURE SWITCH
Part Number: 996530054612 |
|||
| EG1001-2 | 219 | COFFEE TEMPERATURE SWITCH
Part Number: 996530054556 |
|||
| EG1001-2 | 220 | CAB. 1 WIRE SILIC. GREY 70MM
Part Number: 421946046321 |
|||
| RI9380/03-06 RI9480/11-18
|
|||||
| EG1001-2 | 221 | ALUM.BOILER 120/220/230/240 V ASSY.
Part Number: 996530055406 Notes: 120-220-230-240V |
|||
| EG1001-2 | ALUM.BOILER 100 V ASSY.
Part Number: 421944090881 Notes: 100V |
||||
| EG1001-2 | 222 | O-RING 167 IN EPDM 70�SH
Part Number: 996530054246 |
|||
| EG1001-2 | 223 | STECHROM GROUP BODY + DIP TUBE
Part Number: 421944090841 |
|||
| EG1001-2 | 224 | 5X12 S.S. SCREW
Part Number: 996530062179 |
|||
| EG1001-2 | 225 | FILTER HOLDER GASKET
Part Number: 996530059219 |
|||
| EG1001-2 | 226 | ALUM/AISI SHOWER HOLDER ASSY.
Part Number: 421944090791 |
|||
| EG1001-2 | 227 | 6X12 S.S. SCREW
Part Number: 996530062187 |
|||
| EG1001-2 | 228 | SHOWER
Part Number: 996530054322 |
|||
| EG1001-2 | 229 | SCREW TSP M5X8 UNI 7688 DIN 965 INOX
Part Number: 996530054229 |
|||
| EG1001-2 | 230 | TUBE-TIGHTENING CLAMP D=9.8/10.6
Part Number: 996530059832 |
|||
| EG1001-2 | 231 | 5X12 GALV. SCREW
Part Number: 996530062182 |
|||
| EG1001-2 | 232 | TEA/BRASS SOLENOID VALVE V2 230V 50HZ
Part Number: 421940221712 Notes: 230-240V |
|||
| EG1001-2 | BRASS 57 SOLENOID VALVE V2 230V 50HZ
Part Number: 421944093701 Notes: 220V |
||||
| EG1001-2 | BRASS 57 SOLENOID VALVE V2 120V 60HZ
Part Number: 421944093711 Notes: 120V |
||||
| EG1001-2 | BRASS 57 SOLENOID VALVE V2 100V 50-60
Part Number: 421946046651 Notes: 100V |
||||
| EG1001-2 | 233 | BRASS 57 INLET CONNECTOR
Part Number: 421944093241 |
|||
| EG1001-2 | 234 | Gasket OR 2025
Part Number: 996530063887 |
|||
| EG1001-2 | 235 | OUTLET FITTING - RUBBER
Part Number: 996530053238 |
|||
| EG1001-2 | 236 | NUT FOR OUTLET FITTING
Part Number: 996530053239 |
|||
| EG1001-2 | 237 | OUTLET TUBING
Part Number: 996530053235 |
|||
| EG1001-2 | 238 | STEAM UPP /LOW TUBE ASSY.
Part Number: 421944090571 |
|||
| EG1001-2 | 239 | FORK SPRING FOR VALVE P0049
Part Number: 996530002744 |
|||
| EG1001-2 | 240 | OR ORM 0080-20 IN SILICONE PTFE FDA
Part Number: 996530013445 |
|||
| EG1001-2 | 241 | RUBBER BURN BLOCKS 8X40
Part Number: 421944091401 |
|||
| EG1001-2 | 242 | OR 2018 IN VITON 70SH
Part Number: 996530063888 |
|||
| EG1001-2 | 243 | STEAM LOWER TUBE ASSY.
Part Number: 421944090581 |
|||
| EG1001-2 | 244 | STEAM UPPER TUBE ASSY.
Part Number: 421944088631 |
|||
| EG1001-2 | 245 | 2 HOLE STEAM SPRAYER
Part Number: 421944091411 |
|||
| EG1001-2 | 246 | RUBBER BURN BLOCKS 6X32
Part Number: 421944093511 |
