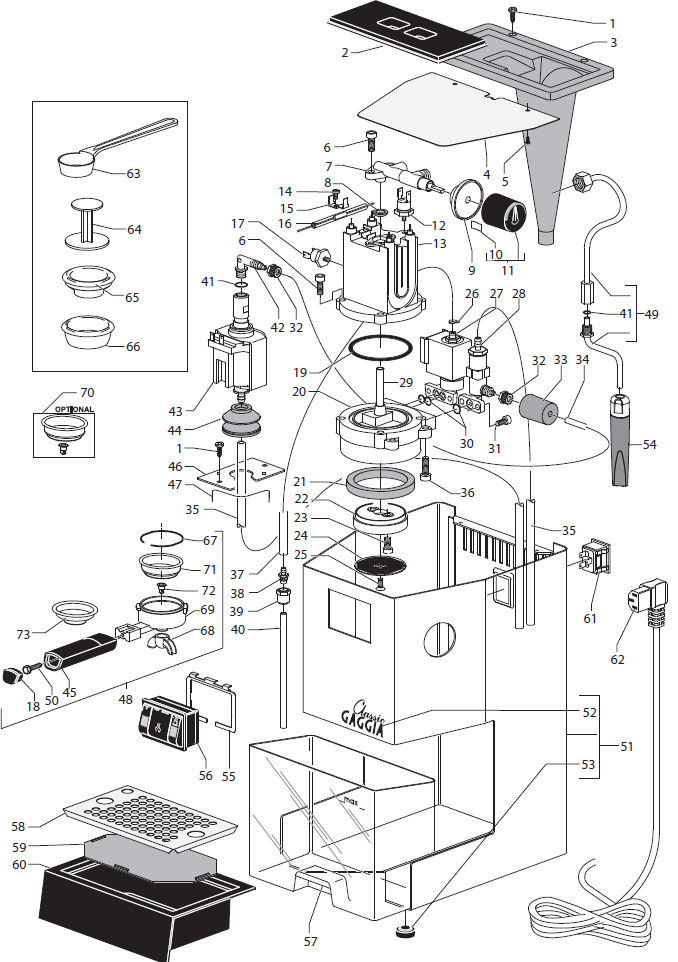

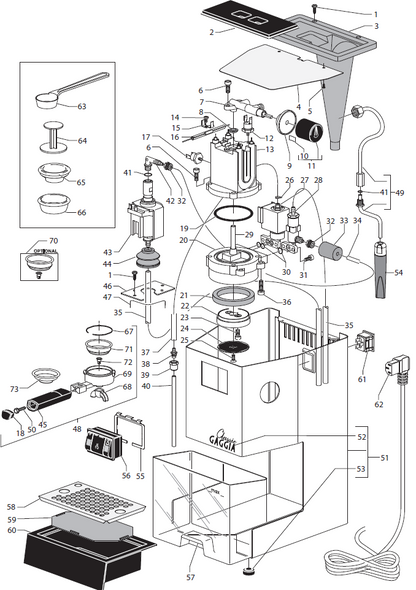

Gaggia Classic Stainless Steel Part Diagram ER0182
This is the Gaggia Classic Stainless Steel Part Diagram ER0182. In the list below, you will find all the parts associated with the diagram that are available. Use the parts diagram to determine the part(s) you need.
If the part listed below is not viewable then we do not carry it at this time. However, if your machine is currently in production we are likely able to acquire the part directly from the manufacturer. In this case, contact us by submitting a support ticket. Please be advised that it may take up to eight weeks for us to receive the part from the manufacturer.
Please note: Parts are neither returnable nor refundable. If you need assistance selecting a part for your machine, please submit a support ticket.-
| Diagram # | Pos # | Image | Description | Price |
|---|
| Diagram # | Pos # | Image | Description | Price | |
|---|---|---|---|---|---|
| ER0182-1 | 1 |
|
SCREW TCB 3,5X9,5 DIN 7981 C NICK Part Number: DI7981-3.5X9.5N |
$6.16 | View Part |
| ER0182-1 | 2 |
|
LID Part Number: CF0113 |
$7.08 | View Part |
| ER0182-1 | 3 |
|
FUNNEL Part Number: CF0115 |
$10.25 | View Part |
| ER0182-1 | 4 | TOP COVER W/O HOLES
Part Number: CF0108/01 |
|||
| ER0182-1 | 5 | STAIN STEEL 2,9X6,5THREAD SCRE
Part Number: DI7981P2.9X6.5I |
|||
| ER0182-1 | 6 |
|
GALV.SCREW M 6X16 Part Number: UN5931-6X16Z |
$5.20 | View Part |
| ER0182-1 | 7 |
|
TEA/BRASS FAUCET ASSY. Part Number: 11012628 |
$38.92 | View Part |
| ER0182-1 | 8 |
|
O-RING 112 IN EPDM 70SH Part Number: DM0041/081 |
$5.20 | View Part |
| ER0182-1 | 9 |
|
PROTECTION Part Number: CC5005/01 |
$12.49 | View Part |
| ER0182-1 | 10 |
|
STEEL SPRING FOR KNOB TYMER Part Number: DM0814 |
$6.16 | View Part |
| ER0182-1 | 11 |
|
BLACK STEAM FAUCET KNOB ASSY. Part Number: CF0189/A |
$17.68 | View Part |
| ER0182-1 | 12 |
|
STEAM TEMPERATURE SWITCH Part Number: DM1288 |
$15.32 | View Part |
| ER0182-1 | 13 |
|
ALUM.BOILER 120/220/240 V ASSY. Part Number: EF0030/A |
$35.14 | View Part |
| ER0182-1 | 14 |
|
SCREW M 4X5 GALV.W/KNURLED HEAD Part Number: DM1957 |
$6.16 | View Part |
| ER0182-1 | 15 |
|
BRACKET FOR THERMOFUSE Part Number: GG0064 |
$5.18 | View Part |
| ER0182-1 | 16 |
|
FUSE Part Number: DM1040 |
$7.20 | View Part |
| ER0182-1 | 17 |
|
COFFEE TEMPERATURE SWITCH Part Number: DM1168 |
$12.56 | View Part |
| ER0182-1 | 18 |
|
CAP KNOB FILTER HOLDER Part Number: 4332038000 |
$5.28 | View Part |
| ER0182-1 | 19 | O-RING 167 IN EPDM 70SH Part Number: DM0041/082 |
$5.96 | View Part | |
| ER0182-1 | 20 |
|
CROM/BRASS GROUP BODY Part Number: B0171 |
$39.99 | View Part |
| ER0182-1 | 21 | FILTER HOLDER GASKET
Part Number: NG01/001 |
|||
| ER0182-1 | 22 | ALUM.SHOWER HOLDER ASSY.
Part Number: DY0036/A |
|||
| ER0182-1 | 23 | SS SCREW M 6X12
Part Number: UN5931-6X12I |
|||
| ER0182-1 | 24 | SHOWER
Part Number: DM0704 |
|||
| ER0182-1 | 25 | SCREW TSP M5X8 UNI 7688 DIN 965 INOX
Part Number: DI7987-5X8I |
|||
| ER0182-1 | 26 | TUBE-TIGHTENING CLAMP D=9.8/10.6
Part Number: NV99.077 |
|||
| ER0182-1 | 27 | BRASS SOLENOID VALVE V.120/60
Part Number: DM1645/002 |
|||
| ER0182-1 | 27 | TEA/BRASS SOLENOID VALVE 230V 50Hz
Part Number: 12001270 |
|||
| ER0182-1 | 28 | TEA/BRASS VALVE ASSY.
Part Number: 11012627 |
|||
| ER0182-1 | 29 | COPPER PIPE
Part Number: B0181 |
|||
| ER0182-1 | 30 | Gasket OR 2025
Part Number: WGADM0041/022 |
|||
| ER0182-1 | 31 | GALV.SCREW M 5X12
Part Number: UN5931-5X12Z |
|||
| ER0182-1 | 32 | NUT
Part Number: WGAB0053 |
|||
| ER0182-1 | 33 | BLK PROTECTION FOR FOLK SPRING TUBE D=4
Part Number: 147756562 |
|||
| ER0182-1 | 34 | TEFLON TUBE 4X6 L.2 MT
Part Number: 9971.015 |
|||
| ER0182-1 | 35 | TRANSP.SILICONE TUBE 5X9 65SH IN ROLL
Part Number: 149361400 |
|||
| ER0182-1 | 36 | SS SCREW M 5X12
Part Number: UN5931-5X12I |
|||
| ER0182-1 | 37 | SOLENOID VALVE OUTLET PIPE
Part Number: CC5015 |
|||
| ER0182-1 | 38 | OUTLET FITTING - RUBBER
Part Number: CF0159 |
|||
| ER0182-1 | 39 | NUT FOR OUTLET FITTING
Part Number: CF0160 |
|||
| ER0182-1 | 40 | OUTLET TUBING
Part Number: CF0149 |
|||
| ER0182-1 | 41 | O-RING GASKET 2025 EPDM
Part Number: DM0041/088 |
|||
| ER0182-1 | 42 | BRASS ELBOW CONNECTOR 1/8 GAS M10
Part Number: B0052 |
|||
| ER0182-1 | 43 | ULKA PUMP EP5/S GW 230V-50HZ
Part Number: 12000140 |
|||
| ER0182-1 | 43 | ULKA PUMP EAP5/S 120V-60HZ
Part Number: 12000142 |
|||
| ER0182-1 | 44 | EATON PUMP SUPPORT
Part Number: GG0085/01 |
|||
| ER0182-1 | 45 | KNOB FILTER HOLDER
Part Number: 4332037000 |
|||
| ER0182-1 | 46 | METAL PUMP-SUPPORT
Part Number: CF0218 |
|||
| ER0182-1 | 47 | SPRING FOR FIXING PUMP
Part Number: GG0073 |
|||
| ER0182-1 | 48 | FILTER BASKET (CHROM.)
Part Number: 8332018000 |
|||
| ER0182-1 | 49 | BRASS/CU STEAM TUBE FOR PANNARELLO ASSY.
Part Number: CF0331/A |
|||
| ER0182-1 | 50 | GALV.SPECIAL SCREW M6X16
Part Number: WGADM1319 |
|||
| ER0182-1 | 51 | CLASSIC BODY W. POLISHED ST. STEEL
Part Number: CC5070/A/IL |
|||
| ER0182-1 | 51 | CLASSIC BODY W. SATIN-FINISH ST. ST
Part Number: CC5070/A/IS |
|||
| ER0182-1 | 51 | CLASSIC UL BODY W. SATIN-FINISH ST.
Part Number: CC5071/A/IS |
|||
| ER0182-1 | 52 | BLENDE CLASSIC GAGGIA
Part Number: CC5074 |
|||
| ER0182-1 | 53 | BLACK RUBBER FOOT
Part Number: CC5021 |
|||
| ER0182-1 | 54 | BLACK/BLACK PANNARELLO G100 ASSY.
Part Number: 227431350 |
|||
| ER0182-1 | 55 | COVER FIXING BRACKET
Part Number: CC5064 |
|||
| ER0182-1 | 56 | MAIN SWITCH-220-240 VOLTS
Part Number: DM1475 |
|||
| ER0182-1 | 57 | TRANSP/GREY WATER CONTAINER S/SCR.
Part Number: CF0112 |
|||
| ER0182-1 | 58 | DRIP TRAY GRID
Part Number: CF0114 |
|||
| ER0182-1 | 59 | GRID SUPPORT
Part Number: CC5028 |
|||
| ER0182-1 | 60 | DRIP TRAY
Part Number: CF0111 |
|||
| ER0182-1 | 61 | SELF FIXING PIN V 120
Part Number: DM1563/001 |
|||
| ER0182-1 | 61 | CUP SOCKET EN 60320 C 13
Part Number: 12000280 |
|||
| ER0182-1 | 62 | BLACK POWER CABLE SCHUKO L=1200
Part Number: 183911050 |
|||
| ER0182-1 | 62 | AUSTRALIAN POWER CORD
Part Number: CF0292/AUS |
|||
| ER0182-1 | 62 | SWITZERLAND POWER CORD
Part Number: CF0292/CHX |
|||
| ER0182-1 | 62 | ENGLISH POWER CORD
Part Number: CF0292/GBX |
|||
| ER0182-1 | 62 | 3 X 1 ISRAEL POWER CABLE
Part Number: CF0292/ILX |
|||
| ER0182-1 | 62 | POWER CABLE 2X16 AWG USA BLACK
Part Number: CF0292/USA |
|||
| ER0182-1 | 63 | MEASURE
Part Number: WGADM1017 |
|||
| ER0182-1 | 64 | SEPARATOR
Part Number: WGA2PR/1 |
|||
| ER0182-1 | 65 | 1-CUP FILTER 5.5/6.5 GRS.
Part Number: NF08/002 |
|||
| ER0182-1 | 66 | TWO CUPS FILTER 12/14 GRS.
Part Number: NF08/005 |
|||
| ER0182-1 | 67 | RETAINING - FILTER SPRING
Part Number: 18G1514 |
|||
| ER0182-1 | 68 | 2-WAY SPOUT CHROME
Part Number: WGA6301004010 |
|||
| ER0182-1 | 69 | CHROM/BRASS FILTER HOLDER CUP
Part Number: 6301002000 |
|||
| ER0182-1 | 70 | PERFECT CREMA FILTER KIT
Part Number: 21000491 |
|||
| ER0182-1 | 71 | PERFECT CREMA FILTER D.0,6 MM.
Part Number: 11007038 |
|||
| ER0182-1 | 72 | BLACK TWO WAY PIN
Part Number: 4301007000 |
|||
| ER0182-1 | 73 | PERFECT CREMA FILTER
Part Number: 11011693 |
|||
| ER0182-1 | 100 | MANUAL V2 GAG CLASSIC
Part Number: 15002250 |
|||
| ER0182-1 | 100 | SHEET IMAGES INSTR.CLASSIC (200GR)
Part Number: 15002757 |
|||
| ER0182-1 | 100 | CLASSIC GAGGIA PACKING BOX
Part Number: CC5013/02 |
|||
| ER0182-1 | 100 | WIRING V 120
Part Number: CC5049/UL-CSA |
|||
| ER0182-1 | 100 | 230 V (9307-INOX) WIRING
Part Number: CC5062 |
|||
| ER0182-1 | 100 | PS-E LOWER INTERNAL PACKING CLASSIC
Part Number: CF0329 |
|||
| ER0182-1 | 100 | PS-E UPPER INTERNAL PACKING CLASSIC
Part Number: CF0330 |
