Profitec Pro 400 Part Diagram 100400
This is the Profitec Pro 400 Part Diagram 100400. In the list below, you will find all the parts associated with the diagram that are available. Use the parts diagram to determine the part(s) you need.
If the part listed below is not viewable then we do not carry it at this time. However, if your machine is currently in production we are likely able to acquire the part directly from the manufacturer. In this case, contact us by submitting a support ticket. Please be advised that it may take up to eight weeks for us to receive the part from the manufacturer.
Please note: Parts are neither returnable nor refundable. If you need assistance selecting a part for your machine, please submit a support ticket.-
-
-
-
-
-
| Diagram # | Pos # | Image | Description | Price |
|---|
| Diagram # | Pos # | Image | Description | Price | |
|---|---|---|---|---|---|

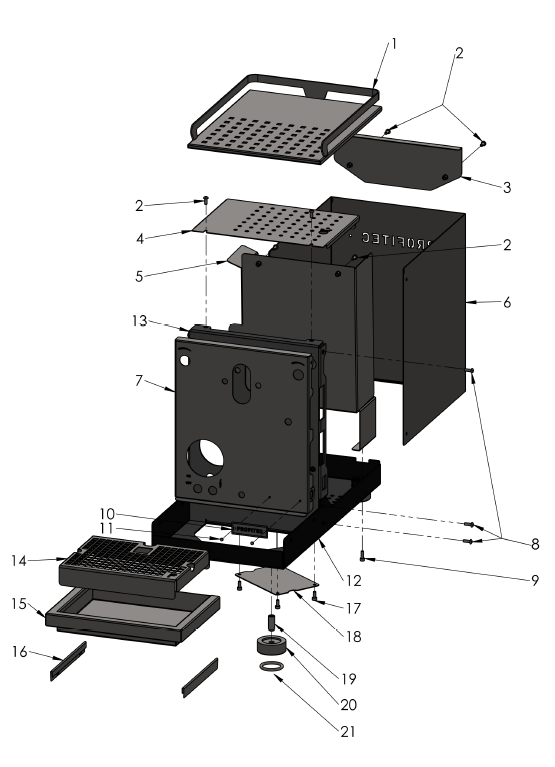

| 100400-1 | 1 | Cup warminq tray Pro400
Part Number: P2165 |
|||
| 100400-1 | 2 |
|
Lens screw M4x10 Part Number: P2022 |
$5.37 | View Part |
| 100400-1 | 3 | Holder U-Chassis
Part Number: P2166 |
|||
| 100400-1 | 4 | Lower Cup warming tray Pro400 Part Number: P2167 |
$78.78 | View Part | |
| 100400-1 | 5 | Water tank guide rail Pro400
Part Number: P2163 |
|||
| 100400-1 | 6 | U-Body Pro400
Part Number: P2164 |
|||
| 100400-1 | 7 | Frontpanel Pro400
Part Number: P2162 |
|||
| 100400-1 | 8 | Panhead screw w. collar M4 x 12 Part Number: P2075 |
$5.30 | View Part | |
| 100400-1 | 9 | Cylinderhead screw M4 x 12
Part Number: B7819901 |
|||
| 100400-1 | 10 |
|
Emblem Profitec small Part Number: P2063 |
$10.00 | View Part |
| 100400-1 | 11 | Blind rivet struss Head 2,4x8
Part Number: P1998 |
|||
| 100400-1 | 12 | Baseframe bottom Pro400 Part Number: P2161.1 |
$225.00 | View Part | |
| 100400-1 | 13 | Baseframe front Pro400
Part Number: P2161.2 |
|||
| 100400-1 | 14 |
|
Grid drip tray Pro400 Part Number: P2168 |
$55.49 | View Part |
| 100400-1 | 15 | Drip tray Pro400 Part Number: P2169 |
$127.26 | View Part | |
| 100400-1 | 16 | Guide rail drip tray 150mm
Part Number: P2161.3 |
|||
| 100400-1 | 17 |
|
Screw cylinder head M4x10 Part Number: P2006 |
$5.41 | View Part |
| 100400-1 | 18 | Cover plate chassis
Part Number: P2127 |
|||
| 100400-1 | 19 |
|
Allen key qrub screw M10x25 Part Number: P1984 |
$5.44 | View Part |
| 100400-1 | 20 | Machine foot Pro400
Part Number: P7030 |
|||
| 100400-1 | 21 |
|
OR Machine Foot Part Number: B7474216.1 |
$5.56 | View Part |

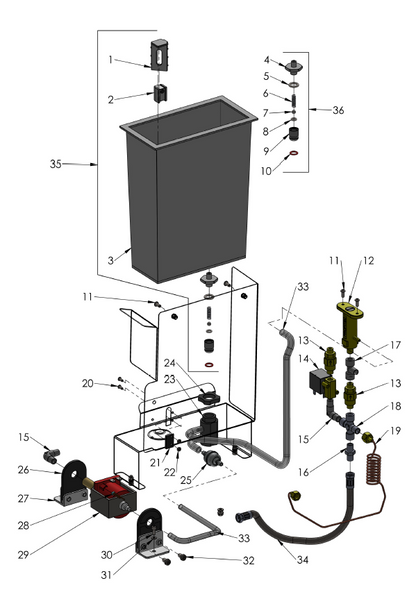

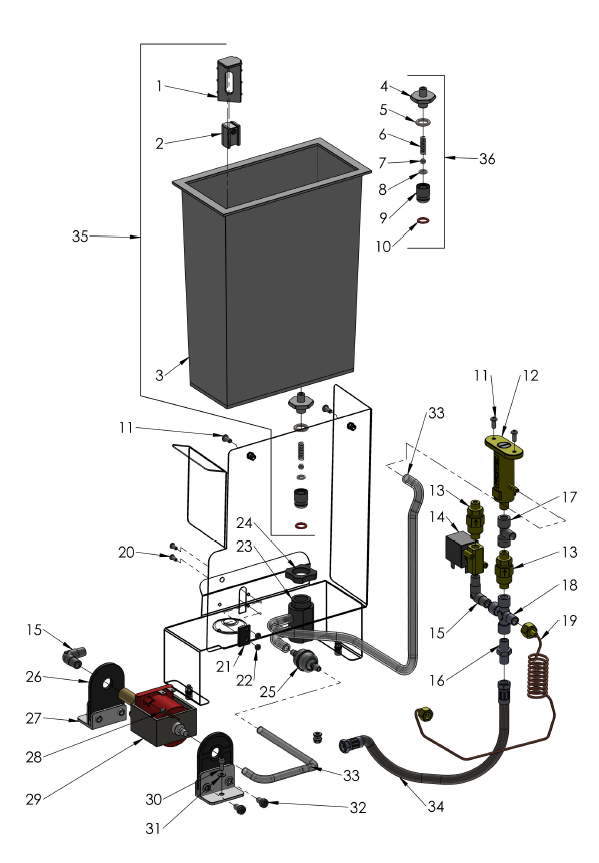

| 100400-2 | 1 |
|
Cap floater water tank Part Number: P6016 |
$11.29 | View Part |
| 100400-2 | 2 | Reed swimmer Part Number: P6021 |
$18.26 | View Part | |
| 100400-2 | 3 | Water tank blank 2,8 litres Part Number: P9010 |
$38.35 | View Part | |
| 100400-2 | 4 |
|
Water tank adapter hexagon nut Part Number: P6020 |
$13.68 | View Part |
| 100400-2 | 5 | Seal water tank adapter upper
Part Number: P6020.3 |
|||
| 100400-2 | 6 |
|
Spring water tank apator Part Number: P6023 |
$7.76 | View Part |
| 100400-2 | 7 |
|
Ball water tank lock Part Number: B5471509 |
$6.53 | View Part |
| 100400-2 | 8 |
|
Seal water tank adapter middle Part Number: P6025 |
$5.22 | View Part |
| 100400-2 | 9 |
|
Water tank adapter union Part Number: P6017 |
$11.20 | View Part |
| 100400-2 | 10 |
|
Seal water tank adapter lower Part Number: B7496076 |
$5.82 | View Part |
| 100400-2 | 11 |
|
Button head screw M4x10 Part Number: P2022 |
$5.37 | View Part |
| 100400-2 | 12 | Expansionvalve Part Number: P7000 |
$72.06 | View Part | |
| 100400-2 | 13 | Check Valve 1/8"MM Part Number: C229900548 |
$40.77 | View Part | |
| 100400-2 | 14 | Solenoid valve 2-ways 230 VAC
Part Number: C199900275 |
|||
| 100400-2 | Solenoid valve 2-ways 115 VAC Part Number: US1005 |
$74.38 | View Part | ||
| 100400-2 | 15 | Elbow 1/8"MM Part Number: C229900579 |
$11.69 | View Part | |
| 100400-2 | 16 |
|
Double nipple 1/8" MM Part Number: C229900518 |
$8.98 | View Part |
| 100400-2 | 17 |
|
T-fittinq 1/8"FMF Part Number: C229900703 |
$16.06 | View Part |
| 100400-2 | 18 | Cross fittinq 1/8" MFFF
Part Number: P6047 |
|||
| 100400-2 | 19 |
|
Capillary tube pump pressure qauqe Part Number: P6051 |
$18.43 | View Part |
| 100400-2 | 20 | Button head screw M3x8 A2
Part Number: P6101 |
|||
| 100400-2 | 21 | Reed sensor Part Number: P6022 |
$38.18 | View Part | |
| 100400-2 | 22 | hex nut metric M3
Part Number: P2019 |
|||
| 100400-2 | 23 |
|
Water tank adapter connector Part Number: P6020.K4 |
$8.98 | View Part |
| 100400-2 | 24 |
|
Water tank adapter connector nut Part Number: P6020.K3 |
$8.98 | View Part |
| 100400-2 | 25 |
|
Filter water tank operation Part Number: C439900695 |
$9.91 | View Part |
| 100400-2 | 26 |
|
Pump Holder Rubber standard Part Number: C249900770 |
$8.02 | View Part |
| 100400-2 | 27 | Lower pump bracket Part Number: P3006.K |
$10.60 | View Part | |
| 100400-2 | 28 |
|
Thermoprotection Pump Part Number: C199900969 |
$9.94 | View Part |
| 100400-2 | 29 | Pump ULKA EX5 230V/ 50hz
Part Number: C199900286 |
|||
| 100400-2 | Pump US Ulka EAX5 120V/ 60Hz Part Number: US1001 |
$52.76 | View Part | ||
| 100400-2 | 30 |
|
socket head cap screw M4x10 Part Number: P2006 |
$5.41 | View Part |
| 100400-2 | 31 | Flat washer metric no. 4
Part Number: P2009 |
|||
| 100400-2 | 32 | Thread tappinq screw 4.8x13mm
Part Number: P3019 |
|||
| 100400-2 | 33 | Silicone hose transparent
Part Number: C499900769 |
|||
| 100400-2 | 34 | Flex hose 1/8"FF 1=250mm
Part Number: P8016 |
|||
| 100400-2 | 35 | Watertank complete 2,8 liters
Part Number: P9010.K1 |
|||
| 100400-2 | 36 | Watertank adapter complete Part Number: P6020.NK |
$28.43 | View Part | |

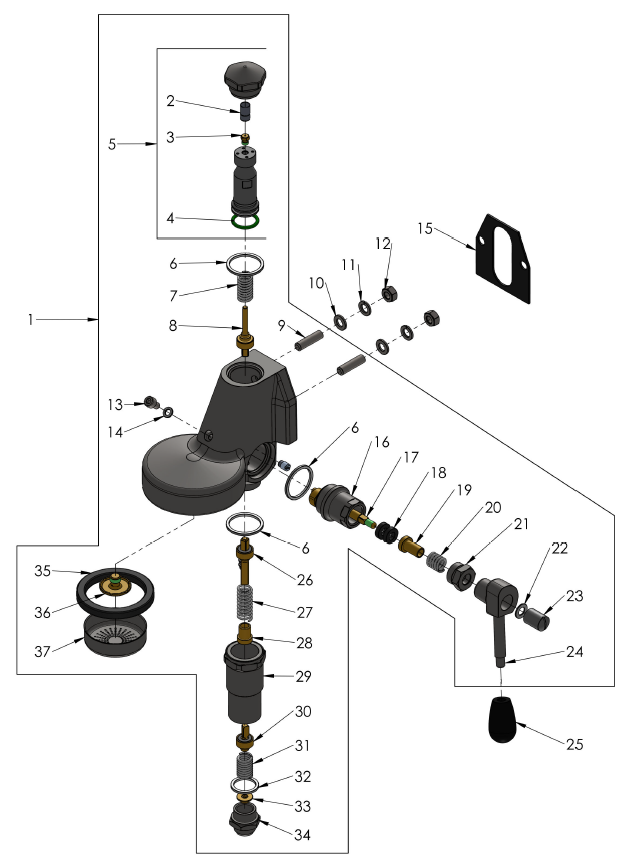

| 100400-3 | 1 | Group E61 lnox w. Mushroom Profitec
Part Number: P1018 |
|||
| 100400-3 | 2 | lnox filter gigleur Part Number: C619900554 |
$18.74 | View Part | |
| 100400-3 | 3 |
|
Flow restrictor 0,8 Part Number: C229900549 |
$8.30 | View Part |
| 100400-3 | 4 |
|
Gasket mushroom brew group Part Number: C469900422 |
$9.80 | View Part |
| 100400-3 | 5 | Socket brew woup complete Profitec Part Number: P1018.1 |
$88.94 | View Part | |
| 100400-3 | 6 |
|
Gasket Teflon Part Number: C469900421 |
$7.30 | View Part |
| 100400-3 | 7 |
|
Sprinq upper/middle Part Number: C219900423 |
$15.27 | View Part |
| 100400-3 | 8 |
|
Valve brew group E61 upper Part Number: C219900424 |
$12.95 | View Part |
| 100400-3 | 9 |
|
Allen screw M8x31 Part Number: C309900131 |
$5.88 | View Part |
| 100400-3 | 10 | Washer metric 8
Part Number: P2010 |
|||
| 100400-3 | 11 |
|
Spring ring MB A2 Part Number: P2011 |
$5.61 | View Part |
| 100400-3 | 12 |
|
Hex nut MB Part Number: C309900127 |
$5.34 | View Part |
| 100400-3 | 13 | Cylinder head screw M6x8 A2
Part Number: P2077 |
|||
| 100400-3 | 14 | Gasket brewqroup front Part Number: C469901132 |
$6.02 | View Part | |
| 100400-3 | 15 |
|
Gasket brew qroup/front panel E61 Part Number: C449900767 |
$10.13 | View Part |
| 100400-3 | 16 | Flanqe Part Number: R000002142 |
$21.46 | View Part | |
| 100400-3 | 17 |
|
Camshaft Group E61 Part Number: C219900425 |
$34.17 | View Part |
| 100400-3 | 18 | Washer axis qrouo E61
Part Number: C219900426 |
|||
| 100400-3 | 19 | Axle Support group E61
Part Number: P1004 |
|||
| 100400-3 | 20 | Spring axis group Part Number: C219900427 |
$11.40 | View Part | |
| 100400-3 | 21 |
|
Screw joint axis group Part Number: R000002144 |
$9.67 | View Part |
| 100400-3 | 22 | Lock washer metric 8 Part Number: B7479947 |
$11.99 | View Part | |
| 100400-3 | 23 | Bolt lever Part Number: R000002146 |
$7.75 | View Part | |
| 100400-3 | 24 |
|
Lever axis qroup with bolt Part Number: R000002145 |
$42.09 | View Part |
| 100400-3 | 25 | Lever knob metric thread MB Pro400
Part Number: C439900846 |
|||
| 100400-3 | 26 |
|
Valve qroup E61 middle Part Number: C219903081 |
$21.64 | View Part |
| 100400-3 |
|
Spring upper/middle Part Number: C219900423 |
$15.27 | View Part | |
| 100400-3 | 28 | Spring guide group Part Number: B7479942 |
$12.14 | View Part | |
| 100400-3 | 29 |
|
Pre-brewing cylinder Part Number: C229901165 |
$105.79 | View Part |
| 100400-3 | 30 |
|
Valve qroup E61 lower Part Number: C219900430 |
$12.95 | View Part |
| 100400-3 | 31 |
|
Spring group E61 lower Part Number: C219900431 |
$8.83 | View Part |
| 100400-3 | 32 | Teflon qasket E61 lower Part Number: C469900783 |
$7.01 | View Part | |
| 100400-3 | 33 |
|
Sprayer lower Part Number: R000002148 |
$9.99 | View Part |
| 100400-3 | Drain screw E61 lower Part Number: R000002149 |
$12.28 | View Part | ||
| 100400-3 | 35 | Group gasket H=8,5mm
Part Number: P1021 |
|||
| 100400-3 | 36 | Sprayer brew group Part Number: C229901128 |
$24.99 | View Part | |
| 100400-3 |
|
Shower screen E61 Part Number: C519900103 |
$15.20 | View Part | |

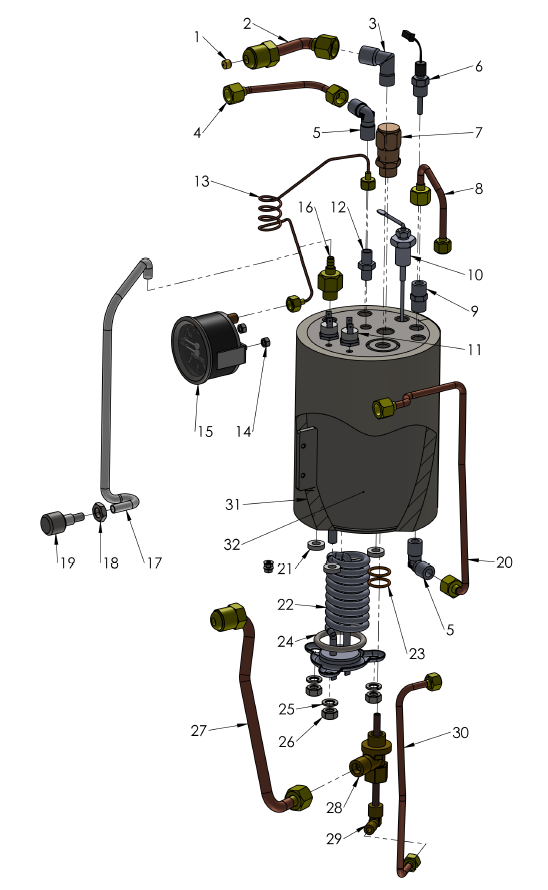

| 100400-4 | 1 | Reduction 0 2,5
Part Number: P1910.1 |
|||
| 100400-4 | 2 | Pipe intake Brewgroup Pro400 Part Number: P9396 |
$35.49 | View Part | |
| 100400-4 | 3 | Ellbow 3/8" - 1/4" MM
Part Number: P1931 |
|||
| 100400-4 | 4 | Steam outlet pipe
Part Number: P9398 |
|||
| 100400-4 | 5 | Elbow 1/4"MM conical-cylindrical Part Number: C229900526 |
$12.52 | View Part | |
| 100400-4 | 6 | Temperature sensor 1/4" Part Number: P6037 |
$46.76 | View Part | |
| 100400-4 | 7 |
|
Safety valve 3/8"M 2.0 Mpa Part Number: C229900559 |
$33.06 | View Part |
| 100400-4 | 8 | Boiler loading pipe
Part Number: P9397 |
|||
| 100400-4 | 9 | Nipple 1/4" - 1/4" MM Part Number: C229900520 |
$10.00 | View Part | |
| 100400-4 | 10 | Level control probe 97 mm
Part Number: P6310 |
|||
| 100400-4 | 11 | Safety thermostat 145C Part Number: C199901550.1 |
$13.28 | View Part | |
| 100400-4 | 12 |
|
Nipple 1/8" - 1/8" MM Part Number: C229900518 |
$8.98 | View Part |
| 100400-4 | 13 |
|
Capillary tube boiler gauge Part Number: B7400902 |
$18.43 | View Part |
| 100400-4 | 14 | Hexagon nut M5
Part Number: P6102 |
|||
| 100400-4 | 15 |
|
Double pressure qauqe Pro400 Part Number: P2557 |
$129.59 | View Part |
| 100400-4 | 16 |
|
Anti-vacuum valve with drain Part Number: P2561 |
$19.53 | View Part |
| 100400-4 | 17 | Silicone hose transparent
Part Number: C499900769 |
|||
| 100400-4 | 18 |
|
Half nut M10 Part Number: P6103 |
$5.44 | View Part |
| 100400-4 | 19 |
|
Drain nozzle Part Number: C227700898 |
$20.30 | View Part |
| 100400-4 | 20 | Hot water outlet pipe Pro400
Part Number: P9399 |
|||
| 100400-4 | 21 | Teflon Spacer
Part Number: P9033 |
|||
| 100400-4 | 22 | Heater INOX boiler 230V 1400W
Part Number: P7014.1 |
|||
| 100400-4 | Heater INOX boiler 110V 1400W Part Number: US1000 |
$57.04 | View Part | ||
| 100400-4 | 23 |
|
Copper Seal 3/8" for HX Part Number: P2045 |
$8.00 | View Part |
| 100400-4 | 24 |
|
Seal heating element lnox boiler Part Number: P9013 |
$10.99 | View Part |
| 100400-4 | 25 |
|
Sprinq rinq M8 A2 Part Number: P2011 |
$5.61 | View Part |
| 100400-4 | 26 | Hex nut brass M8
Part Number: C309900127.2 |
|||
| 100400-4 | 27 | Pipe return-flow Brewaroup
Part Number: P9406 |
|||
| 100400-4 | 28 |
|
Connector injection pipe Part Number: C229900740 |
$14.60 | View Part |
| 100400-4 | 29 |
|
Injection tube Conico Part Number: C229900393 |
$11.84 | View Part |
| 100400-4 | 30 | Alimentation pipe
Part Number: P9400 |
|||
| 100400-4 | 31 | Boiler Insulation Pro400/200
Part Number: P7056 |
|||
| 100400-4 | 32 | Boiler Pro400/200
Part Number: P7090 |
|||

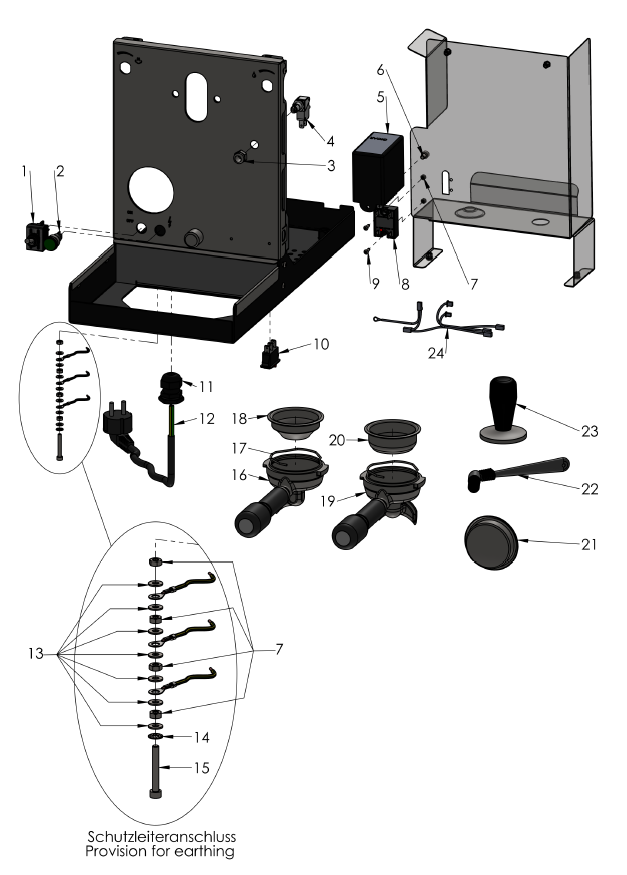

| 100400-5 | 1 | Power switch metal Part Number: C199900087 |
$44.81 | View Part | |
| 100400-5 | 2 | Control lamp green 6V
Part Number: P2565 |
|||
| 100400-5 | 3 | Hexaqon nut microswitch
Part Number: 85221875CM |
|||
| 100400-5 | 4 | Microswitch brewgroup with wheel
Part Number: P2081 |
|||
| 100400-5 | 5 | Elektronik HX Pro400/Slim 110-230V Part Number: P2820 |
$130.40 | View Part | |
| 100400-5 | 6 | socket head cap screw MS x 8 A2
Part Number: P1977 |
|||
| 100400-5 | 7 | Hex nut M3
Part Number: P2019 |
|||
| 100400-5 | 8 | Solid State Relay Part Number: P6029 |
$28.40 | View Part | |
| 100400-5 | 9 | socket head cap screw M3 x 8 A2
Part Number: P6101 |
|||
| 100400-5 | 10 | Rocker switch 3-Pos. Pro 400/Slim Part Number: P6313 |
$15.00 | View Part | |
| 100400-5 | 11 | Cable clip with hexaqon nut Part Number: P2070 |
$8.57 | View Part | |
| 100400-5 | 12 | Power cord Schuko-plug
Part Number: C199900957 |
|||
| 100400-5 | 13 | Flat washer M4 A2
Part Number: P2009 |
|||
| 100400-5 | 14 | Lock washer M4 A2
Part Number: P2004 |
|||
| 100400-5 | 15 | Socket head cap screw M4x30 A2
Part Number: P1983 |
|||
| 100400-5 | 16 | Filter holder 1 spout
Part Number: C699900233 |
|||
| 100400-5 | 17 | Lockinq sprinq portafilter
Part Number: C619900098 |
|||
| 100400-5 | 18 | Filter for 1 cup 7q coffee
Part Number: C619900104 |
|||
| 100400-5 | 19 | Filter holder 2 spouts Part Number: C699900234 |
$55.38 | View Part | |
| 100400-5 | 20 |
|
Filter for 2 cups 14q coffee Part Number: C619900105 |
$22.86 | View Part |
| 100400-5 | 21 | Blind filter for brew group cleaning Part Number: C619900106 |
$14.16 | View Part | |
| 100400-5 | 22 |
|
Cleaning brush coffee machine Part Number: R210 |
$10.46 | View Part |
| 100400-5 | 23 | Neutral Tamper
Part Number: 89410 |
|||
| 100400-5 | 24 | Wireinq harness Pro 400
Part Number: P2587 |
|||

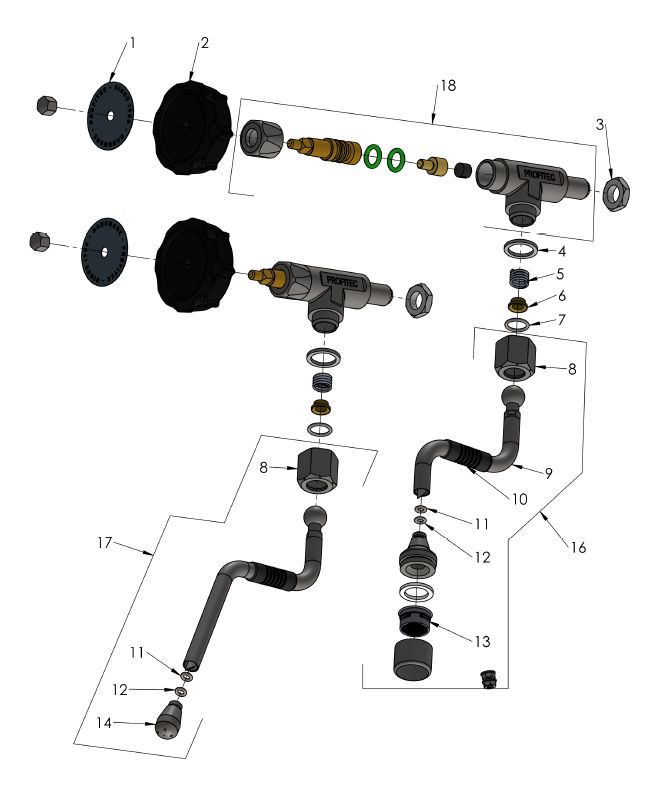

| 100400-6 | 1 | Valveplate Pro400 Azure Part Number: P8140 |
$7.76 | View Part | |
| 100400-6 | Valveplate Pro400 Orange Part Number: P8143 |
$7.76 | View Part | ||
| 100400-6 | Valveplate Pro400 Red Part Number: P8144 |
$7.76 | View Part | ||
| 100400-6 | Valveplate Pro400 Part Number: P8145 |
$7.76 | View Part | ||
| 100400-6 | 2 | Valve handle w. square socket
Part Number: P8121 |
|||
| 100400-6 | 3 |
|
Half nut 1/4" Part Number: C329900682 |
$5.82 | View Part |
| 100400-6 | 4 |
|
Gasket PTFE valve Part Number: P6015 |
$6.67 | View Part |
| 100400-6 | 5 |
|
Spring steam-/hot water valve Part Number: B5471532 |
$9.30 | View Part |
| 100400-6 | 6 |
|
I joint socket steam-/hotwaterwand Part Number: B5220606 |
$6.08 | View Part |
| 100400-6 | 7 | O-Ring nut steam/hotwater Part Number: B7496073 |
$6.08 | View Part | |
| 100400-6 | 8 | Nut steam-/hot water valve Part Number: P6002.5 |
$10.58 | View Part | |
| 100400-6 | 9 |
|
Hot water wand no-burn teflon Part Number: P2540 |
$129.30 | View Part |
| 100400-6 | 10 |
|
Insulation steam-/hot water wand Part Number: P8110 |
$7.42 | View Part |
| 100400-6 | 11 | OR Lances nozzles silicone red Part Number: P2542.1 |
$5.00 | View Part | |
| 100400-6 | 12 | OR Lances nozzles NBR black
Part Number: B7496083 |
|||
| 100400-6 | 13 | Strainer hot water outlet Part Number: P6001.2 |
$7.44 | View Part | |
| 100400-6 | 14 |
|
Steam nozzle 2 holes 1,2 mm Part Number: P2543 |
$15.88 | View Part |
| 100400-6 | Steam nozzle 4 holes 1,2 mm Part Number: P2542 |
$5.00 | View Part | ||
| 100400-6 | 16 |
|
Hot water wand no-burn teflon Part Number: P2540 |
$129.30 | View Part |
| 100400-6 | 17 |
|
Steam wand no-burn teflon Part Number: P2541 |
$129.30 | View Part |
| 100400-6 | 18 |
|
Handwheel Tap Profitec Part Number: P8118 |
$69.59 | View Part |
