Heat Exchanger
The Pro 500 PID is equipped with a 1400 W stainless steel boiler with a capacity of 2 L. As a heat exchanger machine, you can brew and steam back to back without waiting or even brew at the same time.
Now Shipping With a Double Spout and Bottomless Portafilter

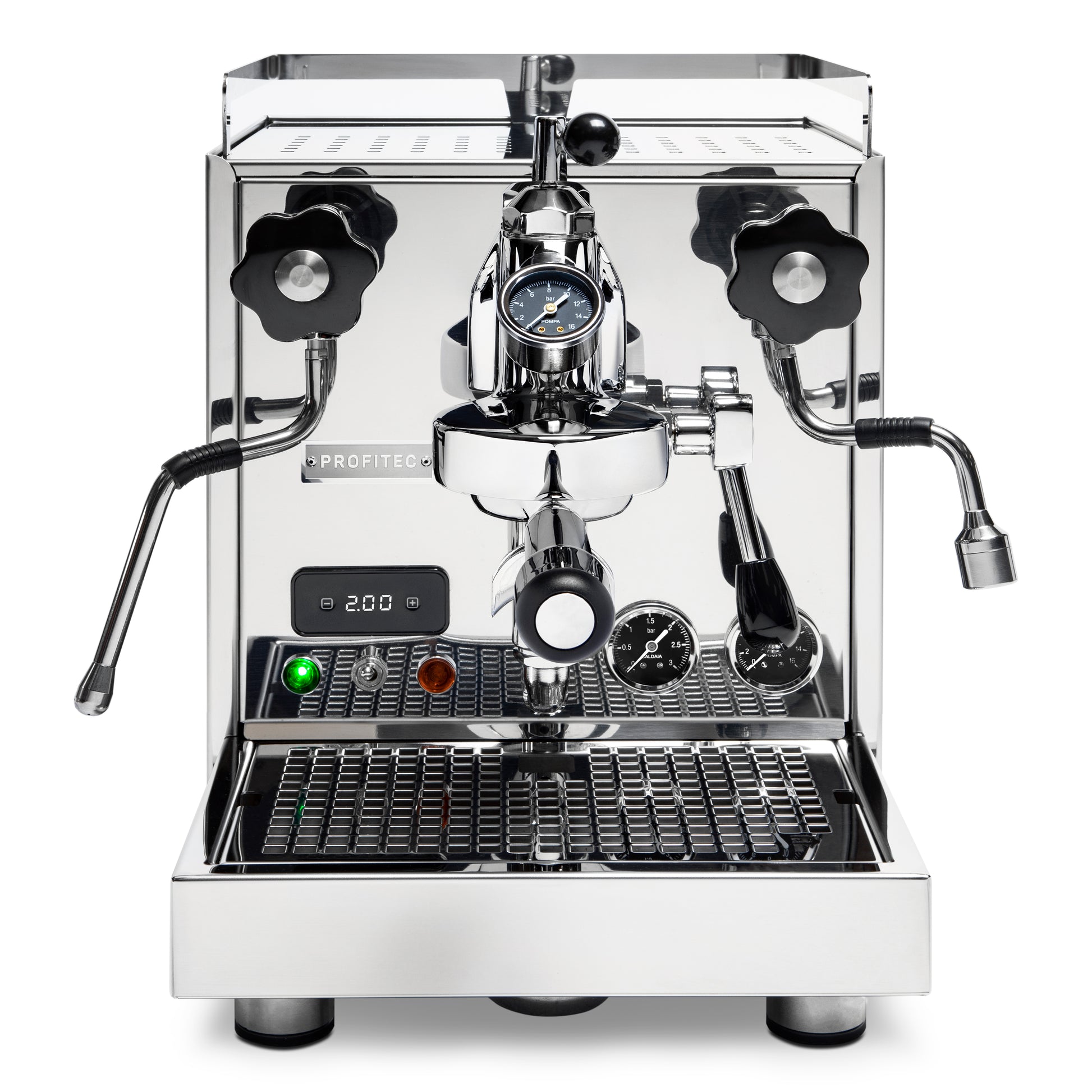

The Profitec Pro 500 PID follows in the footsteps of other machines from Profitec with tremendous performance and distinguished build quality without compromising on simplicity. The Pro 500 boasts commercial-grade parts and professional aesthetics while still managing to be easy-to-use. The updated version of the Pro 500 PID offers a level of performance we’ve seen in much more expensive machines and introduces a now visible PID and shot timer and striking new black pressure gauges.
With the Pro 500 PID, you'll get a heat exchanger machine that brews with a 2L stainless steel boiler and a powerful 1400W heating element. The boiler is complemented nicely by the iconic E61 brew group, but the PID control is the real showstopper here.
In combination with the engineered thermosyphon system in the E61 group, the Pro 500 PID lends a level of temperature stability previously unheard of in a heat exchanger espresso machine. The need for cooling flushes is eliminated, removing a considerable limitation from this class of espresso machine. When set to a temperature of 256° Fahrenheit, pressure stabilizes for near indefinite steaming while eliminating the necessity of a cooling flush under most circumstances.

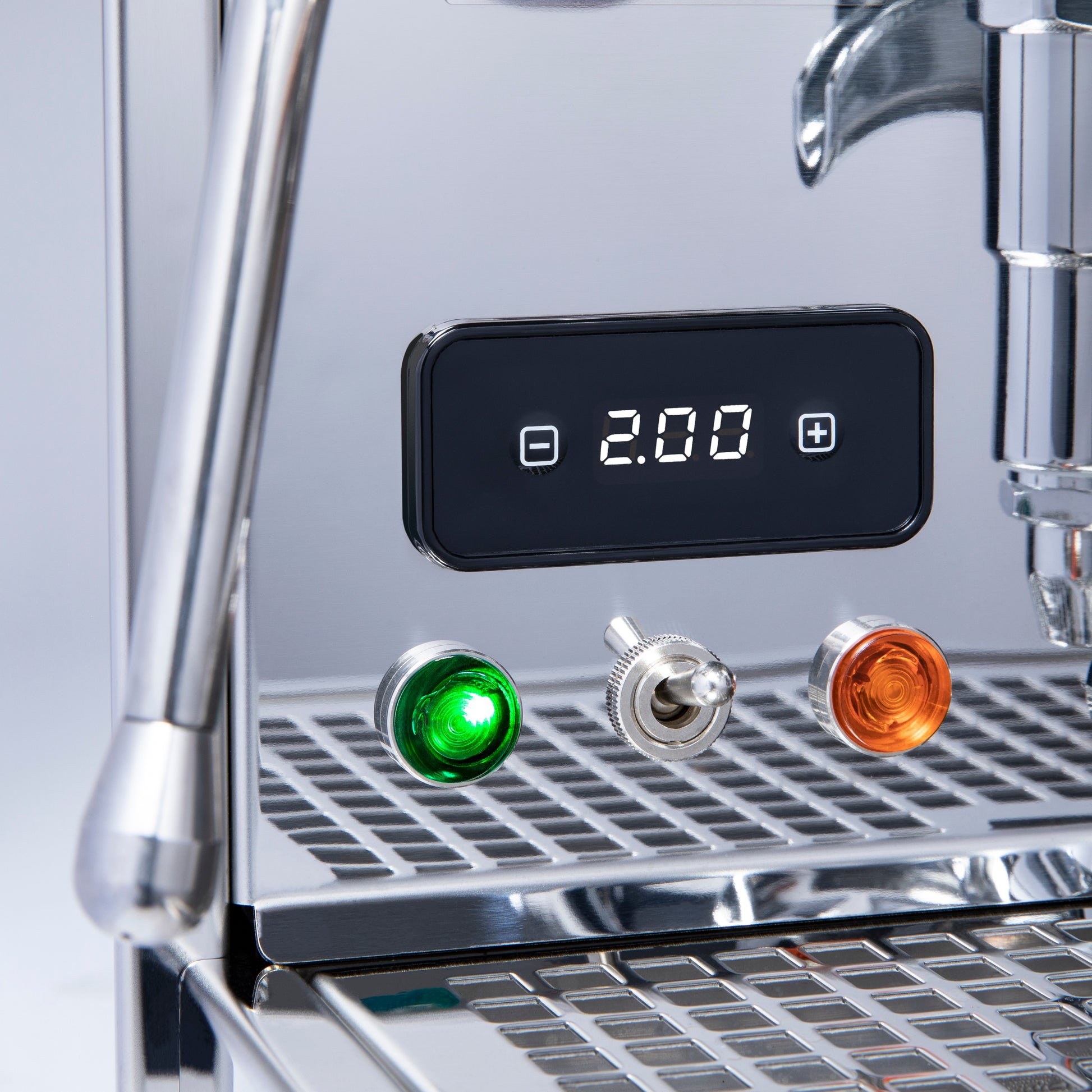

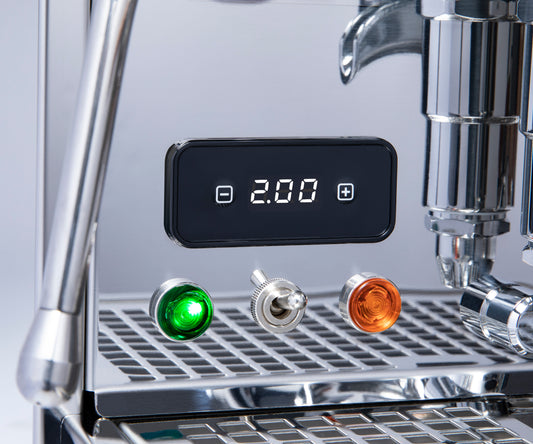

With the 2022 update of the Pro 500, Profitec has moved the PID temperature display to make it easier to view. Before, the display was hidden behind the drip tray, but now it’s on the face of the machine. This will help you make sure your espresso machine is set at the correct temperature so you can brew with all of the exact settings that you want. In addition, the PID display now doubles as a shot timer and allows you to easily change other settings such as the programmable eco mode and backflush reminders.
All in all, the Pro 500 PID sets itself apart as a superior machine with the commercial edge necessary to measure up against machines with a much greater asking price. The relocated PID display really shines, making it easier than ever to keep an eye on the impressive temperature stability from the PID temperature controller on this heat exchanger espresso machine.
The Pro 500 PID is equipped with a 1400 W stainless steel boiler with a capacity of 2 L. As a heat exchanger machine, you can brew and steam back to back without waiting or even brew at the same time.
Control boiler temperature to get the best flavor out of whatever kind of coffee you’re brewing with. The PID also has temperature stability and accuracy that pressure stats can only dream of. With the 2022 update, you can now easily view the current temperature settings or adjust them to fit the coffee you’re using as well as your taste preferences.
The E61 grouphead is constantly heated with water from the thermosyphon system for temperature stability. It also features a pre-infusion cylinder to aid in the extraction process.
The machine is housed in mirror-finished, stainless steel panels. It rests on a one-piece internal steel frame, which protects it from bending or bowing during shipping or as the result of continuous use.

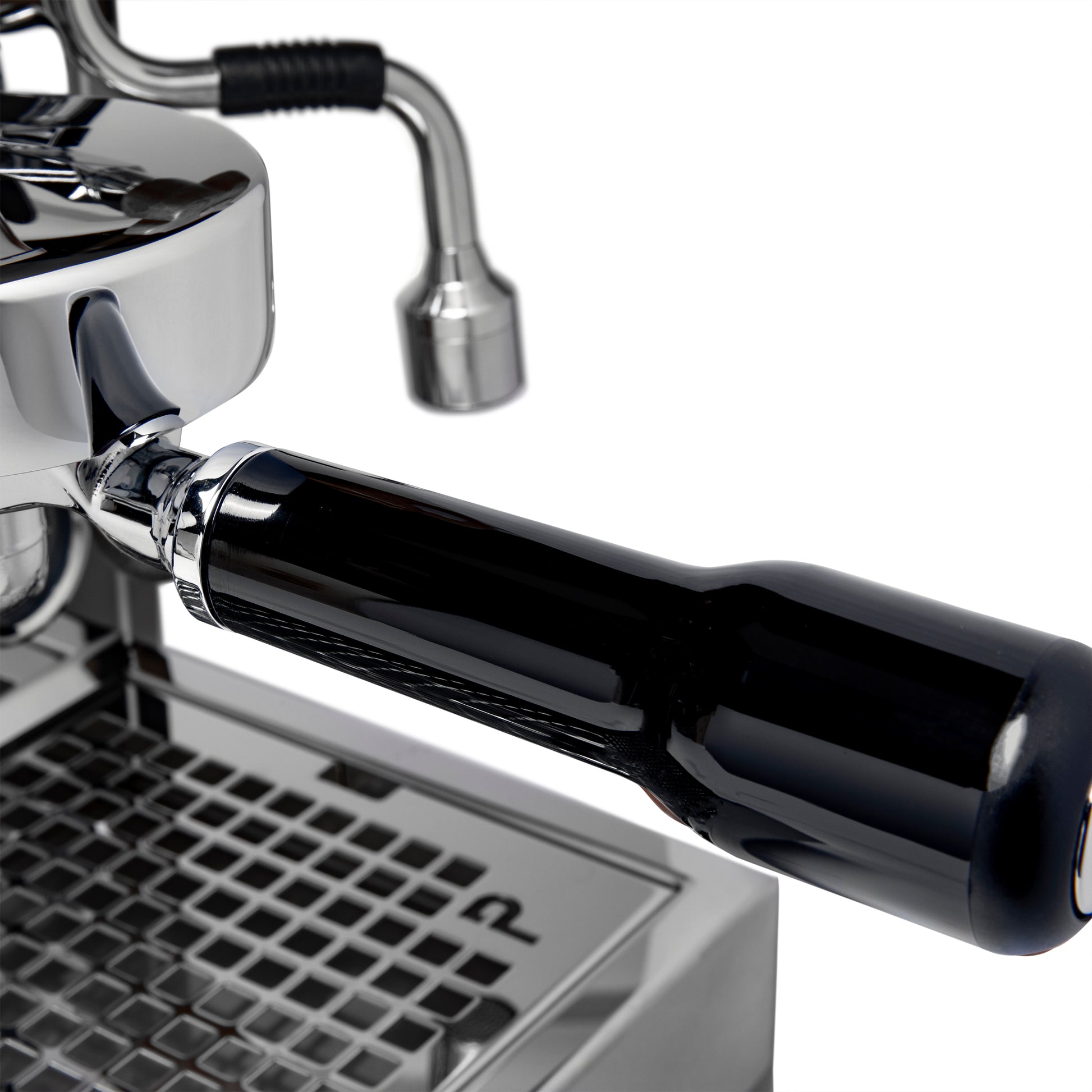

Profitec Bottomless Portafilter

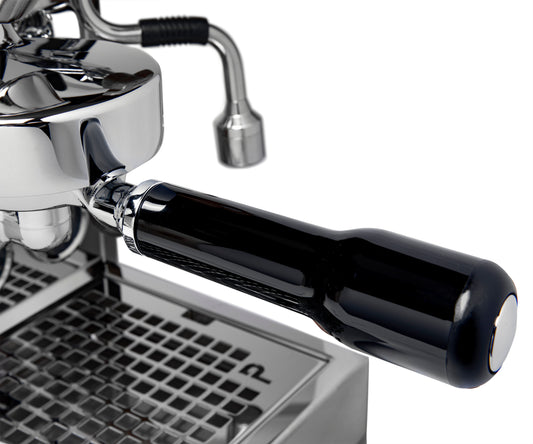

Profitec Double-Spout Portafilter
7-Gram Single-Shot Filter Basket
14-Gram Double-Shot Filter Basket
Backflush Disc
58mm Tamper w/Stainless Base
Brew Group Cleaning Brush
User Manual
Click the "Launch 3D Viewer" button to open the 3D model viewer and freely rotate or zoom in on a full 3D model of the product. Desktop is limited to the 3D model only, but with a compatible mobile device or tablet, you can get the true experience with Augmented Reality and view the product in your own home.
Using your mouse, you can click and drag to rotate the product in any direction. Using the scroll wheel, you can zoom in and out. Desktop is limited to the 3D model only, but with a compatible mobile device or tablet, you can get the true experience with Augmented Reality and view the product in your own home.
In the 3D viewer, you can tap and drag to rotate the product in any direction. Pinch to zoom in and out. Tap the icon on the bottom right of the viewer to view in full screen and, if your device is compatible, activate Augmented Reality. In Augmented Reality, you can tap and drag to reposition the model, tap and hold and move your camera to reposition the model, and pinch to zoom in and out.
Click and Drag in any direction
Scroll up and down to zoom in and out
If you have AR support you can view in Augmented Reality
Click and Drag in any direction
Scroll up and down to zoom in and out
Grey Limbo
Kitchen
Highrise
Lounge
Click the "Launch 3D Viewer" button to open the 3D model viewer and freely rotate or zoom in on a full 3D model of the product. Desktop is limited to the 3D model only, but with a compatible mobile device or tablet, you can get the true experience with Augmented Reality and view the product in your own home.
Disclaimer: All 3d Models and renderings provided by Whole Latte Love are artist's impressions and are intended for entertainment purposes only. Models may not be to scale, color may vary between devices. Augmented Reality (AR) is not compatible with all mobile devices.
Property | Value |
---|---|
SKU | PTPRO500PIDFC |
Boiler Configuration | Heat Exchanger |
Number of Boilers | 1 |
Boiler Features | Brew & Steam Simultaneously,Rapid Steam |
Brew Boiler Auto-Fill | Yes |
Brew Boiler Heater Location | Internal |
Brew Boiler Insulation | Yes |
Brew Boiler Material | Stainless Steel |
Brew Boiler Orientation | Horizontal |
Three-Way Valve | Automatic |
Back Flush Capable | Yes |
Brew Group Material | Chrome Plated Brass |
Brew Group Size (mm) | 58 mm |
Brew Group Type | E61 |
Brew Boiler Wattage | 1400 |
Recommended Application | Home / Residential |
NSF Certified | No |
Display Type | Indicator Lights |
Controls and Additional Features | Low-Water Warning,Power Light,Pressure Gauge(s),Steam Control |

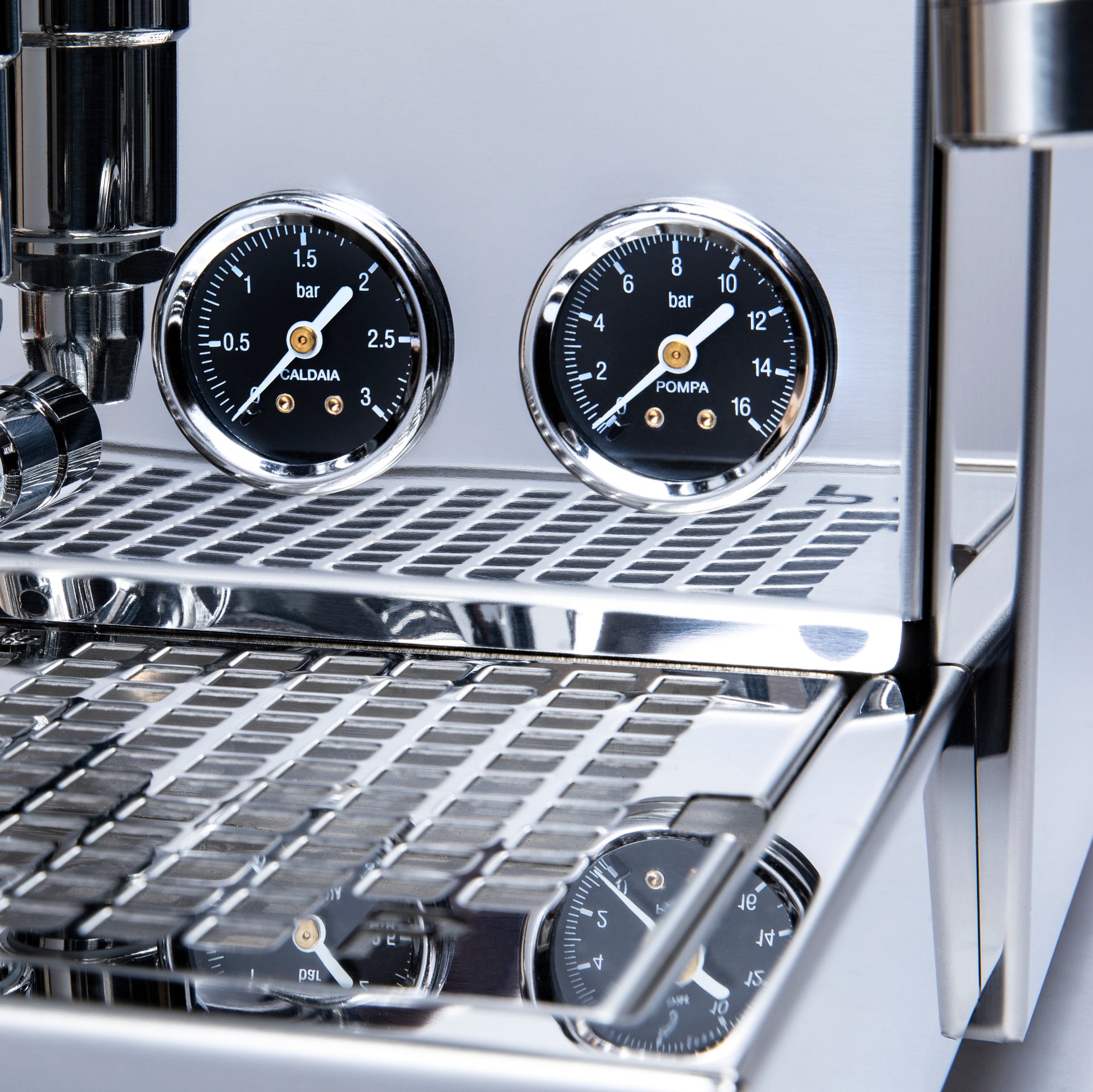

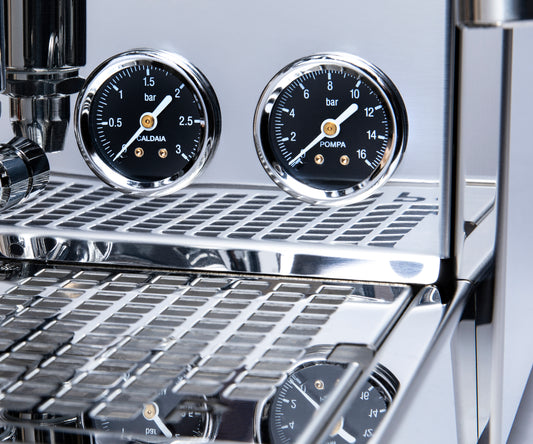

Pressure Gauges | Brew Circuit,Steam Boiler |
Type of Controls | Lever,PID,Toggle Switch |
Cup Height (max, inches) | 3.25 in |
Cup Warmer Material | Stainless Steel |
Cup Warmer | Passively Heated |
Drain Line Adaptable (Plumbable) | No |
Drip Tray Capacity (oz) | 32 fl-oz |
Drip Tray Cover Material | Stainless Steel |

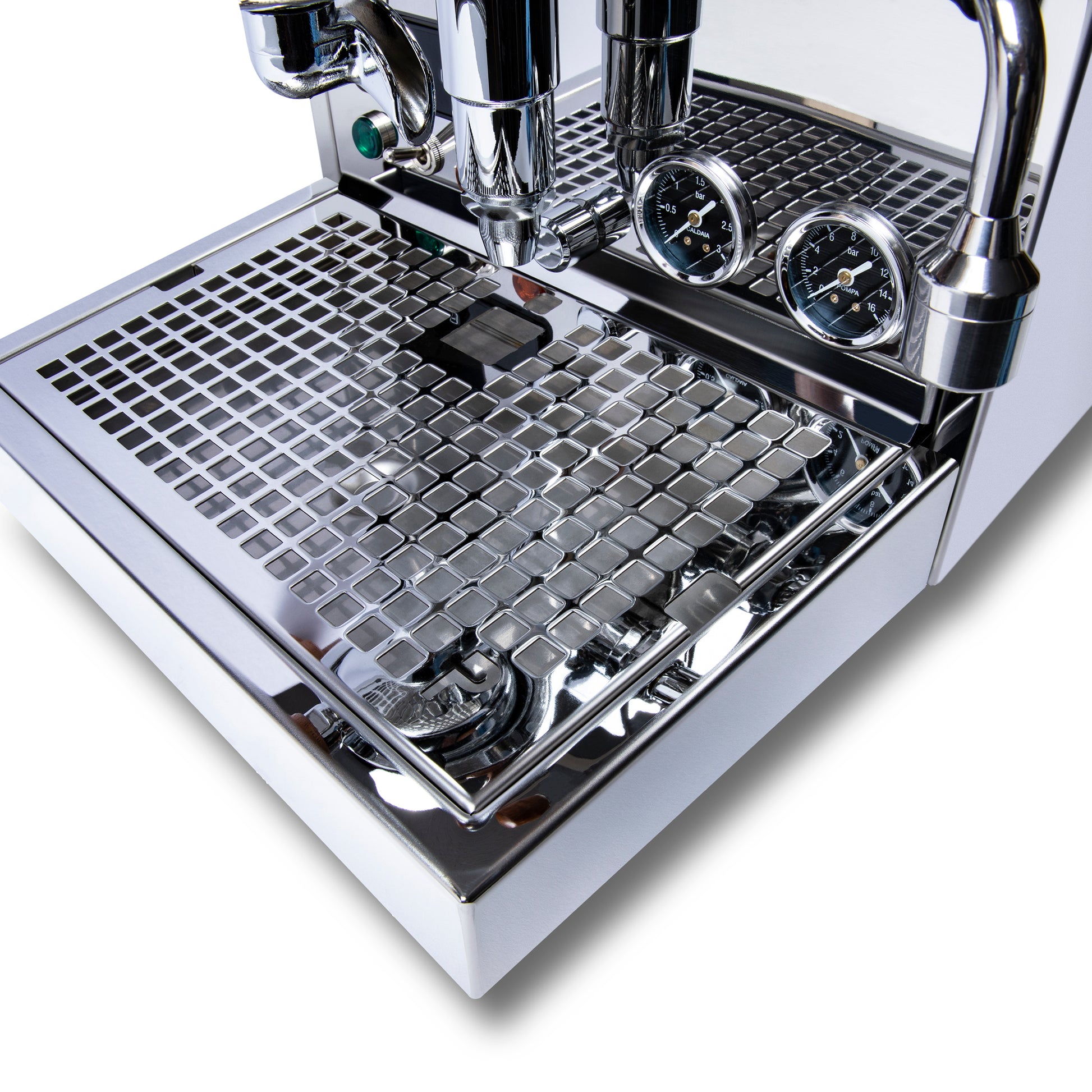

Drip Tray Material | Stainless Steel |
Removable Drip Tray | Yes |
Portafilter Baskets Included | Double,Single |
Frame Material | Steel |
Housing Color | Stainless Steel |
Housing Material | Stainless Steel |
Recommended Descaler Type | Durgol Swiss Espresso Descaler |
Recommended Water Filter | BWT Bestsave M Anti Scale Filter |
Depth (Inches) | 17.6 |
Height (Inches) | 15.47 |
Weight (Lbs) | 52 |
Width (Inches) | 11.9 |
Bottomless Portafilter Available | Included |
Filter Diameter (mm) | 58 mm |
Property | Value |
---|---|
Portafilter Handle Material | Plastic |
Portafilter Material | Chrome Plated Brass |
Number of Portafilters Included | 2 (Double, Bottomless) |
Ground, E.S.E., Pod and Capsule Compatibility | Ground Coffee |
Portafilter Type | Commercial Style |
Portafilter Weight (lbs) | 1.25 lbs |
Portafilter Diameter | 58 mm |
Adjustable Brew Pressure | Yes |
Pump Pressure (Max. Bar) | 15 Bar |
Pump Type | Vibration |
Pump Wattage | 52 watts |
Warranty Service Provider Email | support@wholelattelove.com |
Warranty Service Provider | Whole Latte Love |
Warranty Service Provider Phone Number | 888-411-5282 |
Manufacturers Warranty Period | 3-Year Parts and Labor Warranty |
Volt | 110V-120V (US) |
Watts | 1400 Watt |
Power Cord Length (inches) | 48 in |
Power Cord Storage | No |
Steam Boiler Auto-Fill | Yes |
Steam Boiler Heater Location | Internal |
Steam Boiler Insulation | Yes |
Steam Boiler Material | Stainless Steel |
Steam Boiler Orientation | Horizontal |
Steam Boiler Volume (Oz) | 67.6 fl-oz |
Steam Boiler Vacuum Relief Valve | Yes |
Steam Boiler Wattage | 1400 Watt |
Steam Wand Features | Insulated Grip,No-Burn,Swappable Steam Tips |
Height Off Counter (Inches) | 6.5 in |
Steam Tip Hole Count | 2 |
Steam Wand Material | Stainless Steel |
Steam Wand Movement Type | Fully Articulated |
Steam Wand | Commercial |
Steam Wand Usable Length | 3.75 in |
Water Reservoir Access Location | Top |
Water Reservoir Capacity | 101 fl-oz |
Water Reservoir Features | BPA-Free,Removable |
Water Reservoir Material | Plastic |
Water Filter Included | No |
Water Source | Built-In Reservoir |
