Profitec Pro 800 Part Diagram PRO800
This is the Profitec Pro 800 Part Diagram PRO800. In the list below, you will find all the parts associated with the diagram that are available. Use the parts diagram to determine the part(s) you need.
If the part listed below is not viewable then we do not carry it at this time. However, if your machine is currently in production we are likely able to acquire the part directly from the manufacturer. In this case, contact us by submitting a support ticket. Please be advised that it may take up to eight weeks for us to receive the part from the manufacturer.
Please note: Parts are neither returnable nor refundable. If you need assistance selecting a part for your machine, please submit a support ticket.-
-
-
-
-
-
| Diagram # | Pos # | Image | Description | Price |
|---|
| Diagram # | Pos # | Image | Description | Price | |
|---|---|---|---|---|---|

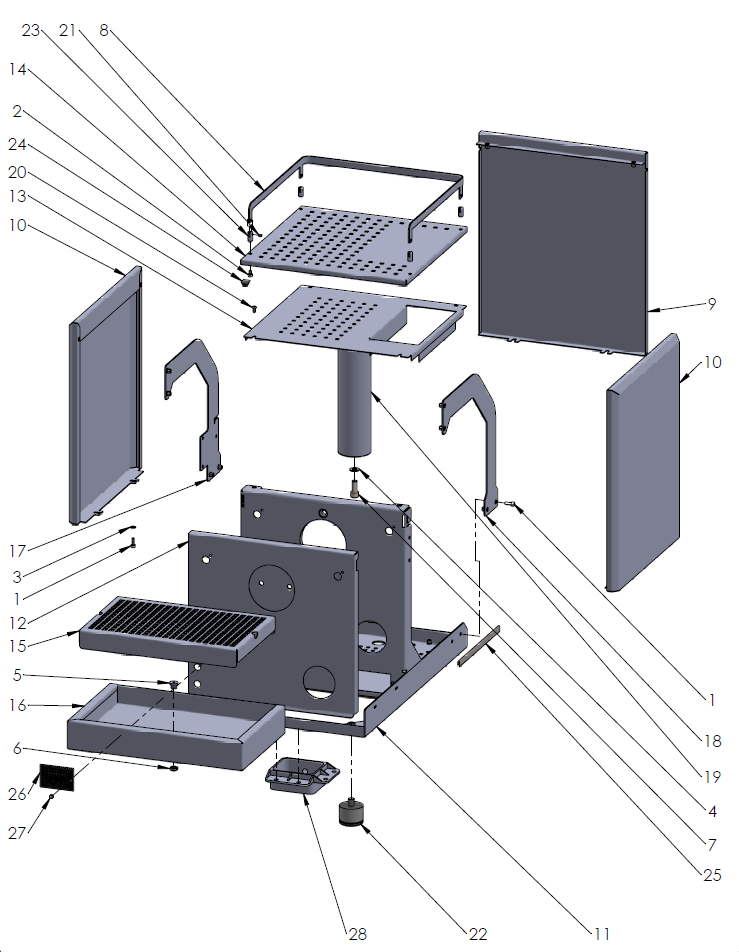

| PRO800-1 | 1 | Screw cylinder M4x16
Part Number: P1996 |
|||
| PRO800-1 | 2 |
|
Screw cylinder M4x6 Part Number: B7826212 |
$5.51 | View Part |
| PRO800-1 | 3 | Flat washer
Part Number: P2009 |
|||
| PRO800-1 | 4 | Flat washer 0 8
Part Number: P2010 |
|||
| PRO800-1 | 5 |
|
Blind plug 1/8"M Part Number: P2058 |
$7.16 | View Part |
| PRO800-1 | 6 |
|
Hexagon nut (half) 1/8" Part Number: P2067 |
$6.20 | View Part |
| PRO800-1 | 7 | Screw cylinder M8x20 A2
Part Number: P2073 |
|||
| PRO800-1 | 8 | Railing cup warming tray Part Number: P2115 |
$113.80 | View Part | |
| PRO800-1 | 9 | Rear panel Part Number: P2116 |
$273.60 | View Part | |
| PRO800-1 | 10 | Side panel left/right
Part Number: P2117 |
|||
| PRO800-1 | 11 | Base frame Part Number: P2170 |
$152.52 | View Part | |
| PRO800-1 | 12 | Front panel Part Number: P2171 |
$47.60 | View Part | |
| PRO800-1 | 13 | Cup warming tray lower Part Number: P2172 |
$86.84 | View Part | |
| PRO800-1 | 14 | Cup warming tray upper, removeable Part Number: P2173 |
$88.80 | View Part | |
| PRO800-1 | 15 | Grid drip tray
Part Number: P2175 |
|||
| PRO800-1 | 16 | Drip tray
Part Number: P2176 |
|||
| PRO800-1 | 17 | Reinforcement plate left
Part Number: P2177 |
|||
| PRO800-1 | 18 | Reinforcement plate right
Part Number: P2178 |
|||
| PRO800-1 | 19 | Balance weight
Part Number: P2556 |
|||
| PRO800-1 | 20 |
|
Lens screw M4x10 Part Number: P2022 |
$5.37 | View Part |
| PRO800-1 | 21 |
|
Allen screw M3x3 Part Number: P6112 |
$5.16 | View Part |
| PRO800-1 | 22 |
|
Foot h=30mm Part Number: P7025 |
$28.46 | View Part |
| PRO800-1 | 23 |
|
Post railing cup warming tray Part Number: P8104 |
$18.43 | View Part |
| PRO800-1 | 24 |
|
Foot cup warming tray 12x12 Part Number: B7474212 |
$7.35 | View Part |
| PRO800-1 | 25 | Guide rail drip tray
Part Number: P2170.1 |
|||
| PRO800-1 | 26 |
|
Emblem Profitec Part Number: P2063 |
$10.00 | View Part |
| PRO800-1 | 27 |
|
Blind rivet truss head 3x8 Part Number: P1999 |
$5.14 | View Part |
| PRO800-1 | 28 |
|
Drainage plastic base Part Number: P2505 |
$16.87 | View Part |

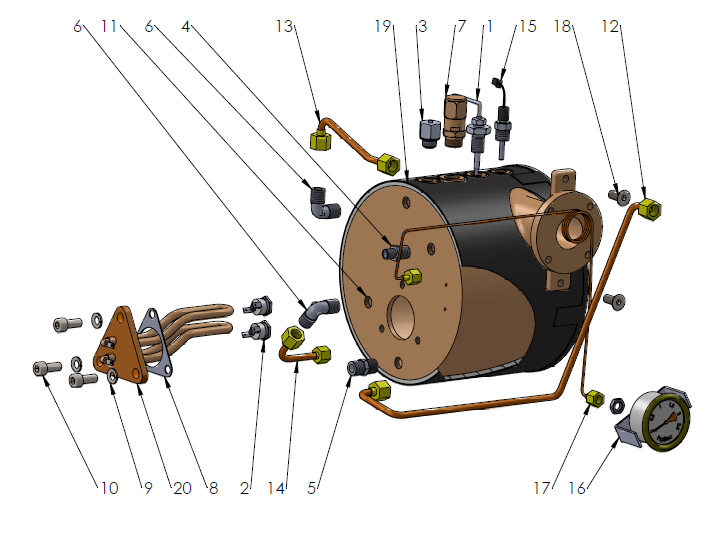

| PRO800-2 | 1 | Filling level probe l=120 Part Number: C199900214 |
$40.28 | View Part | |
| PRO800-2 | 2 | Safety thermostat 145C Part Number: C199901550.1 |
$13.28 | View Part | |
| PRO800-2 | 3 | Anti-vacuum valve 1/4"M Part Number: C219900561 |
$18.29 | View Part | |
| PRO800-2 | 4 |
|
Nipple 1/4"M 1/8"M Part Number: C229900519 |
$10.00 | View Part |
| PRO800-2 | 5 | Nipple 1/4"MM Part Number: C229900520 |
$10.00 | View Part | |
| PRO800-2 | 6 | Elbow 1/4"MM Part Number: C229900525 |
$9.87 | View Part | |
| PRO800-2 | 7 |
|
Safety valve 3/8"M Part Number: C229900559 |
$33.06 | View Part |
| PRO800-2 | 8 |
|
Teflon gasket heating element Part Number: C469900779 |
$16.56 | View Part |
| PRO800-2 | 9 |
|
Spring ring M8 Part Number: P2011 |
$5.61 | View Part |
| PRO800-2 | 10 | Screw cylinder M8x20 A2
Part Number: P2073 |
|||
| PRO800-2 | 11 | Boiler
Part Number: P2507 |
|||
| PRO800-2 | 12 | Hot water extraction tube
Part Number: P2527 |
|||
| PRO800-2 | 13 | Steam extraction tube
Part Number: P2528 |
|||
| PRO800-2 | 14 | Boiler loading tube
Part Number: P2529 |
|||
| PRO800-2 | 15 | Temperature sensor 1/4"M Part Number: P6037 |
$46.76 | View Part | |
| PRO800-2 | 16 | Boiler pressure gauge =50, 0-2,5 bar Part Number: P2501 |
$40.00 | View Part | |
| PRO800-2 | 17 |
|
Capillary tube boiler pressure gauge Part Number: P6051 |
$18.43 | View Part |
| PRO800-2 | 18 | Screw countersunk head M8x20
Part Number: P6115 |
|||
| PRO800-2 | 19 | Isolation boiler
Part Number: P7054 |
|||
| PRO800-2 | 20 | Heating element 230V 1600W
Part Number: P9247 |
|||
| PRO800-2 |
|
Heating element 110V 1500W Part Number: US1055 |
$91.26 | View Part | |

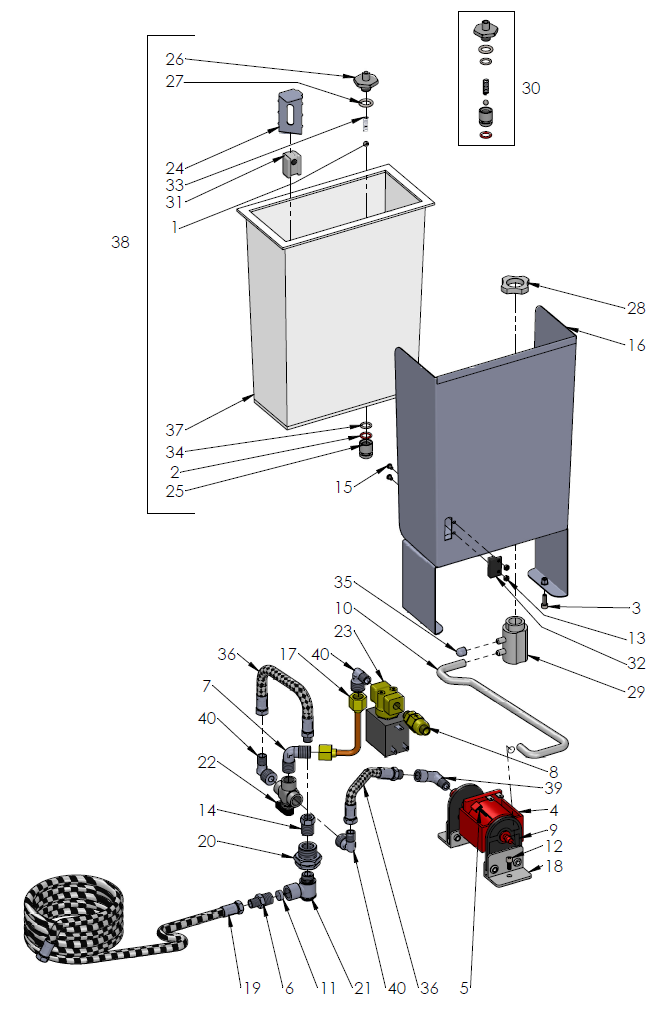

| PRO800-3 | 1 |
|
Ball water tank lock Part Number: B5471509 |
$6.53 | View Part |
| PRO800-3 | 2 |
|
Seal water tank adapter lower Part Number: B7496076 |
$5.82 | View Part |
| PRO800-3 | 3 |
|
Screw cylinder head M4x10 Part Number: P2006 |
$5.41 | View Part |
| PRO800-3 | 4 | Vibration pump 230V 50Hz
Part Number: C199900286 |
|||
| PRO800-3 | Vibration pump 120V 60Hz Part Number: US1001 |
$52.76 | View Part | ||
| PRO800-3 | Vibration pump 100V 60Hz
Part Number: US1025 |
||||
| PRO800-3 | 5 |
|
Thermostat vibration pump Part Number: C199900969 |
$9.94 | View Part |
| PRO800-3 | 6 |
|
Nipple 1/4"M 1/8"M Part Number: C229900519 |
$10.00 | View Part |
| PRO800-3 | 7 | Elbow 1/4"MM Part Number: C229900525 |
$9.87 | View Part | |
| PRO800-3 | 8 | Non-return valve 1/8"MM Part Number: C229900548 |
$40.77 | View Part | |
| PRO800-3 | 9 |
|
Bracket vibration pump upper Part Number: C249900770 |
$8.02 | View Part |
| PRO800-3 | 10 | Silicone tube transparent 5x8
Part Number: C499900769 |
|||
| PRO800-3 | 11 |
|
Filter direct water operation Part Number: C519900369 |
$13.47 | View Part |
| PRO800-3 | 12 |
|
Screw cylinder head Part Number: P2006 |
$5.41 | View Part |
| PRO800-3 | 13 | Hexagon nut M3
Part Number: P2019 |
|||
| PRO800-3 | 14 | Reducer 1/4"M 1/8"F Part Number: P2030 |
$13.50 | View Part | |
| PRO800-3 | 15 | Screw lens M3x10
Part Number: P2021 |
|||
| PRO800-3 | 16 |
|
Water tank guide rail Part Number: P2174 |
$84.76 | View Part |
| PRO800-3 | 17 | pipe
Part Number: P2530 |
|||
| PRO800-3 | 18 | Bracket vibration pump lower Part Number: P3006.K |
$10.60 | View Part | |
| PRO800-3 | 19 | Flex hose 3/8"F 1/8"F l=1500mm Part Number: P3020 |
$48.28 | View Part | |
| PRO800-3 | 20 | Run 1/4"FF Part Number: P3023 |
$19.00 | View Part | |
| PRO800-3 | 21 |
|
Elbow 360 rotary 1/4"M 1/4"F Part Number: P3527 |
$33.06 | View Part |
| PRO800-3 | 22 | Valve 3-ways manual 1/4"FFF Part Number: P3528 |
$80.28 | View Part | |
| PRO800-3 | 23 | Solenoid valve 2-ways 1/8"FF 230V/50Hz
Part Number: P3529 |
|||
| PRO800-3 | Solenoid valve 2-ways 1/8"FF 110V/60Hz
Part Number: US1002 |
||||
| PRO800-3 | 24 |
|
Cap floater water tank Part Number: P6016 |
$11.29 | View Part |
| PRO800-3 | 25 |
|
Water tank adapter union Part Number: P6017 |
$11.20 | View Part |
| PRO800-3 | 26 |
|
Water tank adapter hexagon mounting nut Part Number: P6020 |
$13.68 | View Part |
| PRO800-3 | 27 | Seal water tank adapter upper
Part Number: P6020.3 |
|||
| PRO800-3 | 28 |
|
Water tank adapter nut connector Part Number: P6020.K3 |
$8.98 | View Part |
| PRO800-3 | 29 |
|
Water tank adapter connector Part Number: P6020.K4 |
$8.98 | View Part |
| PRO800-3 | 30 | Water tank adapter complete Part Number: P6020.NK |
$28.43 | View Part | |
| PRO800-3 | 31 | Floater water tank Part Number: P6021 |
$18.26 | View Part | |
| PRO800-3 | 32 | Reed sensor low water switch-off Part Number: P6022 |
$38.18 | View Part | |
| PRO800-3 | 33 |
|
Spring water tank lock Part Number: P6023 |
$7.76 | View Part |
| PRO800-3 | 34 |
|
Seal water tank adapter middle Part Number: P6025 |
$5.22 | View Part |
| PRO800-3 | 35 |
|
Closure cap water tank adapter Part Number: P6026 |
$6.00 | View Part |
| PRO800-3 | 36 |
|
Flex hose 1/8"M 1/8"F l=180mm Part Number: P8012 |
$15.68 | View Part |
| PRO800-3 | 37 | Water tank blank Part Number: P9010 |
$38.35 | View Part | |
| PRO800-3 | 38 | Water tank complete
Part Number: P9010.K1 |
|||
| PRO800-3 | 39 | Elbow 1/8"MM Part Number: C229900579 |
$11.69 | View Part | |
| PRO800-3 | 40 |
|
Elbow 1/4"M 1/8"M Part Number: P9015 |
$14.56 | View Part |

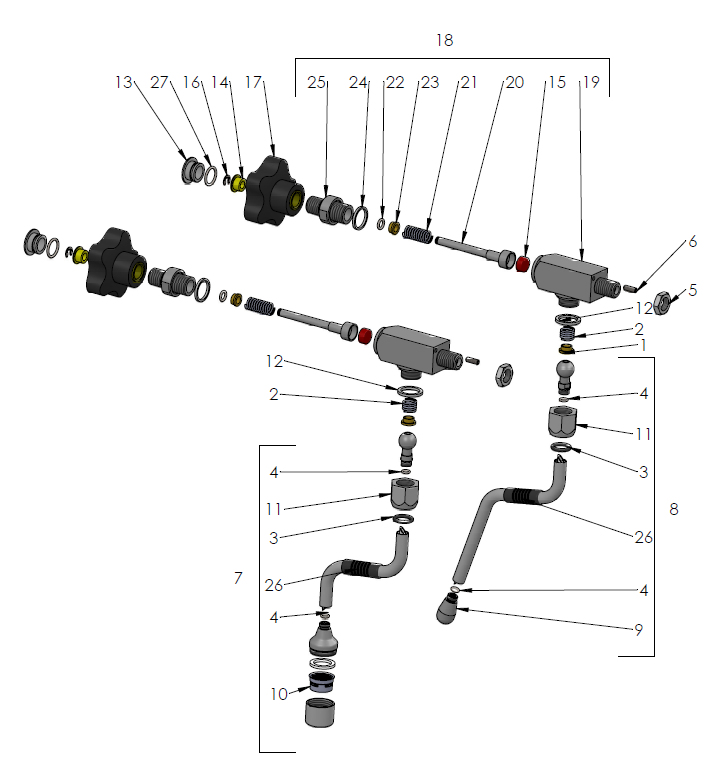

| PRO800-4 | 1 |
|
Socket steam-/hot water valve Part Number: B5220606 |
$6.08 | View Part |
| PRO800-4 | 2 | Spring steam-/hot water valve
Part Number: B5471532 |
|||
| PRO800-4 | 3 | OR sight glass Part Number: B7496073 |
$6.08 | View Part | |
| PRO800-4 | 4 | Gasket joint transition
Part Number: B7496083 |
|||
| PRO800-4 | 5 |
|
Half nut 1/4 Part Number: C329900682 |
$5.82 | View Part |
| PRO800-4 | 6 | Headless screw M4x12
Part Number: G1032 |
|||
| PRO800-4 | 7 |
|
Hot water wand Part Number: P2540 |
$129.30 | View Part |
| PRO800-4 | 8 |
|
Steam wand Part Number: P2541 |
$129.30 | View Part |
| PRO800-4 | 9 | Steam nozzle 4 holes Part Number: P2542 |
$16.88 | View Part | |
| PRO800-4 |
|
Steam nozzle 2 holes Part Number: P2543 |
$15.88 | View Part | |
| PRO800-4 | 10 | Colander hot water outlet Part Number: P6001.2 |
$7.44 | View Part | |
| PRO800-4 | 11 | Nut steam/hot water wand Part Number: P6002.5 |
$10.58 | View Part | |
| PRO800-4 | 12 |
|
Gasket teflon nut-valve Part Number: P6015 |
$6.67 | View Part |
| PRO800-4 | 13 |
|
Cover valve handle Part Number: P8103 |
$11.73 | View Part |
| PRO800-4 | 14 | Spacer valve Part Number: P8105 |
$6.06 | View Part | |
| PRO800-4 | 15 |
|
Gasket vavle spindle Part Number: P8106.1 |
$8.33 | View Part |
| PRO800-4 | 16 | Circlip valve spindle
Part Number: P8106.2 |
|||
| PRO800-4 | 17 |
|
Rotary handle Part Number: P8107 |
$43.38 | View Part |
| PRO800-4 | 18 |
|
Valve steam/hot water Part Number: P8108 |
$114.48 | View Part |
| PRO800-4 | 19 | Valve corpus
Part Number: P8108.1 |
|||
| PRO800-4 | 20 | Valve spindle Part Number: P8108.2 |
$17.44 | View Part | |
| PRO800-4 | 21 | Spring valve spindle
Part Number: P8108.4 |
|||
| PRO800-4 | 22 |
|
O-ring valve spindle Part Number: P8108.5 |
$8.00 | View Part |
| PRO800-4 | 23 | Socket valve spindle
Part Number: P8108.6 |
|||
| PRO800-4 | 24 | Gasket teflon connector
Part Number: P8108.7 |
|||
| PRO800-4 | 25 | Connector valve handle-valve corpus
Part Number: P8108.8 |
|||
| PRO800-4 | 26 |
|
Rubber insulation Part Number: P8110 |
$7.42 | View Part |
| PRO800-4 | 27 |
|
Gasket cover valve handle Part Number: P8111 |
$6.32 | View Part |

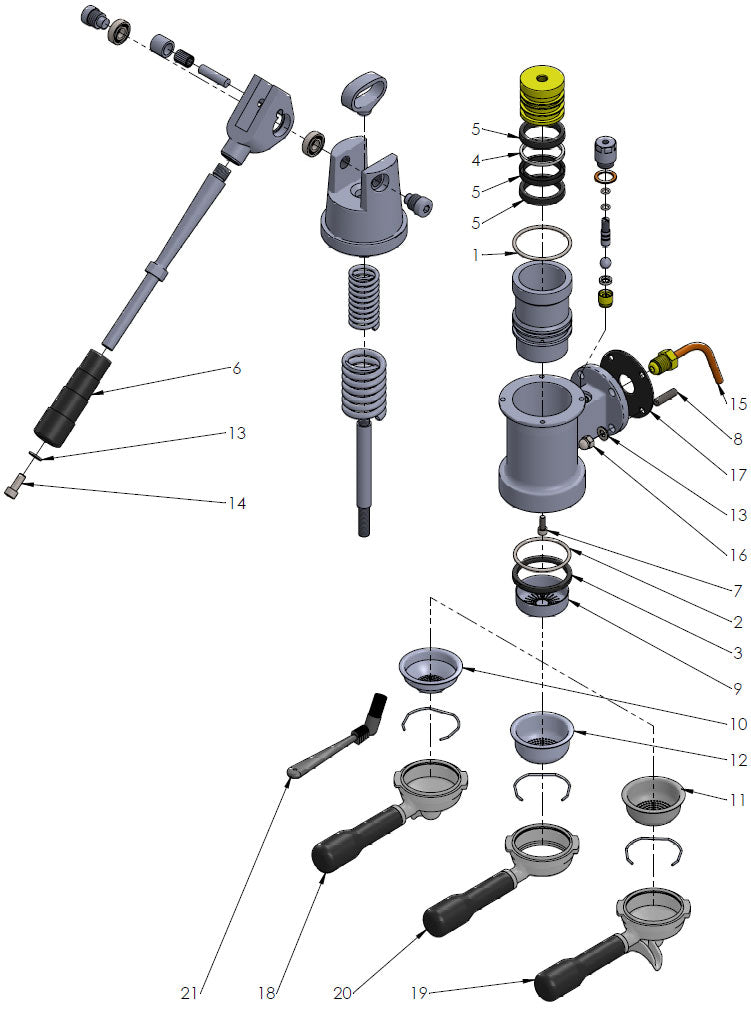

| PRO800-5 | 1 | O-Ring 58,74 x 3,53 Part Number: P1012.3 |
$9.38 | View Part | |
| PRO800-5 | 2 |
|
O-Ring 57,15 x 3,53 Part Number: P1012.4 |
$9.38 | View Part |
| PRO800-5 | 3 | Group gasket Part Number: P2533 |
$10.50 | View Part | |
| PRO800-5 | 4 | Gasket teflon piston Part Number: P1012.2 |
$13.34 | View Part | |
| PRO800-5 | 5 |
|
Gasket piston Part Number: P1012.1 |
$8.35 | View Part |
| PRO800-5 | 6 |
|
Handle plastic Part Number: P1012.5 |
$14.46 | View Part |
| PRO800-5 | 7 | Screwcylinder head M5x16
Part Number: P1985 |
|||
| PRO800-5 | 8 |
|
Allen set screw M8x31 Part Number: C309900131 |
$5.88 | View Part |
| PRO800-5 | 9 |
|
Shower screen Part Number: C519900103 |
$15.20 | View Part |
| PRO800-5 | 10 | Filter 7g
Part Number: C619900104 |
|||
| PRO800-5 | 11 |
|
Filter 14g Part Number: C619900105 |
$22.86 | View Part |
| PRO800-5 | 12 | Filter 21g Part Number: C619900107 |
$9.99 | View Part | |
| PRO800-5 | 13 | Flat washer M8
Part Number: P2010 |
|||
| PRO800-5 | 14 | Screw cylinder head M8x20
Part Number: P2073 |
|||
| PRO800-5 | 15 | Inlet pipe brewing group (dipper) M18 M
Part Number: P2526 |
|||
| PRO800-5 | 16 |
|
Cap Nut M8 Part Number: P2531 |
$5.44 | View Part |
| PRO800-5 | 17 | Gasket group-boiler Part Number: P2532 |
$13.81 | View Part | |
| PRO800-5 | 18 | Portafilter 1 spout Part Number: Pr5160 |
$65.44 | View Part | |
| PRO800-5 | 19 |
|
Portafilter 2 spouts Part Number: Pr5170 |
$65.44 | View Part |
| PRO800-5 | 20 |
|
Portafilter bottomless Part Number: Pr5180 |
$64.42 | View Part |
| PRO800-5 | 21 |
|
Cleaning brush brew group Part Number: R210 |
$10.46 | View Part |

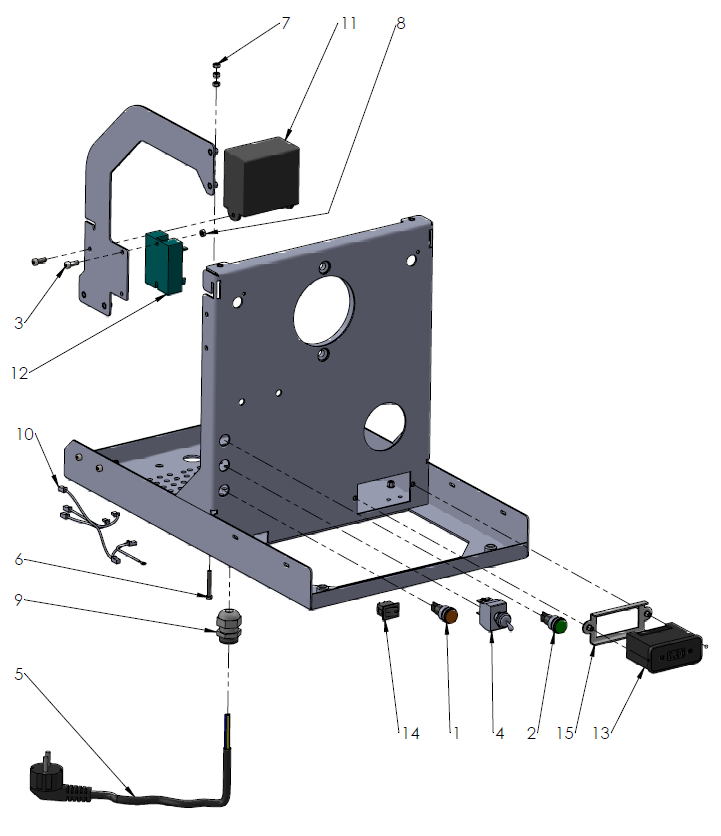

| PRO800-6 | 1 | Control lamp orange Part Number: B7633617 |
$18.74 | View Part | |
| PRO800-6 | 2 | Control lamp green Part Number: B7633618 |
$14.38 | View Part | |
| PRO800-6 | 3 | Screw cylinder head M4x12
Part Number: B7819901 |
|||
| PRO800-6 | 4 | Power switch metal Part Number: C199900087 |
$44.81 | View Part | |
| PRO800-6 | 5 | Power cable Schuko-plug l=1500 3x1,5
Part Number: C199900957 |
|||
| PRO800-6 | Power cable AU-plug l=1500 3x1,5
Part Number: P2036 |
||||
| PRO800-6 | Power cable US-plug l=1500 3x14AWG Part Number: P2034 |
$16.88 | View Part | ||
| PRO800-6 | Power cable UK-plug l=1800 3x1,5
Part Number: P2035 |
||||
| PRO800-6 | 6 | Screw M4x30
Part Number: P2001 |
|||
| PRO800-6 | 7 | Heaxagon nut M4
Part Number: P2026 |
|||
| PRO800-6 | 8 | Brass nut M4
Part Number: P2026 |
|||
| PRO800-6 | 9 | Cable clip with hexagon nut Part Number: P2070 |
$8.57 | View Part | |
| PRO800-6 | 10 | Cable harness
Part Number: P2590 |
|||
| PRO800-6 | 11 | Electronic 220V-240V
Part Number: P4101 |
|||
| PRO800-6 | Electronic 115V Part Number: US1051 |
$115.50 | View Part | ||
| PRO800-6 | 12 |
|
Static relais Part Number: P6031 |
$97.14 | View Part |
| PRO800-6 | 13 |
|
Thermo PID Part Number: P6035 |
$106.20 | View Part |
| PRO800-6 |
|
Thermo PID US 115V Part Number: US1041 |
$106.20 | View Part | |
| PRO800-6 | 14 |
|
Switch 0/1 Part Number: P9114 |
$25.57 | View Part |
| PRO800-6 | 15 | Bracket PID
Part Number: P2170.2 |
