Quick Mill Vetrano Part Diagram 0995
This is the Quick Mill Vetrano Part Diagram 0995. In the list below, you will find all the parts associated with the diagram that are available. Use the parts diagram to determine the part(s) you need.
If the part listed below is not viewable then we do not carry it at this time. However, if your machine is currently in production we are likely able to acquire the part directly from the manufacturer. In this case, contact us by submitting a support ticket. Please be advised that it may take up to eight weeks for us to receive the part from the manufacturer.
Please note: Parts are neither returnable nor refundable. If you need assistance selecting a part for your machine, please submit a support ticket.Diagram # | Pos # | Image | Description | Price |
---|
Diagram # | Pos # | Image | Description | Price | |
---|---|---|---|---|---|

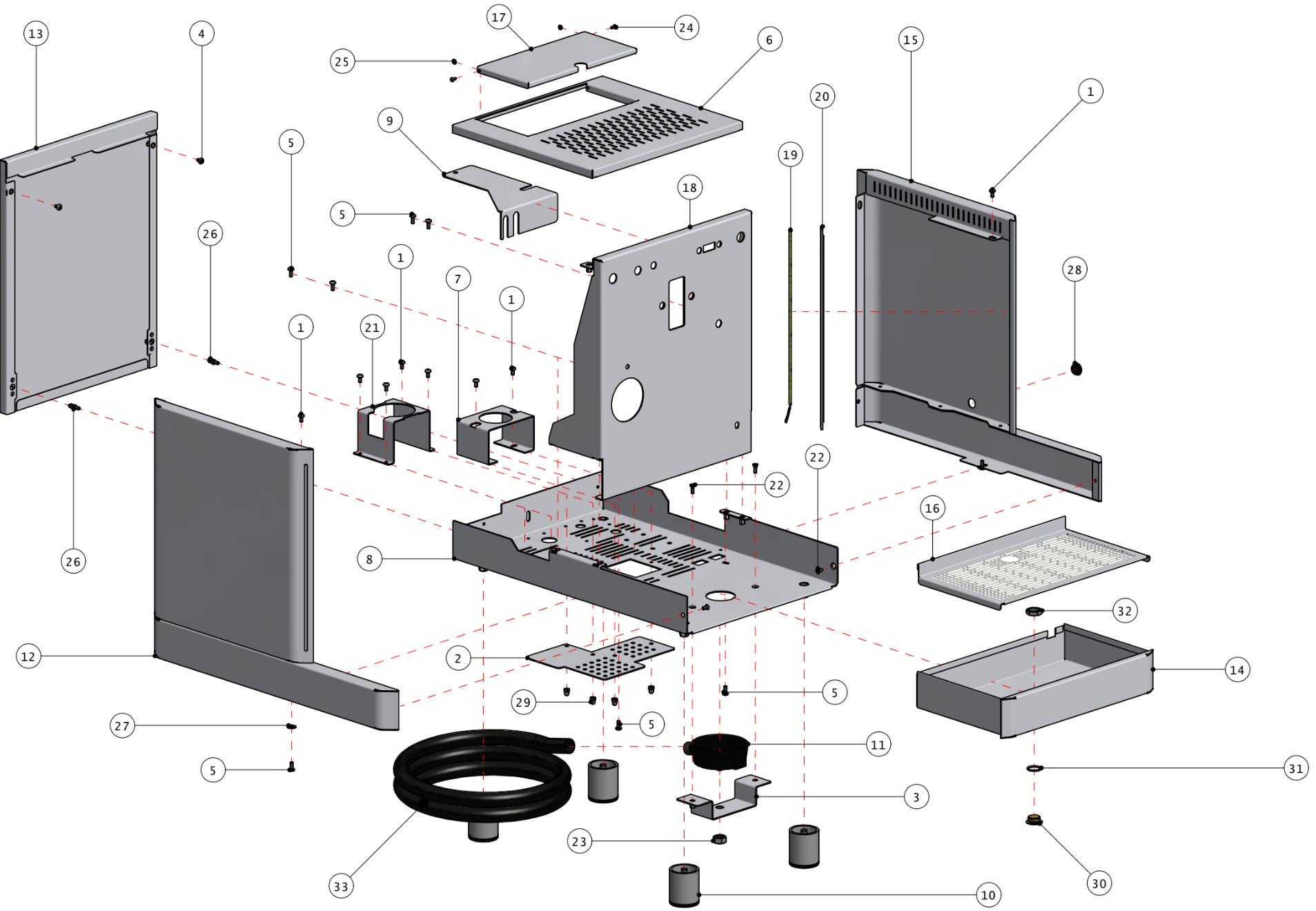

0995-1 | 1 | Quick Mill VII48 Part Number: VII48 |
$5.38 | View Part | |
0995-1 | 2 | Quick Mill AC0995TRL
Part Number: AC0995TRL |
|||
0995-1 | 3 | Quick Mill AC0995SVS
Part Number: AC0995SVS |
|||
0995-1 | 4 | Quick Mill VII44
Part Number: VII44 |
|||
0995-1 | 5 | Quick Mill VII21
Part Number: VII21 |
|||
0995-1 | 6 | Quick Mill AC0995CSNP Part Number: AC0995CSNP |
$0.00 | View Part | |
0995-1 | 7 | Quick Mill AC0995CCA
Part Number: AC0995CCA |
|||
0995-1 | 8 | Quick Mill AC0995BSPL Part Number: AC0995BSPL |
$299.24 | View Part | |
0995-1 | 9 | Quick Mill AC0995BPP
Part Number: AC0995BPP |
|||
0995-1 | 10 | Quick Mill AC0995PFN
Part Number: AC0995PFN |
|||
0995-1 | 11 | Quick Mill PL0995VS
Part Number: PL0995VS |
|||
0995-1 | 12 | Quick Mill AC0995FSPL Part Number: AC0995FSPL |
$0.00 | View Part | |
0995-1 | 13 | Quick Mill AC0995PPP Part Number: AC0995PPP |
$118.46 | View Part | |
0995-1 | 14 | Quick Mill AC0995VRP Part Number: AC0995VRP |
$178.90 | View Part | |
0995-1 | 15 | Quick Mill AC0995FDPL Part Number: AC0995FDPL |
$262.32 | View Part | |
0995-1 | 16 | Quick Mill AC0995GPDNP Part Number: AC0995GPDNP |
$0.00 | View Part | |
0995-1 | 17 | Quick Mill AC0995SPSN18 Part Number: AC0995SPSN18 |
$0.00 | View Part | |
0995-1 | 18 | Quick Mill AC0995FRP-WLL Part Number: AC0995FRP-WLL |
$0.00 | View Part | |
0995-1 | 19 | Quick Mill PC0995LEDN
Part Number: PC0995LEDN |
|||
0995-1 | 20 | Quick Mill PL0995SL-BI
Part Number: PL0995SL-BI |
|||
0995-1 | 21 | Quick Mill AC0992CC
Part Number: AC0992CC |
|||
0995-1 | 22 | Quick Mill VII195
Part Number: VII195 |
|||
0995-1 | 23 | Quick Mill DAI10
Part Number: DAI10 |
|||
0995-1 | 24 | Quick Mill VII50
Part Number: VII50 |
|||
0995-1 | 25 | Quick Mill DAI3
Part Number: DAI3 |
|||
0995-1 | 26 | Quick Mill AC02820PS
Part Number: AC02820PS |
|||
0995-1 | 27 | Quick Mill ROBI02
Part Number: ROBI02 |
|||
0995-1 | 28 | Quick Mill GO0995TP
Part Number: GO0995TP |
|||
0995-1 | 29 | Quick Mill DA4CF
Part Number: DA4CF |
|||
0995-1 | 30 | Quick Mill OT05008TS
Part Number: OT05008TS |
|||
0995-1 | 31 | Quick Mill OR121
Part Number: OR121 |
|||
0995-1 | 32 | Quick Mill OT0995GF
Part Number: OT0995GF |
|||
0995-1 | 33 | Quick Mill TUFLESS
Part Number: TUFLESS |
|||

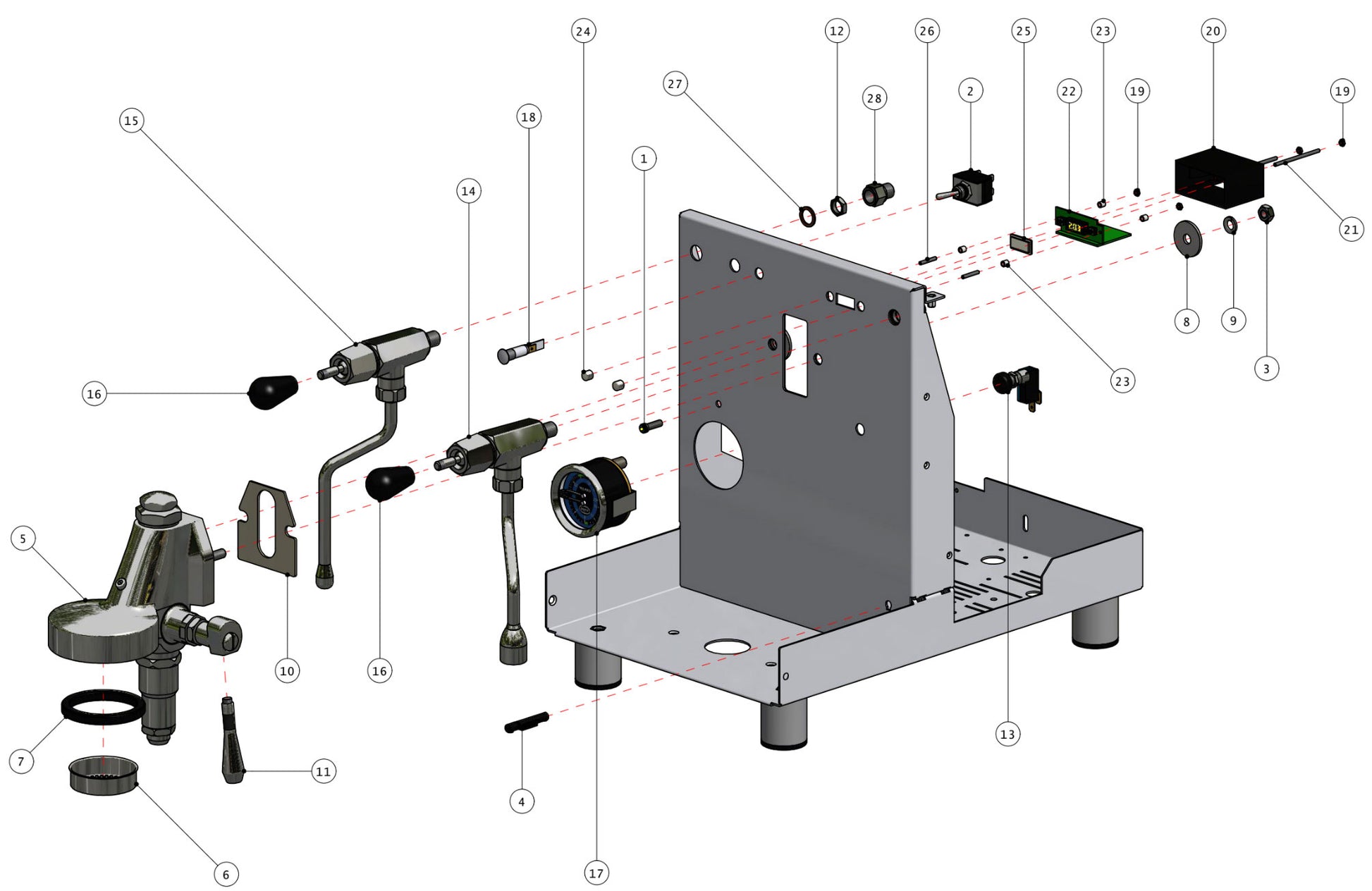

0995-2 | 1 | Quick Mill SE03035SB
Part Number: SE03035SB |
|||
0995-2 | 2 | Quick Mill IN0970B
Part Number: IN0970B |
|||
0995-2 | 3 | Quick Mill DAI8
Part Number: DAI8 |
|||
0995-2 | 4 | Quick Mill PL07000SA
Part Number: PL07000SA |
|||
0995-2 | 5 | Quick Mill OT0970GCN
Part Number: OT0970GCN |
|||
0995-2 | 6 | Quick Mill AC0970FS
Part Number: AC0970FS |
|||
0995-2 | 7 | Quick Mill GO0970GS
Part Number: GO0970GS |
|||
0995-2 | 8 | Quick Mill ROB29
Part Number: ROB29 |
|||
0995-2 | 9 | Quick Mill ROG31
Part Number: ROG31 |
|||
0995-2 | 10 | Quick Mill IS0970
Part Number: IS0970 |
|||
0995-2 | 11 | Quick Mill AC0E61LGC
Part Number: AC0E61LGC |
|||
0995-2 | 12 | Quick Mill OT0970GH
Part Number: OT0970GH |
|||
0995-2 | 13 | Quick Mill IN0970MI
Part Number: IN0970MI |
|||
0995-2 | 14 | Quick Mill OT0995RUNA
Part Number: OT0995RUNA |
|||
0995-2 | 15 | Quick Mill OT0995RUNV
Part Number: OT0995RUNV |
|||
0995-2 | 16 | Quick Mill PL0995MR
Part Number: PL0995MR |
|||
0995-2 | 17 | Quick Mill MAN0995FB
Part Number: MAN0995FB |
|||
0995-2 | 18 | Quick Mill SE0977FB
Part Number: SE0977FB |
|||
0995-2 | 19 | Quick Mill DAI3
Part Number: DAI3 |
|||
0995-2 | 20 | Quick Mill COPTERMOPID
Part Number: COPTERMOPID |
|||
0995-2 | 21 | Quick Mill TI3X55
Part Number: TI3X55 |
|||
0995-2 | 22 | Quick Mill ASSPID0995CMD
Part Number: ASSPID0995CMD |
|||
0995-2 | 23 | Quick Mill PL05001DG
Part Number: PL05001DG |
|||
0995-2 | 24 | Quick Mill AL0995TPN
Part Number: AL0995TPN |
|||
0995-2 | 25 | Quick Mill PL0960PDN
Part Number: PL0960PDN |
|||
0995-2 | 26 | Quick Mill GRI3X20
Part Number: GRI3X20 |
|||
0995-2 | 27 | Quick Mill RO0980VS
Part Number: RO0980VS |
|||
0995-2 | 28 | Quick Mill OT0980RC4
Part Number: OT0980RC4 |
|||

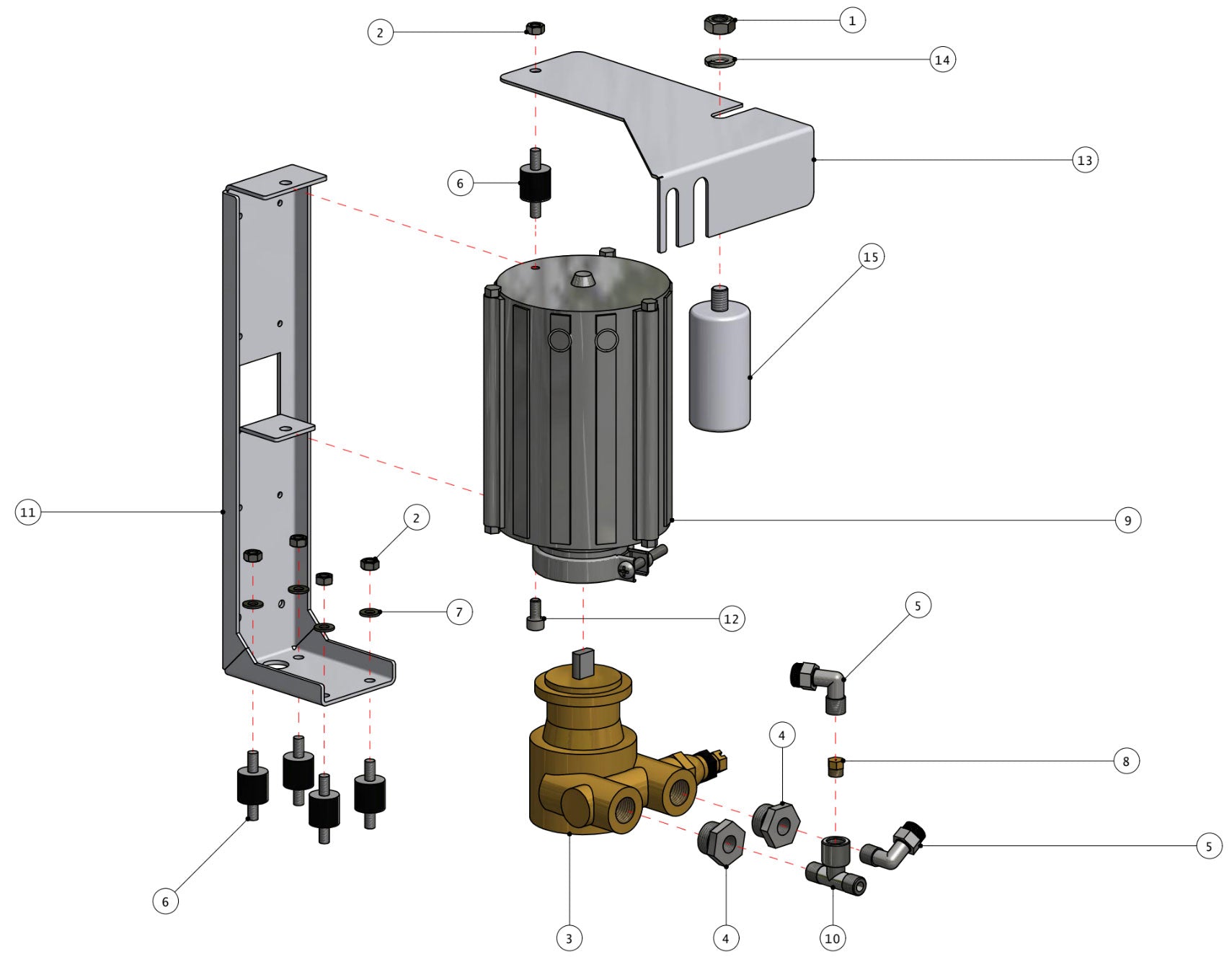

0995-3 | 1 | Quick Mill DAI8
Part Number: DAI8 |
|||
0995-3 | 2 | Quick Mill DAI5
Part Number: DAI5 |
|||
0995-3 | 3 | Quick Mill PO0995
Part Number: PO0995 |
|||
0995-3 | 4 | Quick Mill OT0995R8
Part Number: OT0995R8 |
|||
0995-3 | 5 | Quick Mill OT04010RG8
Part Number: OT04010RG8 |
|||
0995-3 | 6 | Quick Mill GO05008AN
Part Number: GO05008AN |
|||
0995-3 | 7 | Quick Mill RODI27
Part Number: RODI27 |
|||
0995-3 | 8 | Quick Mill OT0995GI
Part Number: OT0995GI |
|||
0995-3 | 9 | Quick Mill MOT0995V1
Part Number: MOT0995V1 |
|||
0995-3 | 10 | Quick Mill OT0970RT8
Part Number: OT0970RT8 |
|||
0995-3 | 11 | Quick Mill AC0995SPP
Part Number: AC0995SPP |
|||
0995-3 | 12 | Quick Mill VIB93
Part Number: VIB93 |
|||
0995-3 | 13 | Quick Mill AC0995BPP
Part Number: AC0995BPP |
|||
0995-3 | 14 | Quick Mill ROG31
Part Number: ROG31 |
|||
0995-3 | 15 | Quick Mill Y029200
Part Number: Y029200 |
|||

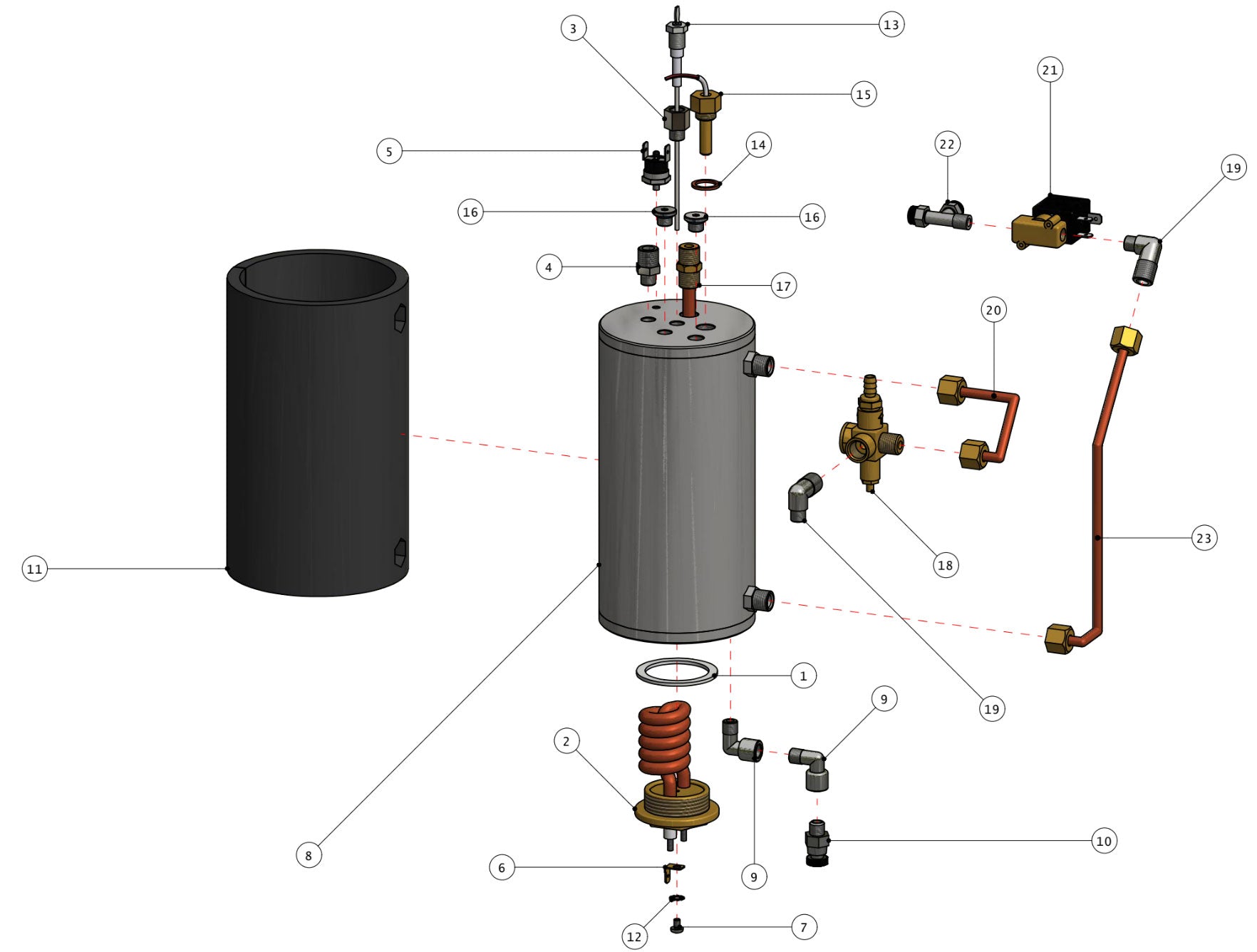

0995-4 | 1 | Quick Mill PL0980GR
Part Number: PL0980GR |
|||
0995-4 | 2 | Quick Mill RA0992REV
Part Number: RA0992REV |
|||
0995-4 | 3 | Quick Mill OT0980RC8
Part Number: OT0980RC8 |
|||
0995-4 | 4 | Quick Mill OT06000R8
Part Number: OT06000R8 |
|||
0995-4 | 5 | Quick Mill TE07100
Part Number: TE07100 |
|||
0995-4 | 6 | Quick Mill BM01009
Part Number: BM01009 |
|||
0995-4 | 7 | Quick Mill VII44
Part Number: VII44 |
|||
0995-4 | 8 | Quick Mill AC0995CV
Part Number: AC0995CV |
|||
0995-4 | 9 | Quick Mill OTO980RL8
Part Number: OTO980RL8 |
|||
0995-4 | 10 | Quick Mill OT05008RS
Part Number: OT05008RS |
|||
0995-4 | 11 | Quick Mill IS0995V
Part Number: IS0995V |
|||
0995-4 | 12 | Quick Mill RODI20
Part Number: RODI20 |
|||
0995-4 | 13 | Quick Mill SONDA
Part Number: SONDA |
|||
0995-4 | 14 | Quick Mill RO0980VS
Part Number: RO0980VS |
|||
0995-4 | 15 | Quick Mill SO0995AC-C
Part Number: SO0995AC-C |
|||
0995-4 | 16 | Quick Mill OT04010T8
Part Number: OT04010T8 |
|||
0995-4 | 17 | Quick Mill RA0980PA-OS
Part Number: RA0980PA-OS |
|||
0995-4 | 18 | Quick Mill OT0995VA2.5B
Part Number: OT0995VA2.5B |
|||
0995-4 | 19 | Quick Mill OT02820RL
Part Number: OT02820RL |
|||
0995-4 | 20 | Quick Mill RA0995TPP
Part Number: RA0995TPP |
|||
0995-4 | 21 | Quick Mill EV0995V1
Part Number: EV0995V1 |
|||
0995-4 | 22 | Quick Mill OT05500RT8
Part Number: OT05500RT8 |
|||
0995-4 | 23 | Quick Mill RA0995CCP
Part Number: RA0995CCP |
|||

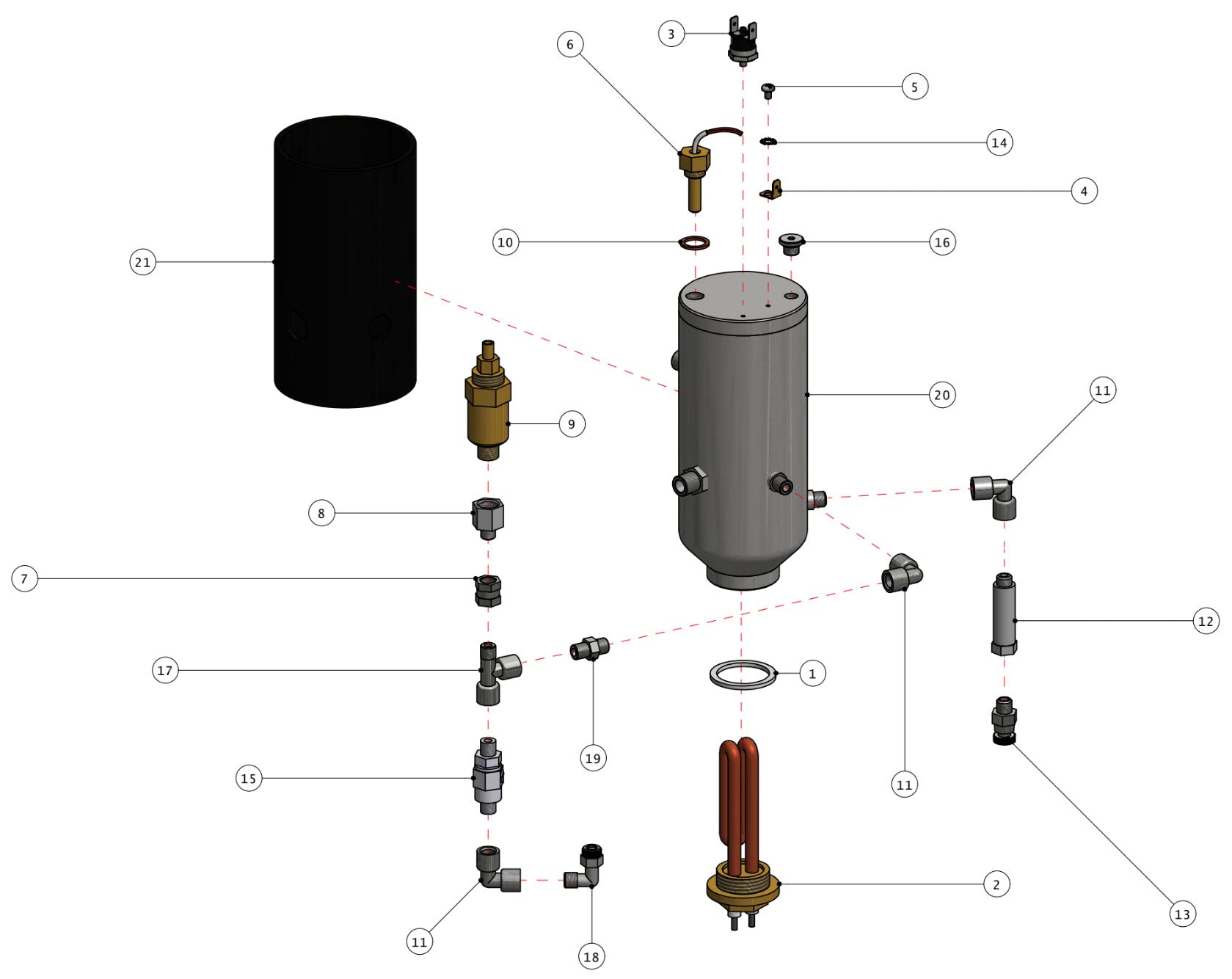

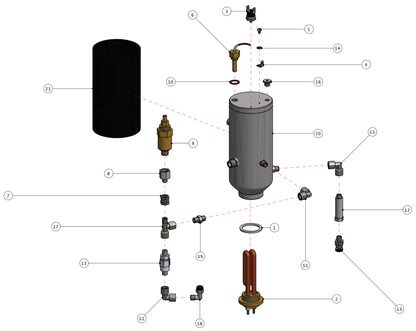

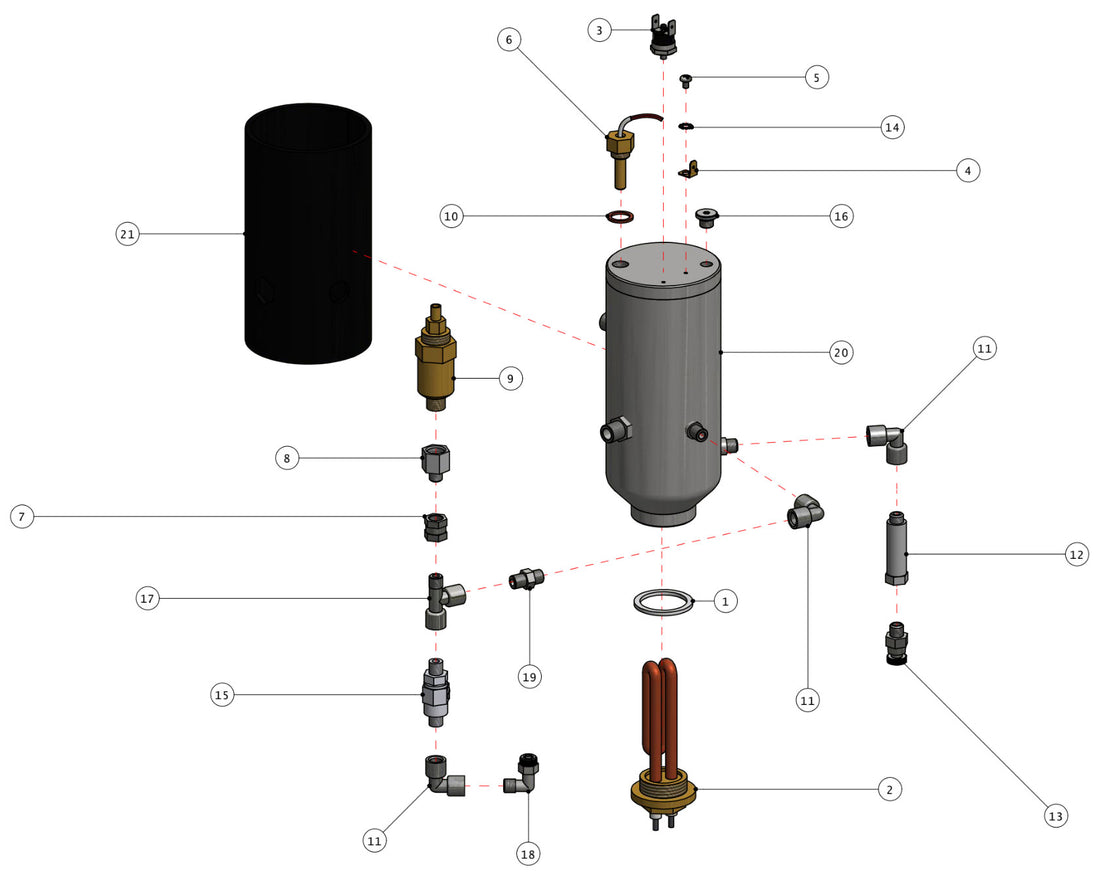

0995-5 | 1 | Quick Mill PL0970GR
Part Number: PL0970GR |
|||
0995-5 | 2 | Quick Mill RA0970RE1
Part Number: RA0970RE1 |
|||
0995-5 | 3 | Quick Mill TE07100
Part Number: TE07100 |
|||
0995-5 | 4 | Quick Mill BM01009
Part Number: BM01009 |
|||
0995-5 | 5 | Quick Mill VII44
Part Number: VII44 |
|||
0995-5 | 6 | Quick Mill SO0995AC-C
Part Number: SO0995AC-C |
|||
0995-5 | 7 | Quick Mill OT0970M8
Part Number: OT0970M8 |
|||
0995-5 | 8 | Quick Mill OT0980R4
Part Number: OT0980R4 |
|||
0995-5 | 9 | Quick Mill OT0980VE
Part Number: OT0980VE |
|||
0995-5 | 10 | Quick Mill RO0980VS
Part Number: RO0980VS |
|||
0995-5 | 11 | Quick Mill OT08700RA
Part Number: OT08700RA |
|||
0995-5 | 12 | Quick Mill OT0995P1/8
Part Number: OT0995P1/8 |
|||
0995-5 | 13 | Quick Mill OT05008RS
Part Number: OT05008RS |
|||
0995-5 | 14 | Quick Mill RODI20
Part Number: RODI20 |
|||
0995-5 | 15 | Quick Mill OT0995VNR
Part Number: OT0995VNR |
|||
0995-5 | 16 | Quick Mill OT04010T8
Part Number: OT04010T8 |
|||
0995-5 | 17 | Quick Mill OT0980RT8
Part Number: OT0980RT8 |
|||
0995-5 | 18 | Quick Mill OT04010RG8
Part Number: OT04010RG8 |
|||
0995-5 | 19 | Quick Mill OT04000N8
Part Number: OT04000N8 |
|||
0995-5 | 20 | Quick Mill AC0995CAC
Part Number: AC0995CAC |
|||
0995-5 | 21 | Quick Mill IS0970C
Part Number: IS0970C |
|||

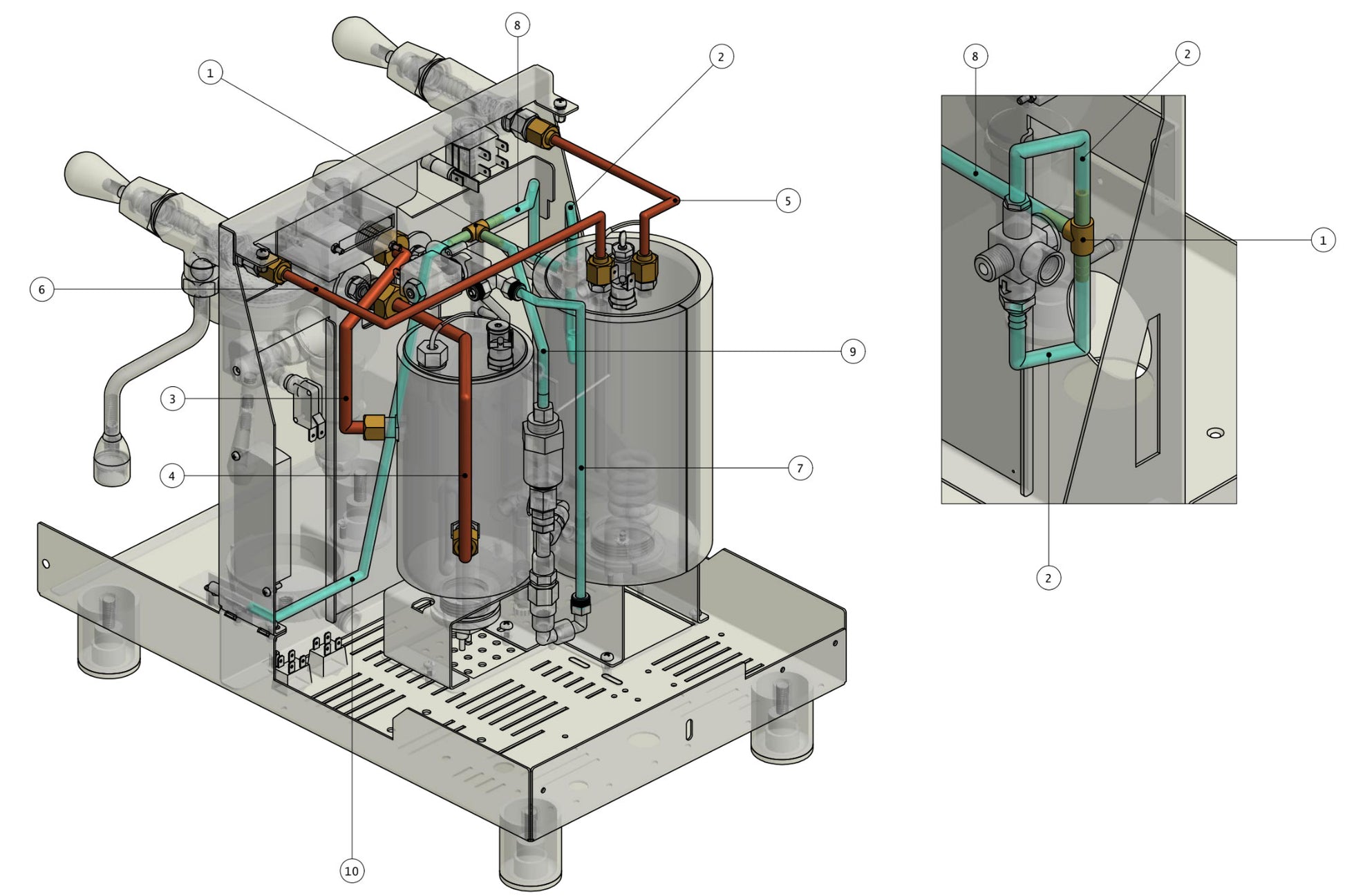

0995-6 | 1 | Quick Mill OT05500RA
Part Number: OT05500RA |
|||
0995-6 | 2 | Quick Mill TUST4X7 L150
Part Number: TUST4X7 L150 |
|||
0995-6 | 3 | Quick Mill RA0992CS
Part Number: RA0992CS |
|||
0995-6 | 4 | Quick Mill RA0992CI
Part Number: RA0992CI |
|||
0995-6 | 5 | Quick Mill RA0992VEN
Part Number: RA0992VEN |
|||
0995-6 | 6 | Quick Mill RA0992RAL-OS
Part Number: RA0992RAL-OS |
|||
0995-6 | 7 | Quick Mill TUTE4X6 L200
Part Number: TUTE4X6 L200 |
|||
0995-6 | 8 | Quick Mill TUST4X7 L175
Part Number: TUST4X7 L175 |
|||
0995-6 | 9 | Quick Mill TUST4X7 L200
Part Number: TUST4X7 L200 |
|||
0995-6 | 10 | Quick Mill TUST4X7 L350
Part Number: TUST4X7 L350 |
|||

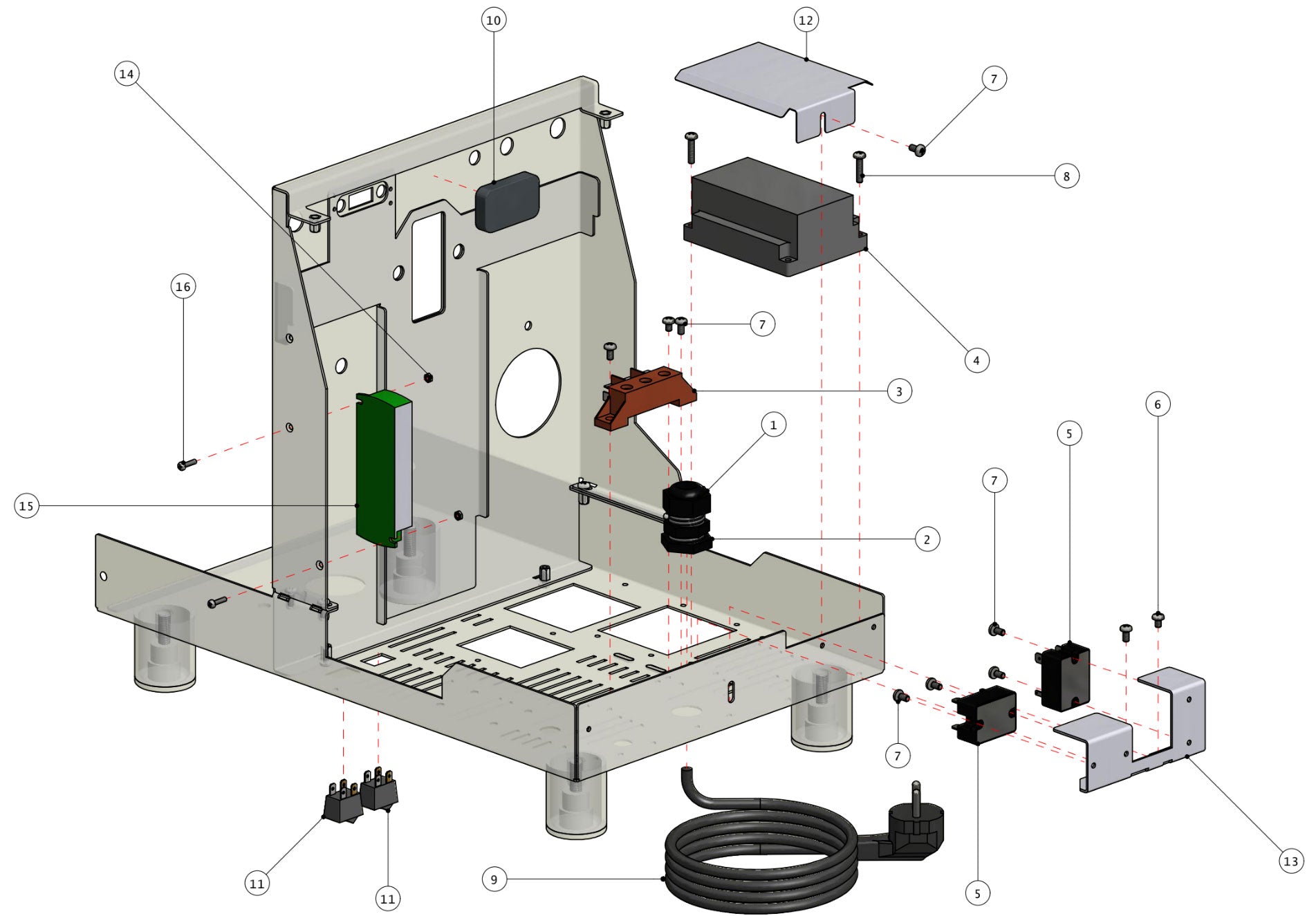

0995-7 | 1 | Quick Mill PL0988PC
Part Number: PL0988PC |
|||
0995-7 | 2 | Quick Mill PL0988GP
Part Number: PL0988GP |
|||
0995-7 | 3 | Quick Mill FV110B
Part Number: FV110B |
|||
0995-7 | 4 | Quick Mill SCH0995SB
Part Number: SCH0995SB |
|||
0995-7 | 5 | Quick Mill RELECG4-9V
Part Number: RELECG4-9V |
|||
0995-7 | 6 | Quick Mill VII44
Part Number: VII44 |
|||
0995-7 | 7 | Quick Mill VII48 Part Number: VII48 |
$5.38 | View Part | |
0995-7 | 8 | Quick Mill VII196
Part Number: VII196 |
|||
0995-7 | 9 | Quick Mill CAVO/14
Part Number: CAVO/14 |
|||
0995-7 | 10 | Quick Mill SCH0995OP
Part Number: SCH0995OP |
|||
0995-7 | 11 | Quick Mill IN028
Part Number: IN028 |
|||
0995-7 | 12 | Quick Mill AC0995DPPSCE
Part Number: AC0995DPPSCE |
|||
0995-7 | 13 | Quick Mill AC0995DPPR18
Part Number: AC0995DPPR18 |
|||
0995-7 | 14 | Quick Mill DAI3
Part Number: DAI3 |
|||
0995-7 | 15 | Quick Mill ALILEDN
Part Number: ALILEDN |
|||
0995-7 | 16 | Quick Mill VII57
Part Number: VII57 |
|||

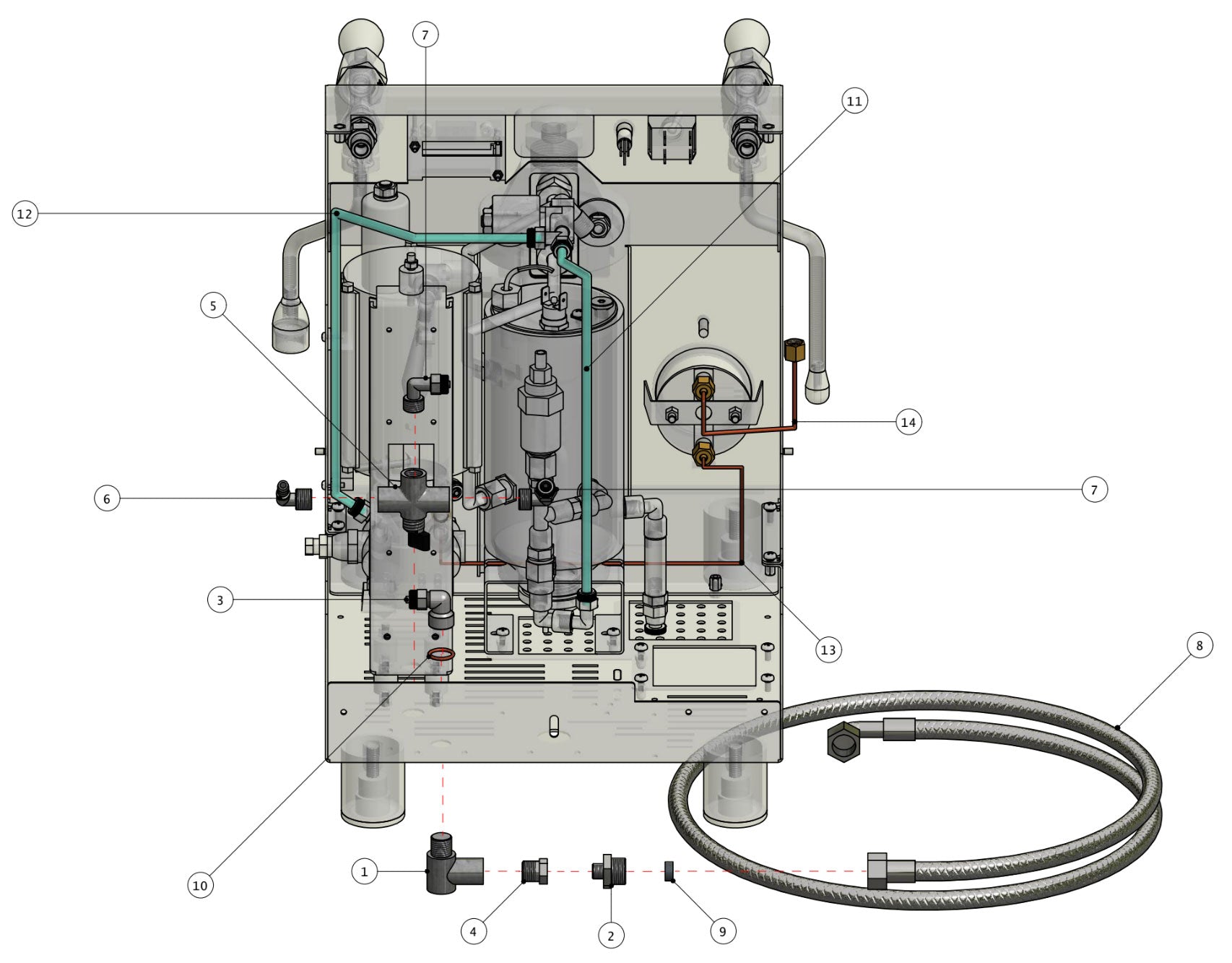

0995-8A | 1 | Quick Mill OT0995RG
Part Number: OT0995RG |
|||
0995-8A | 2 | Quick Mill OT08700NC
Part Number: OT08700NC |
|||
0995-8A | 3 | Quick Mill OT0980RA4
Part Number: OT0980RA4 |
|||
0995-8A | 4 | Quick Mill OT0980RC
Part Number: OT0980RC |
|||
0995-8A | 5 | Quick Mill OT0995R3V
Part Number: OT0995R3V |
|||
0995-8A | 6 | Quick Mill OT0995PGG
Part Number: OT0995PGG |
|||
0995-8A | 7 | Quick Mill OT0995RLC
Part Number: OT0995RLC |
|||
0995-8A | 8 | Quick Mill TU0995N
Part Number: TU0995N |
|||
0995-8A | 9 | Quick Mill AC0995FI
Part Number: AC0995FI |
|||
0995-8A | 10 | Quick Mill RA1-4RO
Part Number: RA1-4RO |
|||
0995-8A | 11 | Quick Mill TUTE4X6 L200
Part Number: TUTE4X6 L200 |
|||
0995-8A | 12 | Quick Mill TUTE4X6 L400
Part Number: TUTE4X6 L400 |
|||
0995-8A | 13 | Quick Mill RA0970CM
Part Number: RA0970CM |
|||
0995-8A | 14 | Quick Mill RA0970CMN
Part Number: RA0970CMN |
|||

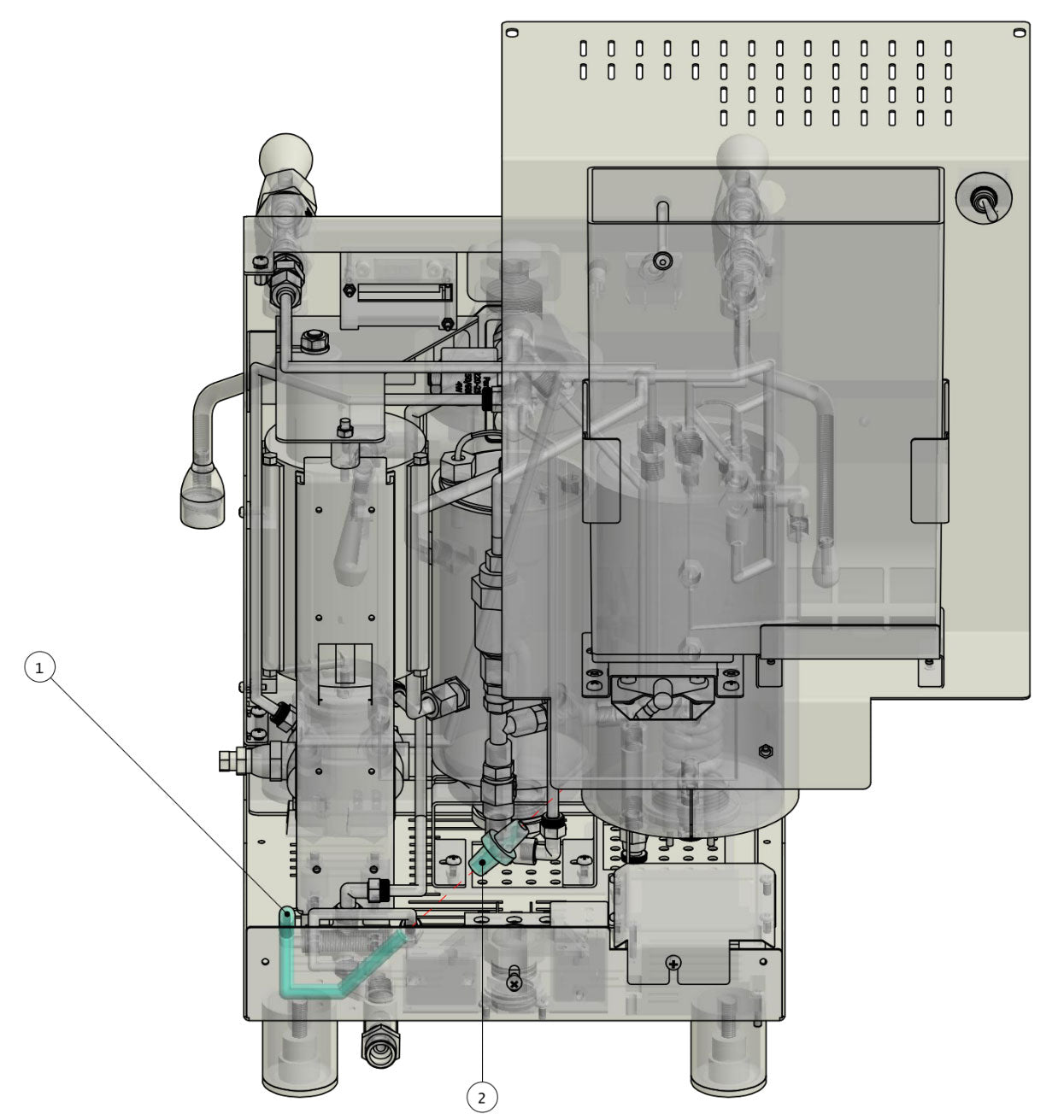

0995-8B | 1 | Quick Mill TUST4X8.4R L300
Part Number: TUST4X8.4R L300 |
|||
0995-8B | 2 | Quick Mill PL05500FI
Part Number: PL05500FI |
|||

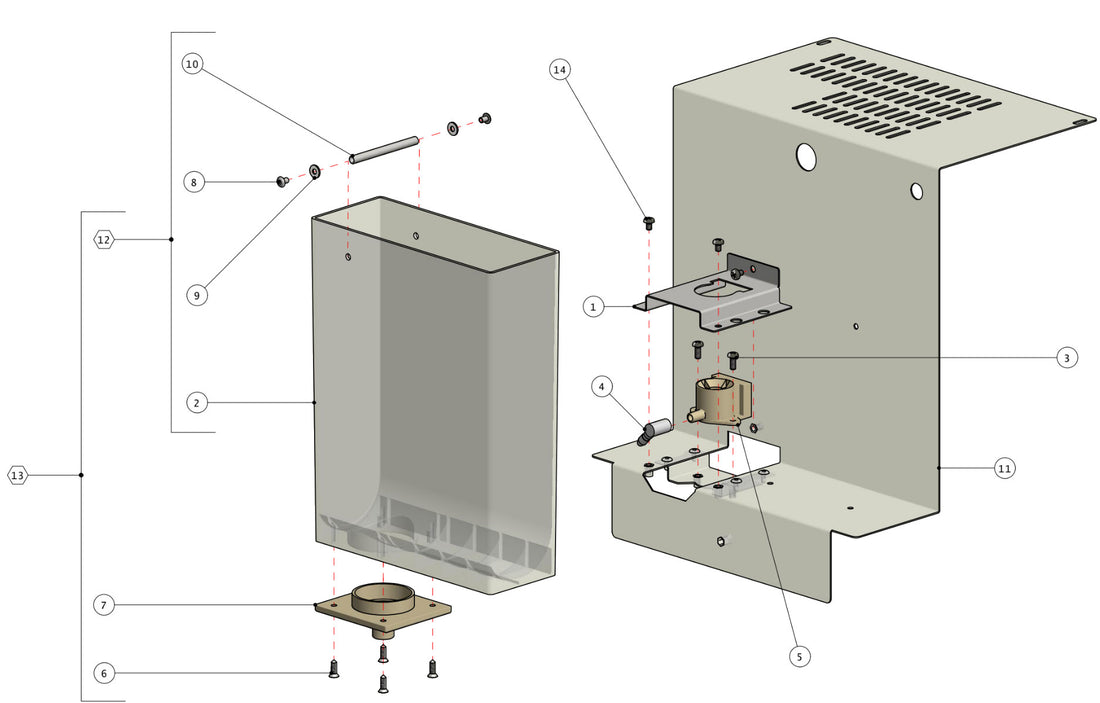

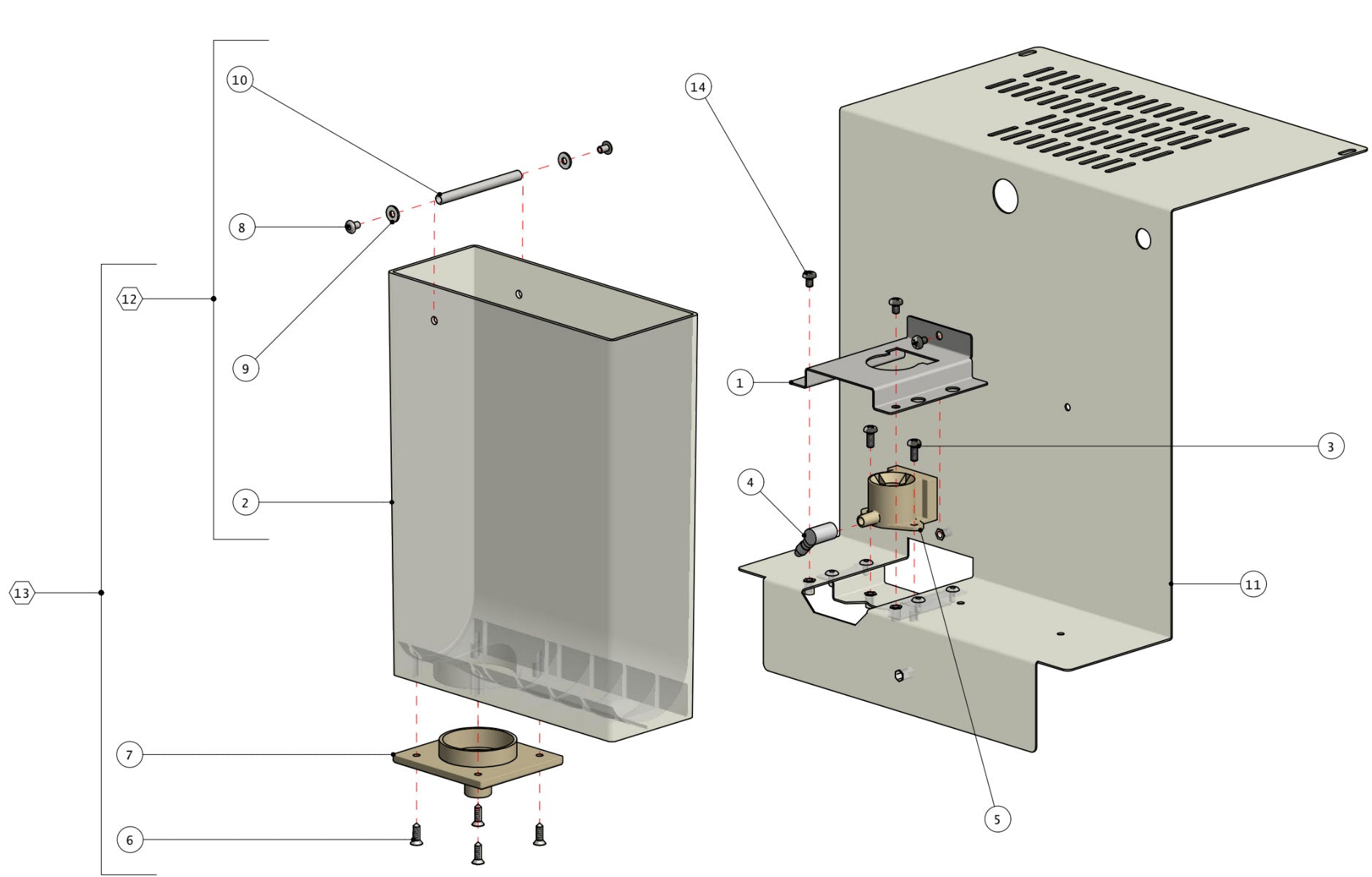

0995-8C | 1 | Quick Mill AC0995PCREED
Part Number: AC0995PCREED |
|||
0995-8C | 2 | Quick Mill PL0995TA
Part Number: PL0995TA |
|||
0995-8C | 3 | Quick Mill VII21
Part Number: VII21 |
|||
0995-8C | 4 | Quick Mill GO03000PG
Part Number: GO03000PG |
|||
0995-8C | 5 | Quick Mill PL0995GIR
Part Number: PL0995GIR |
|||
0995-8C | 6 | Quick Mill VII13
Part Number: VII13 |
|||
0995-8C | 7 | Quick Mill PL0995GFS
Part Number: PL0995GFS |
|||
0995-8C | 8 | Quick Mill RIV4X8
Part Number: RIV4X8 |
|||
0995-8C | 9 | Quick Mill RODI25
Part Number: RODI25 |
|||
0995-8C | 10 | Quick Mill AC0970BD
Part Number: AC0970BD |
|||
0995-8C | 11 | Quick Mill AC0995PSTAN18
Part Number: AC0995PSTAN18 |
|||
0995-8C | 12 | Quick Mill PL0995TA-R
Part Number: PL0995TA-R |
|||
0995-8C | 13 | Quick Mill PL0995TAC
Part Number: PL0995TAC |
|||
0995-8C | 14 | Quick Mill VII44
Part Number: VII44 |
|||

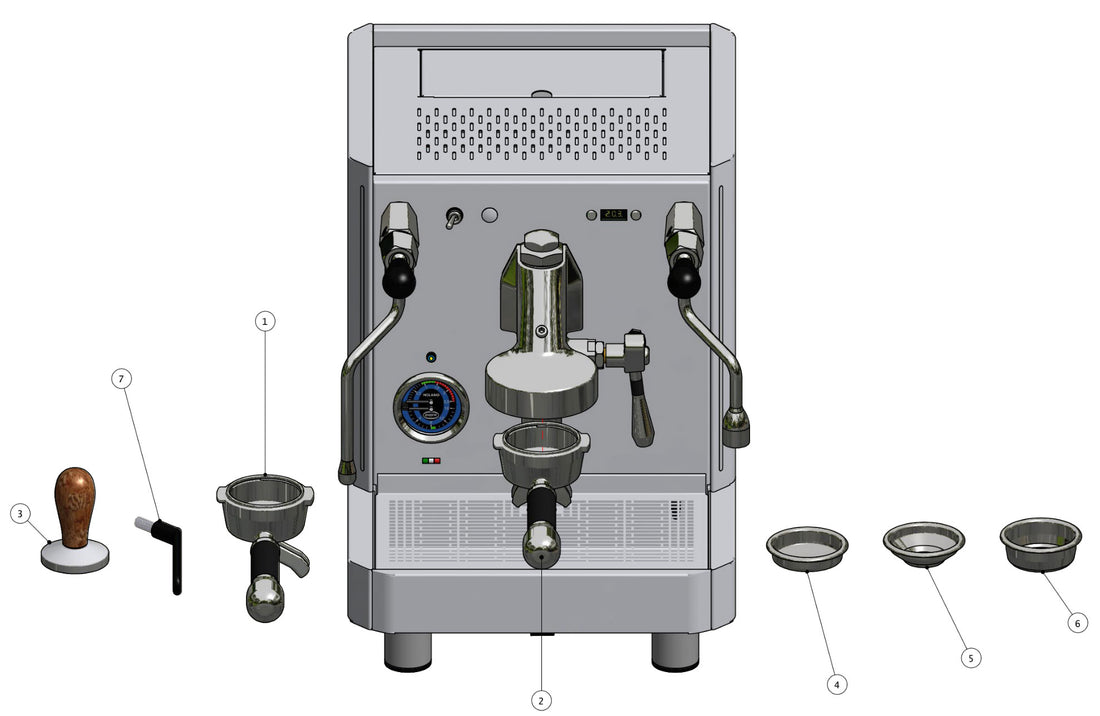

0995-9 | 1 | Quick Mill OT0995PF1
Part Number: OT0995PF1 |
|||
0995-9 | 2 | Quick Mill OT0980PFC
Part Number: OT0980PFC |
|||
0995-9 | 3 | Quick Mill AC0995PRC
Part Number: AC0995PRC |
|||
0995-9 | 4 | Quick Mill AC0970FC
Part Number: AC0970FC |
|||
0995-9 | 5 | Quick Mill AC0970FI1
Part Number: AC0970FI1 |
|||
0995-9 | 6 | Quick Mill AC0970FI2
Part Number: AC0970FI2 |
|||
0995-9 | 7 | Quick Mill PLSPAZ
Part Number: PLSPAZ |
