| Diagram # | Pos # | Image | Description | Price |
|---|
| Diagram # | Pos # | Image | Description | Price | |
|---|---|---|---|---|---|

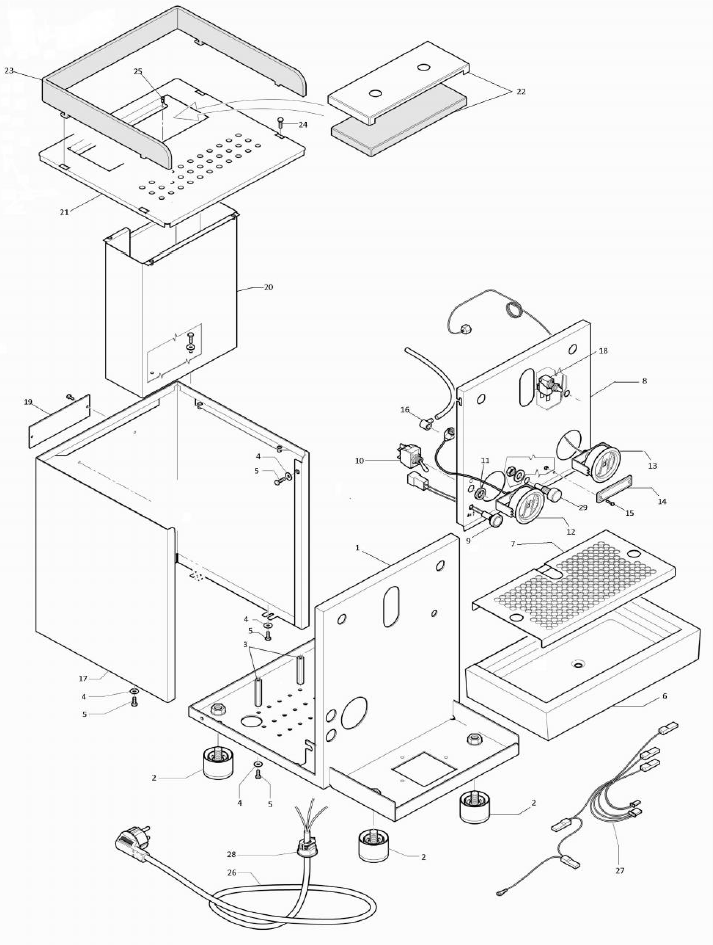

| RECELPLUSV2-1 | 1 | Chassis Part Number: A009905082 |
$148.64 | View Part | |
| RECELPLUSV2-1 | 2 | Foot 30 mm Part Number: A019904281 |
$10.22 | View Part | |
| RECELPLUSV2-1 | 3 | Column
Part Number: C220004264 |
|||
| RECELPLUSV2-1 | 4 | Washer Part Number: A309904532 |
$5.22 | View Part | |
| RECELPLUSV2-1 | 5 | Screw Part Number: C309900745 |
$5.20 | View Part | |
| RECELPLUSV2-1 | 6 | Drip tray
Part Number: A01L004412 |
|||
| RECELPLUSV2-1 | 7 |
|
Grid Part Number: A019904346 |
$39.80 | View Part |
| RECELPLUSV2-1 | 8 | Front panel Part Number: A19I004629 |
$86.94 | View Part | |
| RECELPLUSV2-1 | 9 | Green led control lamp
Part Number: A139904519 |
|||
| RECELPLUSV2-1 | 10 | Stainless steel switch
Part Number: A199904992 |
|||
| RECELPLUSV2-1 | 11 | Nut
Part Number: A529904289 |
|||
| RECELPLUSV2-1 | 12 |
|
Boiler pressure gauge Part Number: A299904632 |
$62.20 | View Part |
| RECELPLUSV2-1 | 13 |
|
Pump pressure gauge Part Number: A299904633 |
$87.23 | View Part |
| RECELPLUSV2-1 | 14 | Front tag
Part Number: A859905008 |
|||
| RECELPLUSV2-1 | 15 | Screw
Part Number: A319904306 |
|||
| RECELPLUSV2-1 | 16 |
|
Rubber connector Part Number: C449900709 |
$7.26 | View Part |
| RECELPLUSV2-1 | 17 | Body panel Part Number: A010004321 |
$161.80 | View Part | |
| RECELPLUSV2-1 | 18 |
|
Microswitch Part Number: C199900306 |
$29.17 | View Part |
| RECELPLUSV2-1 | 19 |
|
Rear tag Part Number: A859904400 |
$54.04 | View Part |
| RECELPLUSV2-1 | 20 |
|
Tank guide Part Number: A019904451 |
$93.99 | View Part |
| RECELPLUSV2-1 | 21 | Cups support panel Part Number: A010004335 |
$125.00 | View Part | |
| RECELPLUSV2-1 | 22 |
|
Reservoir cover complete Part Number: R01L000382 |
$50.60 | View Part |
| RECELPLUSV2-1 | 23 | Cupsframe Part Number: A630004287 |
$25.58 | View Part | |
| RECELPLUSV2-1 | 24 | Screw Part Number: A319904521 |
$5.22 | View Part | |
| RECELPLUSV2-1 | 25 | Screw Part Number: A319904431 |
$5.34 | View Part | |
| RECELPLUSV2-1 | 26 | Power cord CE
Part Number: C199900957 |
|||
| RECELPLUSV2-1 | Power cord IS
Part Number: A199904518 |
||||
| RECELPLUSV2-1 | Power cord KR
Part Number: A199904616 |
||||
| RECELPLUSV2-1 |
|
Power cord UL Part Number: C199900958 |
$35.23 | View Part | |
| RECELPLUSV2-1 | Power cord AUS/NZ
Part Number: C199901115 |
||||
| RECELPLUSV2-1 | Power cord GB
Part Number: C199901116 |
||||
| RECELPLUSV2-1 | Power cord CH
Part Number: C199901510 |
||||
| RECELPLUSV2-1 | 27 | Wiring loom V2
Part Number: A199905015 |
|||
| RECELPLUSV2-1 | 28 | Cable retainer Part Number: C439900086 |
$10.28 | View Part | |
| RECELPLUSV2-1 | 29 | Drain Connector
Part Number: A227704363 |
|||

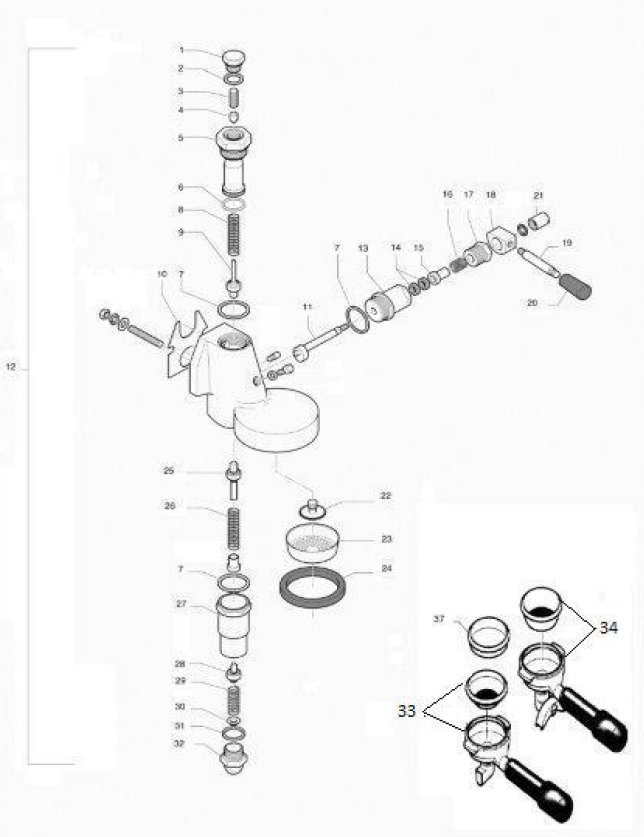

| RECELPLUSV2-2 | 1 | Rounded nut Part Number: A229904391 |
$10.76 | View Part | |
| RECELPLUSV2-2 | 2 |
|
Gasket Part Number: C469900420 |
$6.60 | View Part |
| RECELPLUSV2-2 | 3 | Filter Part Number: C619900554 |
$18.74 | View Part | |
| RECELPLUSV2-2 | 4 |
|
Restrictor 0,8 Part Number: C229900549 |
$8.30 | View Part |
| RECELPLUSV2-2 | 5 |
|
Group Shaft Part Number: C229901133 |
$101.33 | View Part |
| RECELPLUSV2-2 | 6 |
|
Green gasket Part Number: C469900422 |
$9.80 | View Part |
| RECELPLUSV2-2 | 7 |
|
Teflon gasket Part Number: C469900421 |
$7.30 | View Part |
| RECELPLUSV2-2 | 8 |
|
Spring Part Number: C219900423 |
$15.27 | View Part |
| RECELPLUSV2-2 | 9 |
|
Valve assembly Part Number: C219900424 |
$12.95 | View Part |
| RECELPLUSV2-2 | 10 |
|
Gasket Part Number: C449900767 |
$10.13 | View Part |
| RECELPLUSV2-2 | 11 |
|
Shaft Part Number: C219900425 |
$34.17 | View Part |
| RECELPLUSV2-2 | 12 | Group complete Part Number: C200002983 Notes: parts n.10-23-24 not included |
$264.89 | View Part | |
| RECELPLUSV2-2 | 13 | Flange Part Number: R000002142 |
$21.46 | View Part | |
| RECELPLUSV2-2 | 14 | Gasket
Part Number: C219900426 |
|||
| RECELPLUSV2-2 | 15 | Support Part Number: R000002143 |
$12.20 | View Part | |
| RECELPLUSV2-2 | 16 | Spring Part Number: C219900427 |
$11.40 | View Part | |
| RECELPLUSV2-2 | 17 |
|
Cover Part Number: R000002144 |
$9.67 | View Part |
| RECELPLUSV2-2 | 18 |
|
Shaft Part Number: R000002145 |
$42.09 | View Part |
| RECELPLUSV2-2 | 19 |
|
Lever shaft Part Number: A829904329 |
$14.34 | View Part |
| RECELPLUSV2-2 | 20 | Group handle Part Number: A839904330 |
$17.65 | View Part | |
| RECELPLUSV2-2 | 21 | Pin Part Number: R000002146 |
$7.75 | View Part | |
| RECELPLUSV2-2 | 22 | Diffuser Part Number: C229901228 |
$28.08 | View Part | |
| RECELPLUSV2-2 | 23 |
|
Shower Part Number: C519900103 |
$15.20 | View Part |
| RECELPLUSV2-2 | 24 | Group Gasket
Part Number: C449900229 |
|||
| RECELPLUSV2-2 | 25 |
|
Drain valve Part Number: C219900430 |
$12.95 | View Part |
| RECELPLUSV2-2 | 26 | Spring Part Number: A219904309 |
$7.88 | View Part | |
| RECELPLUSV2-2 | 27 |
|
Cylinder Part Number: C229901165 |
$105.79 | View Part |
| RECELPLUSV2-2 | 28 |
|
Valve Part Number: C219903081 |
$21.64 | View Part |
| RECELPLUSV2-2 | 29 |
|
Spring Part Number: C219900431 |
$8.83 | View Part |
| RECELPLUSV2-2 | 30 |
|
Connector Part Number: R000002148 |
$9.99 | View Part |
| RECELPLUSV2-2 | 31 | Gasket Part Number: C469900783 |
$7.01 | View Part | |
| RECELPLUSV2-2 | 32 | Connector Part Number: R000002149 |
$12.28 | View Part | |
| RECELPLUSV2-2 | 33 | 1 cup filter holder Part Number: A699905020 |
$49.75 | View Part | |
| RECELPLUSV2-2 | 34 | 2 cups filter holder Part Number: A699905021 |
$49.75 | View Part | |
| RECELPLUSV2-2 |
|
7 gr filter basket Part Number: C610003902 |
$18.38 | View Part | |
| RECELPLUSV2-2 | 14 gr filter basket Part Number: C610003901 |
$18.38 | View Part | ||
| RECELPLUSV2-2 | 37 | Blind filter Part Number: C619900106 |
$14.16 | View Part | |

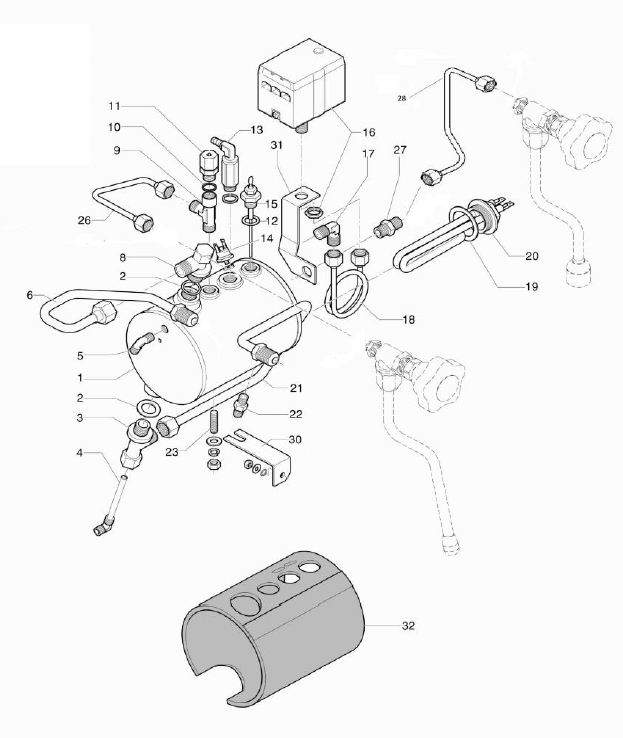

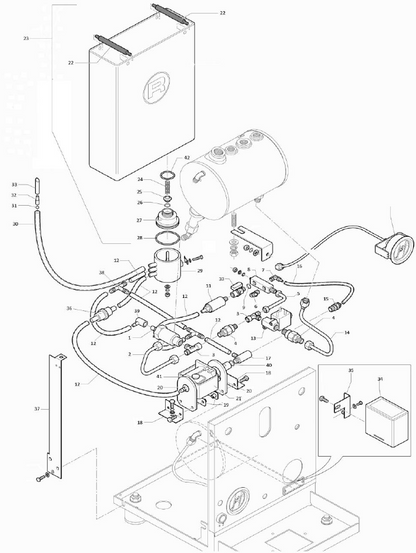

| RECELPLUSV2-3 | 1 | Boiler Part Number: A277704278 |
$351.11 | View Part | |
| RECELPLUSV2-3 | 2 |
|
Copper gasket Part Number: C479900673 |
$6.38 | View Part |
| RECELPLUSV2-3 | 3 |
|
Connector Part Number: C229900740 |
$14.60 | View Part |
| RECELPLUSV2-3 | 4 |
|
Injector Part Number: C229900393 |
$11.84 | View Part |
| RECELPLUSV2-3 | 5 | Connector
Part Number: A229904355 |
|||
| RECELPLUSV2-3 | 6 | Inlet pipe w. 3mm restrictor Part Number: A279905173 |
$18.37 | View Part | |
| RECELPLUSV2-3 | 8 |
|
Connector Part Number: A229904957 |
$10.52 | View Part |
| RECELPLUSV2-3 | 9 | Connector
Part Number: C229900528 |
|||
| RECELPLUSV2-3 | 10 | Teflon gasket
Part Number: A269904417 |
|||
| RECELPLUSV2-3 | 11 |
|
Vacuum breaker valve Part Number: C219900560 |
$18.29 | View Part |
| RECELPLUSV2-3 | 12 |
|
Teflon gasket Part Number: A449904331 |
$5.40 | View Part |
| RECELPLUSV2-3 | 13 |
|
Safety valve Part Number: A299904998 |
$39.79 | View Part |
| RECELPLUSV2-3 | 14 |
|
Thermostat 135C Part Number: C199901550 |
$34.56 | View Part |
| RECELPLUSV2-3 | 15 | Boiler level probe Part Number: C199900839 |
$46.58 | View Part | |
| RECELPLUSV2-3 | 16 | Pressure switch
Part Number: A199904296 |
|||
| RECELPLUSV2-3 | 17 | Connector Part Number: C229900525 |
$9.87 | View Part | |
| RECELPLUSV2-3 | 18 | Pressure switch pipe
Part Number: A279904292 |
|||
| RECELPLUSV2-3 | 19 | 3 mm heating element gasket Part Number: C469900239 |
$9.84 | View Part | |
| RECELPLUSV2-3 | 20 | Heating element V230
Part Number: C199901551 |
|||
| RECELPLUSV2-3 | Heating element V115 Part Number: C199901552 |
$109.64 | View Part | ||
| RECELPLUSV2-3 | 21 | Return pipe
Part Number: A279904289 |
|||
| RECELPLUSV2-3 | 22 |
|
Connector Part Number: C229900518 |
$8.98 | View Part |
| RECELPLUSV2-3 | 23 |
|
Pin Part Number: C309900131 |
$5.88 | View Part |
| RECELPLUSV2-3 | 23A | Copper gasket
Part Number: C479900228 Notes: use till sn D1223 |
|||
| RECELPLUSV2-3 | 23B |
|
Connector Part Number: A229904320 Notes: use wth 23A |
$9.40 | View Part |
| RECELPLUSV2-3 | 26 | Steam pipe Part Number: A279904290 |
$23.70 | View Part | |
| RECELPLUSV2-3 | 27 | Connector Part Number: C229900520 |
$10.00 | View Part | |
| RECELPLUSV2-3 | 28 | Water pipe Part Number: A229905097 Notes: from sn D1223 |
$23.73 | View Part | |
| RECELPLUSV2-3 | 28A |
|
Water pipe Part Number: A279904291 Notes: use till sn D1223 |
$23.70 | View Part |
| RECELPLUSV2-3 | 28B | Connector Part Number: C229900595 Notes: use with 28A |
$11.38 | View Part | |
| RECELPLUSV2-3 | 30 |
|
Boiler support Part Number: C000004257 |
$7.62 | View Part |
| RECELPLUSV2-3 | 31 | Pressure switch support
Part Number: C000004265 |
|||
| RECELPLUSV2-3 | 32 | Boiler protection
Part Number: A499904995 |
|||

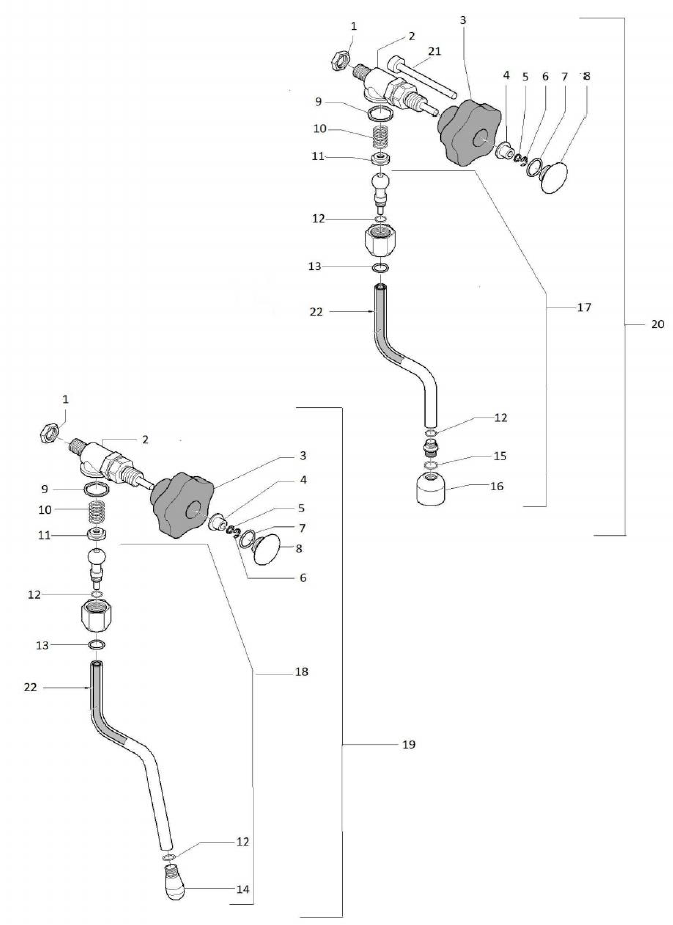

| RECELPLUSV2-4 | 1 | Half nut 1/4
Part Number: A329905087 |
|||
| RECELPLUSV2-4 | 2 |
|
Steam/ Hot water valve Part Number: A229905055 Notes: use from Sn D1224G2V3181 |
$59.45 | View Part |
| RECELPLUSV2-4 | 2A | Steam/ Hot water valve
Part Number: A227704280 Notes: use till Sn D1224G2V3181 |
|||
| RECELPLUSV2-4 | 3 | Steam/water valve handle
Part Number: A430004284 |
|||
| RECELPLUSV2-4 | 4 | Plate
Part Number: A829904376 |
|||
| RECELPLUSV2-4 | 5 |
|
Washer Part Number: A829904375 |
$6.78 | View Part |
| RECELPLUSV2-4 | 6 | Handle "clip" Part Number: A809904377 |
$5.11 | View Part | |
| RECELPLUSV2-4 | 7 |
|
Oring Part Number: C400002786 |
$13.00 | View Part |
| RECELPLUSV2-4 | 8 | Cover handle Part Number: A527704283 |
$15.00 | View Part | |
| RECELPLUSV2-4 | 9 |
|
Teflon gasket Part Number: A449904331 |
$5.40 | View Part |
| RECELPLUSV2-4 | 10 | Spring Part Number: A209904332 |
$6.78 | View Part | |
| RECELPLUSV2-4 | 11 | Plate
Part Number: A229904333 |
|||
| RECELPLUSV2-4 | 12 | Oring Part Number: C400002022 |
$5.43 | View Part | |
| RECELPLUSV2-4 | 13 | Oring
Part Number: A449904334 |
|||
| RECELPLUSV2-4 | 14 | 2 Holes steam nozzle Part Number: C200002839 |
$19.78 | View Part | |
| RECELPLUSV2-4 | 15 | Oring Part Number: C400003008 |
$5.60 | View Part | |
| RECELPLUSV2-4 | 16 | Hot water nozzle Part Number: C227700536 |
$22.13 | View Part | |
| RECELPLUSV2-4 | 17 |
|
Hot water wand Part Number: R290003612 |
$59.98 | View Part |
| RECELPLUSV2-4 | 18 |
|
Steam wand Part Number: R290003611 |
$57.13 | View Part |
| RECELPLUSV2-4 | 19 |
|
Steam wand and tap complete Part Number: A899904634 |
$59.76 | View Part |
| RECELPLUSV2-4 | 20 | Water wand and tap complete
Part Number: A899904635 |
|||
| RECELPLUSV2-4 | 21 | Steam/hot water valve rod Part Number: R229905177 |
$10.70 | View Part | |
| RECELPLUSV2-4 | 22 | Silicon pipe 4x7 no burn
Part Number: C440003449 |
|||

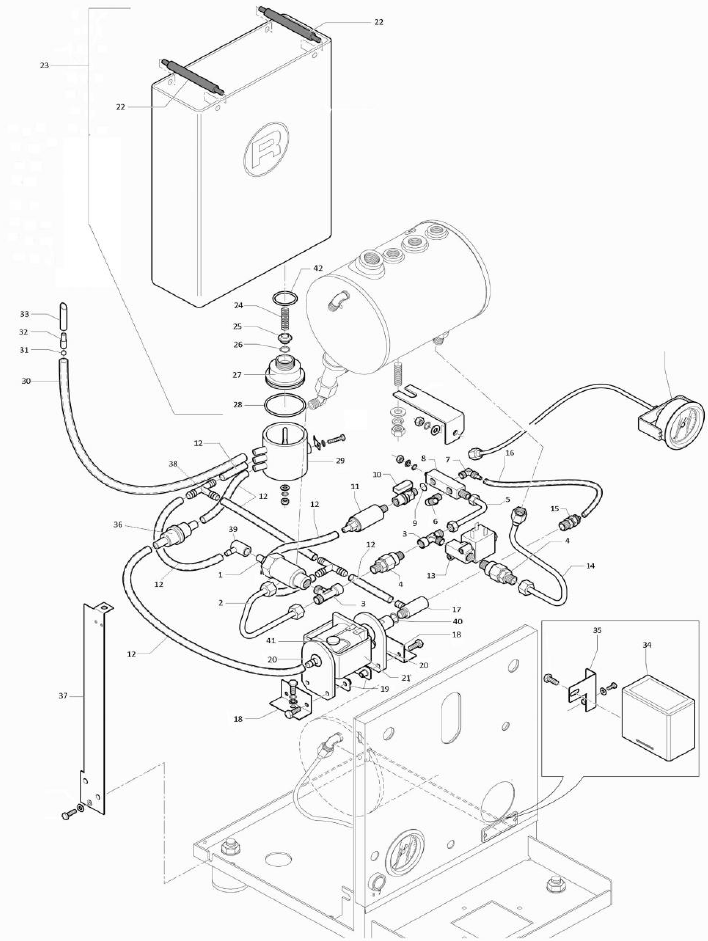

| RECELPLUSV2-5 | 1 | Expasion valve Part Number: C229900911 |
$48.28 | View Part | |
| RECELPLUSV2-5 | 2 | Inlet pipe heat exchanger
Part Number: C229900399 |
|||
| RECELPLUSV2-5 | 3 |
|
T Connector 1/8M 1/8M 1/8F Part Number: C229900644 |
$11.00 | View Part |
| RECELPLUSV2-5 | 4 | Non return valve Part Number: C229900540 |
$30.04 | View Part | |
| RECELPLUSV2-5 | 5 | Valve block pipe
Part Number: A279904991 |
|||
| RECELPLUSV2-5 | 6 | L Connector 1/8 MM
Part Number: A229904355 |
|||
| RECELPLUSV2-5 | 7 | L Connector 1/8 6x4 pipe
Part Number: A229904351 |
|||
| RECELPLUSV2-5 | 8 | Hydraulic block
Part Number: A529904952 |
|||
| RECELPLUSV2-5 | 9 | 1/8 Copper gasket
Part Number: A479905079 |
|||
| RECELPLUSV2-5 | 10 | Valve 1/8 MF
Part Number: A299904994 |
|||
| RECELPLUSV2-5 | 11 | Expansion valve 9 bar 1/8 M
Part Number: A299905143 |
|||
| RECELPLUSV2-5 | 12 | Silicon pipe 5x8
Part Number: C499900769 |
|||
| RECELPLUSV2-5 | 13 | Solenoid valve V230
Part Number: C190004066 |
|||
| RECELPLUSV2-5 |
|
Solenoid valve V115 Part Number: C190004067 |
$61.64 | View Part | |
| RECELPLUSV2-5 | 14 | Inlet pipe boiler
Part Number: C229900400 |
|||
| RECELPLUSV2-5 | 15 | Connector 1/8 6x4 pipe
Part Number: C229900708 |
|||
| RECELPLUSV2-5 | 16 | Teflon pipe 4 x 6 Part Number: C269900300 |
$35.42 | View Part | |
| RECELPLUSV2-5 | 17 |
|
S2 Valve Part Number: C200002112 |
$15.60 | View Part |
| RECELPLUSV2-5 | 18 | Pump support
Part Number: C000002075 |
|||
| RECELPLUSV2-5 | 19 | Pump support
Part Number: C000002076 |
|||
| RECELPLUSV2-5 | 20 | Rubber support Part Number: C400002077 |
$7.88 | View Part | |
| RECELPLUSV2-5 | 21 | Vibration pump V230
Part Number: C199900280 |
|||
| RECELPLUSV2-5 | Vibration pump V115
Part Number: C199900281 |
||||
| RECELPLUSV2-5 | 22 | Water tank handle Part Number: A639904956 |
$8.32 | View Part | |
| RECELPLUSV2-5 | 23 | Water tank complete
Part Number: R899905144 |
|||
| RECELPLUSV2-5 | 24 | Spring
Part Number: C019900711 |
|||
| RECELPLUSV2-5 | 25 | Connector
Part Number: C430003482 |
|||
| RECELPLUSV2-5 | 26 | O ring
Part Number: C449900702 |
|||
| RECELPLUSV2-5 | 27 | Coupling
Part Number: A439905146 |
|||
| RECELPLUSV2-5 | 28 | O ring
Part Number: A449904547 |
|||
| RECELPLUSV2-5 | 29 | Manifold
Part Number: A439905147 Notes: use from D1314G2P1856 |
|||
| RECELPLUSV2-5 | 29A |
|
Manifold Part Number: C430004245 Notes: use till D1314G2P1856 |
$10.28 | View Part |
| RECELPLUSV2-5 | 29B | Opening valve rod
Part Number: C520003483 Notes: use with 29A |
|||
| RECELPLUSV2-5 | 29C | O ring
Part Number: C449901159 Notes: use with 29A and 29B |
|||
| RECELPLUSV2-5 | 30 | Silicon pipe 6 x 9
Part Number: C260003822 |
|||
| RECELPLUSV2-5 | 31 | Sphere
Part Number: C430003819 |
|||
| RECELPLUSV2-5 | 32 | Non return connector
Part Number: C220003818 |
|||
| RECELPLUSV2-5 | 33 | Silicon pipe 4x7
Part Number: C400001928 |
|||
| RECELPLUSV2-5 | 34 | Plug-in Control box V230
Part Number: A190004524 |
|||
| RECELPLUSV2-5 | Plug-in Control box V115 Part Number: A190004525 |
$88.33 | View Part | ||
| RECELPLUSV2-5 | 35 | Control Box support
Part Number: A019904449 |
|||
| RECELPLUSV2-5 | 36 |
|
Filter Part Number: C439900695 |
$9.91 | View Part |
| RECELPLUSV2-5 | 37 | Pipe support
Part Number: C010003852 |
|||
| RECELPLUSV2-5 | 38 | Rubber T connector
Part Number: C400002827 |
|||
| RECELPLUSV2-5 | 39 |
|
Rubber connector Part Number: C449900709 |
$7.26 | View Part |
| RECELPLUSV2-5 | 40 | O ring Viton brown Part Number: C449900786 |
$5.90 | View Part | |
| RECELPLUSV2-5 | 41 |
|
Pump thermoprotector Part Number: C199900969 |
$9.94 | View Part |
| RECELPLUSV2-5 | 42 | Oring 4081
Part Number: A449905151 Notes: use from Sn D1308 |
