Rocket Espresso Mozzafiato Cronometro R Part Diagram REMOZZCRONR
This is the Rocket Espresso Mozzafiato Cronometro R Part Diagram REMOZZCRONR. In the list below, you will find all the parts associated with the diagram that are available. Use the parts diagram to determine the part(s) you need.
If the part listed below is not viewable then we do not carry it at this time. However, if your machine is currently in production we are likely able to acquire the part directly from the manufacturer. In this case, contact us by submitting a support ticket. Please be advised that it may take up to eight weeks for us to receive the part from the manufacturer.
Please note: Parts are neither returnable nor refundable. If you need assistance selecting a part for your machine, please submit a support ticket.-
-
-
-
-
-
| Diagram # | Pos # | Image | Description | Price |
|---|
| Diagram # | Pos # | Image | Description | Price | |
|---|---|---|---|---|---|

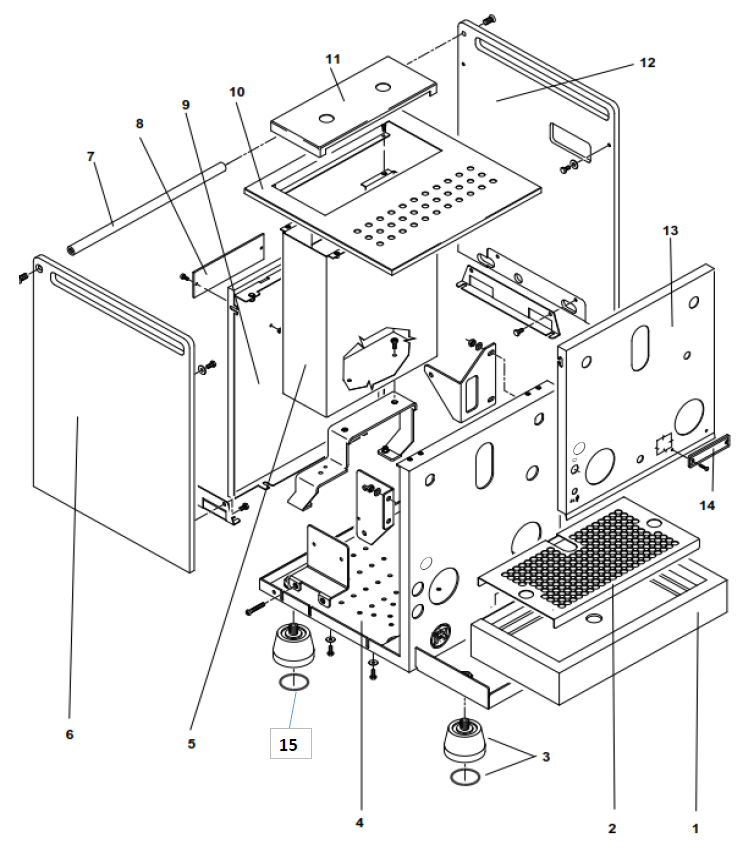

| REMOZZCRONR-1 | 1 |
|
Drip tray Part Number: R01L005125 |
$110.60 | View Part |
| REMOZZCRONR-1 | 2 |
|
Grid Part Number: A019904346 |
$39.80 | View Part |
| REMOZZCRONR-1 | 3 |
|
Foot with silicone O-ring Part Number: A059906054 |
$17.12 | View Part |
| REMOZZCRONR-1 | 4 | Chassis
Part Number: A009906650 |
|||
| REMOZZCRONR-1 | 5 | Tank guide
Part Number: A019904656 |
|||
| REMOZZCRONR-1 | 6 | Left side panel chrome Part Number: A057706158 |
$199.82 | View Part | |
| REMOZZCRONR-1 |
|
Left side panel black Part Number: A0577B6158 |
$167.76 | View Part | |
| REMOZZCRONR-1 | Left side panel white Part Number: A05W706052 |
$167.76 | View Part | ||
| REMOZZCRONR-1 | 7 | Bar
Part Number: A059906053 |
|||
| REMOZZCRONR-1 | 8 |
|
Rear tag Part Number: A859904400 |
$54.04 | View Part |
| REMOZZCRONR-1 | 9 |
|
Rear panel chrome Part Number: C01L004255 |
$117.18 | View Part |
| REMOZZCRONR-1 |
|
Rear panel black Part Number: C01B004255 |
$112.67 | View Part | |
| REMOZZCRONR-1 | Rear panel white Part Number: C01W004255 |
$100.00 | View Part | ||
| REMOZZCRONR-1 | 10 | Cover Part Number: A019906050 |
$71.88 | View Part | |
| REMOZZCRONR-1 | 11 |
|
Reservoir cover Part Number: R01L000382 |
$50.60 | View Part |
| REMOZZCRONR-1 | 12 | Right side panel chrome
Part Number: A057706157 |
|||
| REMOZZCRONR-1 | Right side panel black Part Number: A0577B6157 |
$167.76 | View Part | ||
| REMOZZCRONR-1 | Right side panel white Part Number: A05W706051 |
$167.76 | View Part | ||
| REMOZZCRONR-1 | 13 | Front panel
Part Number: A01I006648 |
|||
| REMOZZCRONR-1 | 14 | Front tag
Part Number: A859906121 |
|||
| REMOZZCRONR-1 | 15 | OR for foot
Part Number: R849906343 |
|||

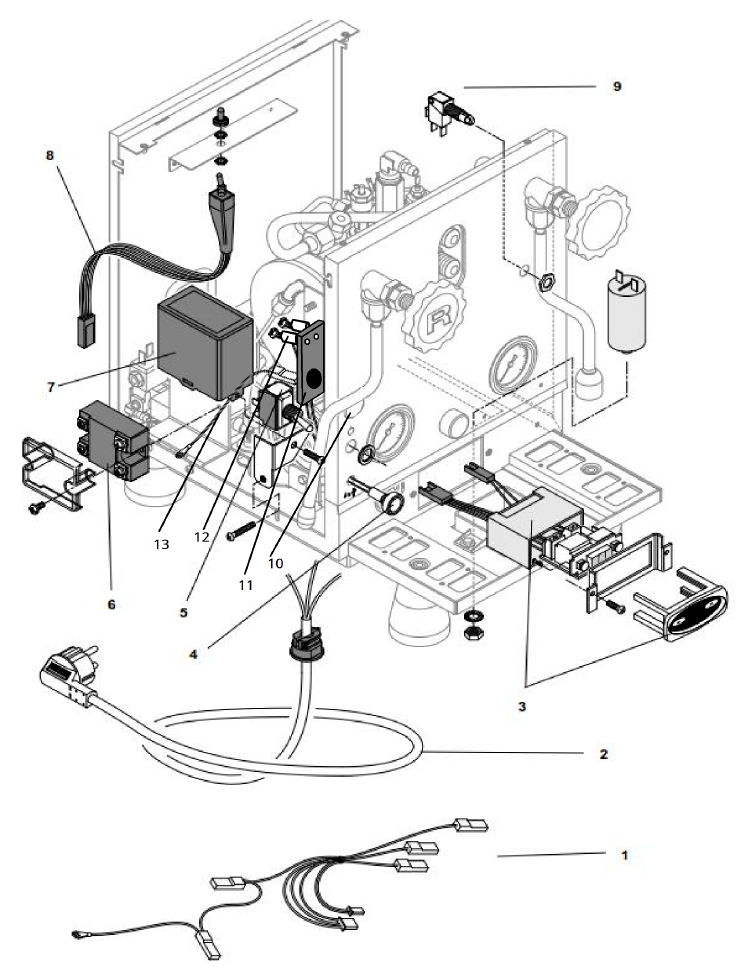

| REMOZZCRONR-2 | 1 | Wiring loom (includes pos. 8)
Part Number: A199906055 |
|||
| REMOZZCRONR-2 | 2 | CE Power cord
Part Number: C199900957 |
|||
| REMOZZCRONR-2 | IS Power cord
Part Number: A199904518 |
||||
| REMOZZCRONR-2 | KR Power cord
Part Number: A199904616 |
||||
| REMOZZCRONR-2 |
|
UL Power cord Part Number: C199900958 |
$35.23 | View Part | |
| REMOZZCRONR-2 | AUS/NZ Power cord
Part Number: C199901115 |
||||
| REMOZZCRONR-2 | GB Power cord
Part Number: C199901116 |
||||
| REMOZZCRONR-2 | CH Power cord
Part Number: C199901510 |
||||
| REMOZZCRONR-2 | 3 | Thermo-PIO V. 230/50
Part Number: A199905505 |
|||
| REMOZZCRONR-2 |
|
Thermo-PIO V. 115/60 Part Number: A199905514 |
$99.20 | View Part | |
| REMOZZCRONR-2 | 4 | Green lamp
Part Number: A139904519 |
|||
| REMOZZCRONR-2 | 5 | On-off switch Part Number: A199906002 |
$37.00 | View Part | |
| REMOZZCRONR-2 | 6 | Rele SSR Part Number: A190004666 |
$51.20 | View Part | |
| REMOZZCRONR-2 | 7 | Control board V.230-240 /50 - 60 Hz
Part Number: A199906656 |
|||
| REMOZZCRONR-2 | Control board V. 115/60
Part Number: A199906657 |
||||
| REMOZZCRONR-2 | 9 | Microswitch Part Number: A199905198 |
$22.70 | View Part | |
| REMOZZCRONR-2 | 10 | Glass Display Cronometro
Part Number: A439906644 |
|||
| REMOZZCRONR-2 | 11 | Display Cronometro Part Number: A199906642 |
$73.04 | View Part | |
| REMOZZCRONR-2 | 12 | Spacer Display Cronometro
Part Number: A439906653 |
|||
| REMOZZCRONR-2 | 13 | Cable Display Cronometro
Part Number: A199906722 |
|||

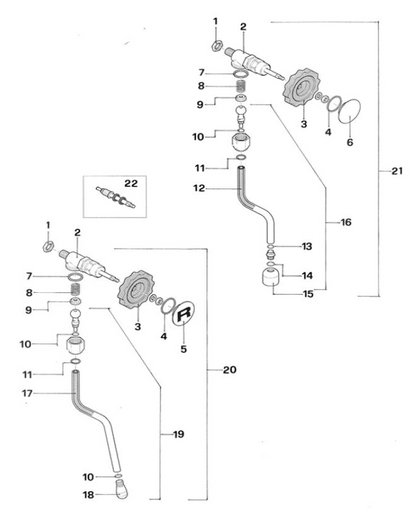

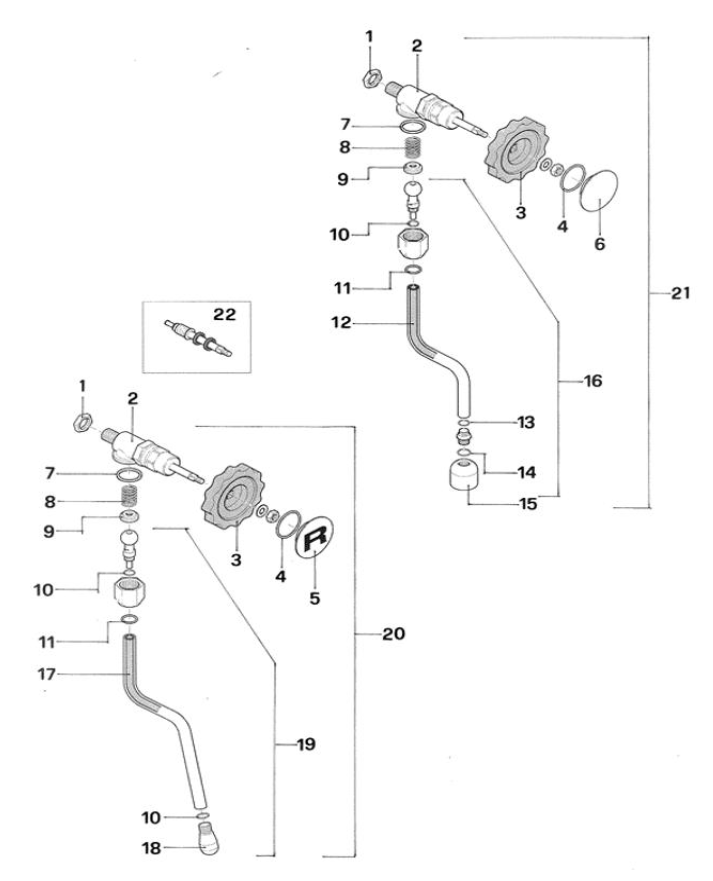

| REMOZZCRONR-3 | 1 | Nut 1/4"
Part Number: A329905087 |
|||
| REMOZZCRONR-3 | 2 | Valve Part Number: A229905784 |
$36.90 | View Part | |
| REMOZZCRONR-3 | 3 | Handle Part Number: A639905816 |
$16.14 | View Part | |
| REMOZZCRONR-3 | 4 | O-Ring Part Number: A449904672 |
$5.98 | View Part | |
| REMOZZCRONR-3 | 5 |
|
"R" cover for steam valve handle Part Number: A529R04649 |
$58.00 | View Part |
| REMOZZCRONR-3 | 6 |
|
Cover for hot water handle Part Number: A527704649 |
$27.68 | View Part |
| REMOZZCRONR-3 | 7 |
|
Teflon gasket Part Number: A449904331 |
$5.40 | View Part |
| REMOZZCRONR-3 | 8 | Spring Part Number: A209904332 |
$6.78 | View Part | |
| REMOZZCRONR-3 | 9 | Plate
Part Number: A229904333 |
|||
| REMOZZCRONR-3 | 10 | O-Ring Part Number: C400002022 |
$5.43 | View Part | |
| REMOZZCRONR-3 | 11 | O-Ring
Part Number: A449904334 |
|||
| REMOZZCRONR-3 | 12 | Siliconr pipe 4 x 7
Part Number: C440003449 |
|||
| REMOZZCRONR-3 | 13 | O-Ring Part Number: C400002022 |
$5.43 | View Part | |
| REMOZZCRONR-3 | 14 | O-Ring Part Number: C400003008 |
$5.60 | View Part | |
| REMOZZCRONR-3 | 15 | Hot water nozzle Part Number: C227700536 |
$22.13 | View Part | |
| REMOZZCRONR-3 | 16 |
|
Hot water wand (complete) Part Number: R290003612 |
$59.98 | View Part |
| REMOZZCRONR-3 | 17 | Silicone pipe 4 x 7
Part Number: C440003449 |
|||
| REMOZZCRONR-3 | 18 | Steam nozzle 2 holes 1,5 Part Number: C200002839 |
$19.78 | View Part | |
| REMOZZCRONR-3 | 19 |
|
Steam wand (complete) Part Number: R290003611 |
$57.13 | View Part |
| REMOZZCRONR-3 | 20 | Steam wand with valve Part Number: R299906015 |
$189.29 | View Part | |
| REMOZZCRONR-3 | 21 | Hot water wand with valve Part Number: R299906016 |
$189.29 | View Part | |
| REMOZZCRONR-3 | 22 | Shaft Part Number: R229905953 |
$19.99 | View Part | |

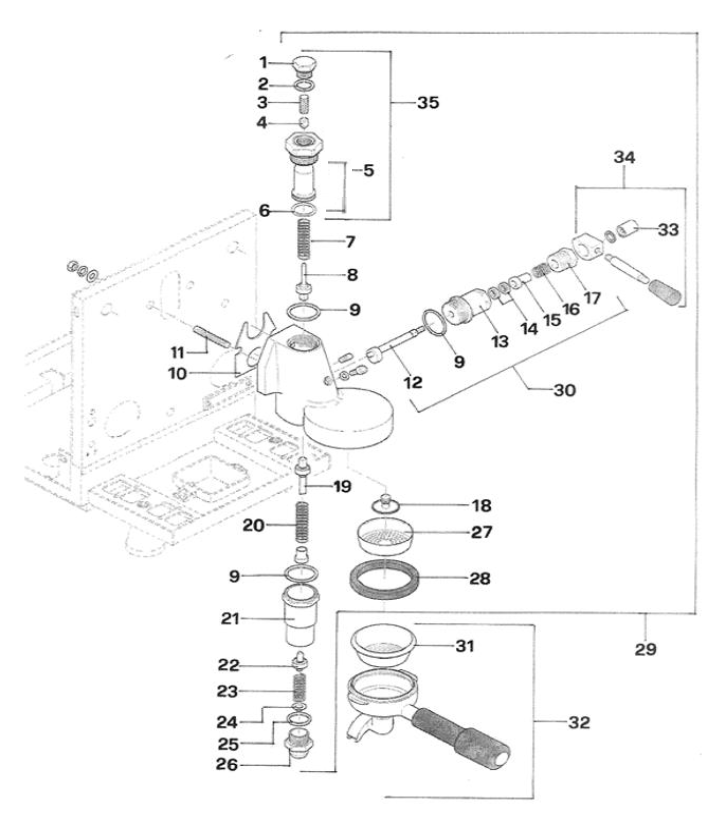

| REMOZZCRONR-4 | 1 | Rounded nut Part Number: A229904391 |
$10.76 | View Part | |
| REMOZZCRONR-4 | 2 |
|
Gasket Part Number: C469900420 |
$6.60 | View Part |
| REMOZZCRONR-4 | 3 | Filter Part Number: C619900554 |
$18.74 | View Part | |
| REMOZZCRONR-4 | 4 |
|
Restrictor 0,8 Part Number: C229900549 |
$8.30 | View Part |
| REMOZZCRONR-4 | 6 |
|
Green gasket Part Number: C469900422 |
$9.80 | View Part |
| REMOZZCRONR-4 | 7 |
|
Spring Part Number: C219900423 |
$15.27 | View Part |
| REMOZZCRONR-4 | 8 |
|
Valve Part Number: C219900424 |
$12.95 | View Part |
| REMOZZCRONR-4 | 9 |
|
Teflon gasket Part Number: C469900421 |
$7.30 | View Part |
| REMOZZCRONR-4 | 10 |
|
Gasket Part Number: C449900767 |
$10.13 | View Part |
| REMOZZCRONR-4 | 11 | Screw
Part Number: A319904599 |
|||
| REMOZZCRONR-4 | 12 | Shaft Part Number: R229905238 |
$56.46 | View Part | |
| REMOZZCRONR-4 | 13 | Flange Part Number: R000002142 |
$21.46 | View Part | |
| REMOZZCRONR-4 | 14 | Gasket
Part Number: C219900426 |
|||
| REMOZZCRONR-4 | 15 | Support Part Number: R000002143 |
$12.20 | View Part | |
| REMOZZCRONR-4 | 16 | Spring Part Number: C219900427 |
$11.40 | View Part | |
| REMOZZCRONR-4 | 17 |
|
Cover Part Number: R000002144 |
$9.67 | View Part |
| REMOZZCRONR-4 | 18 | Diffuser Part Number: C229901228 |
$28.08 | View Part | |
| REMOZZCRONR-4 | 19 |
|
Valve Part Number: C219900430 |
$12.95 | View Part |
| REMOZZCRONR-4 | 20 | Spring Part Number: A219904309 |
$7.88 | View Part | |
| REMOZZCRONR-4 | 21 |
|
Cylinder Part Number: C229901165 |
$105.79 | View Part |
| REMOZZCRONR-4 | 22 |
|
Valve Part Number: C219903081 |
$21.64 | View Part |
| REMOZZCRONR-4 | 23 |
|
Spring Part Number: C219900431 |
$8.83 | View Part |
| REMOZZCRONR-4 | 24 |
|
Connector Part Number: R000002148 |
$9.99 | View Part |
| REMOZZCRONR-4 | 25 | Gasket Part Number: C469900783 |
$7.01 | View Part | |
| REMOZZCRONR-4 | 26 | Connector Part Number: R000002149 |
$12.28 | View Part | |
| REMOZZCRONR-4 | 27 |
|
Shower foil Part Number: C519900103 |
$15.20 | View Part |
| REMOZZCRONR-4 | 28 | Group gasket
Part Number: C449900229 |
|||
| REMOZZCRONR-4 | 29 | Group complete Part Number: C200002983 |
$264.89 | View Part | |
| REMOZZCRONR-4 | 30 | Cam kit
Part Number: R299905887 |
|||
| REMOZZCRONR-4 | 31 |
|
7 g filter basket Part Number: C610003902 |
$18.38 | View Part |
| REMOZZCRONR-4 | 14 g filterbasket Part Number: C610003901 |
$18.38 | View Part | ||
| REMOZZCRONR-4 | Backflush cap ("blind filter") Part Number: C619900106 |
$14.16 | View Part | ||
| REMOZZCRONR-4 | 32 | 1 cup filter holder with basket Part Number: A699905020 |
$49.75 | View Part | |
| REMOZZCRONR-4 | 2 cups filter holder with basket Part Number: A699905021 |
$49.75 | View Part | ||
| REMOZZCRONR-4 | 33 | Pin Part Number: R000002146 |
$7.75 | View Part | |
| REMOZZCRONR-4 | 34 | Lever assembly
Part Number: R299905888 |
|||
| REMOZZCRONR-4 | 35 |
|
Ceramic group shaft Part Number: RA99905814 |
$98.00 | View Part |

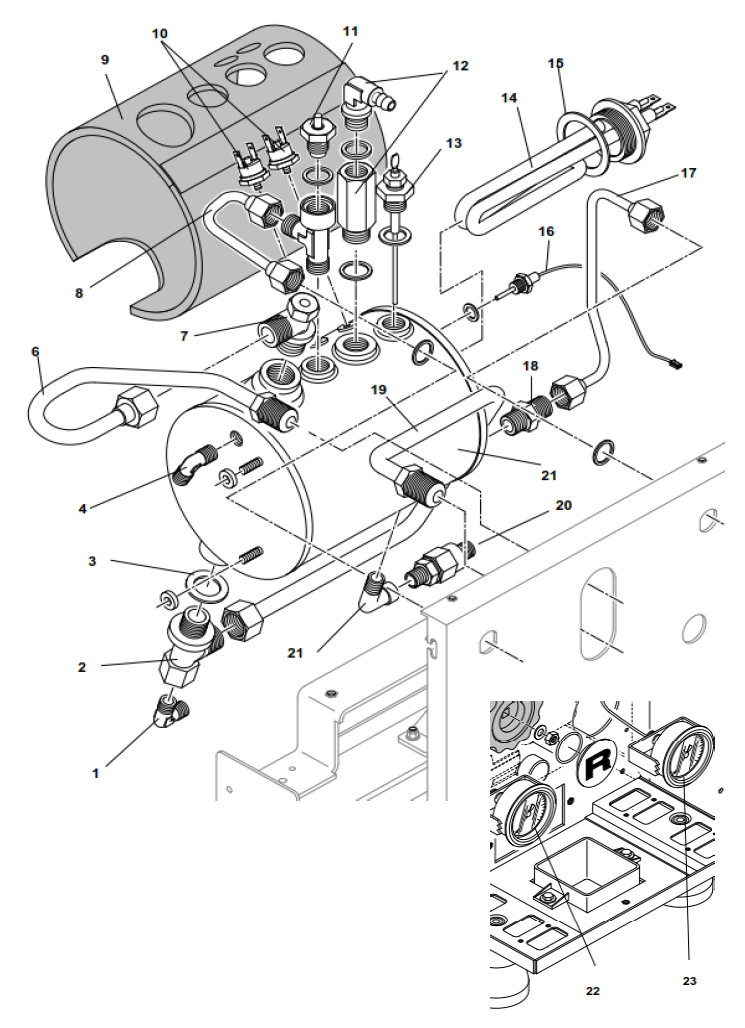

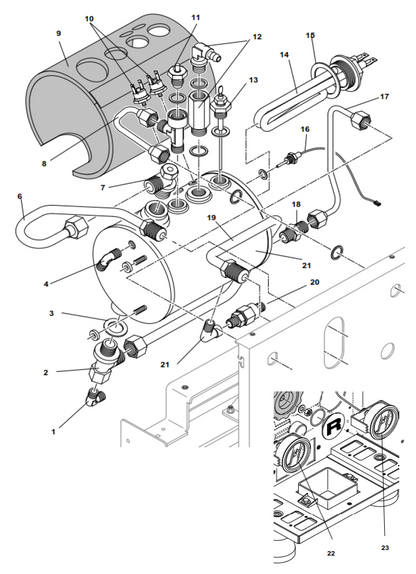

| REMOZZCRONR-5 | 1 |
|
Injector 110 mm Part Number: C229900393 |
$11.84 | View Part |
| REMOZZCRONR-5 | 2 |
|
Connector Part Number: C229900740 |
$14.60 | View Part |
| REMOZZCRONR-5 | 3 |
|
Copper gasket Part Number: C479900673 |
$6.38 | View Part |
| REMOZZCRONR-5 | 4 | Connector
Part Number: A229904355 |
|||
| REMOZZCRONR-5 | 6 | Inlet pipe Part Number: A279905173 |
$18.37 | View Part | |
| REMOZZCRONR-5 | 7 |
|
Connector Part Number: A229904957 |
$10.52 | View Part |
| REMOZZCRONR-5 | 8 | Steam pipe Part Number: A279904290 |
$23.70 | View Part | |
| REMOZZCRONR-5 | 9 | Boiler insulation Part Number: A499905058 |
$14.55 | View Part | |
| REMOZZCRONR-5 | 10 |
|
Thermostat 135C Part Number: C199901550 |
$34.56 | View Part |
| REMOZZCRONR-5 | 11 | Vacuum breaker valve Part Number: A219905510 |
$24.90 | View Part | |
| REMOZZCRONR-5 | 12 |
|
Safety valve Part Number: A299904998 |
$39.79 | View Part |
| REMOZZCRONR-5 | 13 | Boiler level probe Part Number: C199900839 |
$46.58 | View Part | |
| REMOZZCRONR-5 | 14 | Heating element V. 230
Part Number: C199901551 |
|||
| REMOZZCRONR-5 | Heating element V.1115 Part Number: C199901552 |
$109.64 | View Part | ||
| REMOZZCRONR-5 | 15 | Heating element gasket Part Number: C469900239 |
$9.84 | View Part | |
| REMOZZCRONR-5 | 16 | NTC probe
Part Number: A119905081 |
|||
| REMOZZCRONR-5 | 17 | Water pipe Part Number: A229905097 |
$23.73 | View Part | |
| REMOZZCRONR-5 | 18 | Connector Part Number: C229900520 |
$10.00 | View Part | |
| REMOZZCRONR-5 | 19 | Return pipe
Part Number: A279904289 |
|||
| REMOZZCRONR-5 | 20 | Non return valve Part Number: C229900540 |
$30.04 | View Part | |
| REMOZZCRONR-5 | 21 | Boiler Part Number: A277704278 |
$351.11 | View Part | |
| REMOZZCRONR-5 | 22 |
|
Boiler pressure gauge with capillary pipe Part Number: A299905009 |
$64.28 | View Part |
| REMOZZCRONR-5 | 23 |
|
Pump pressure gauge with capillary pipe Part Number: A299905010 |
$70.21 | View Part |

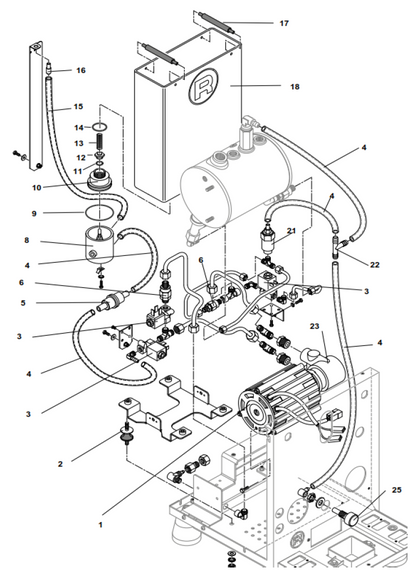

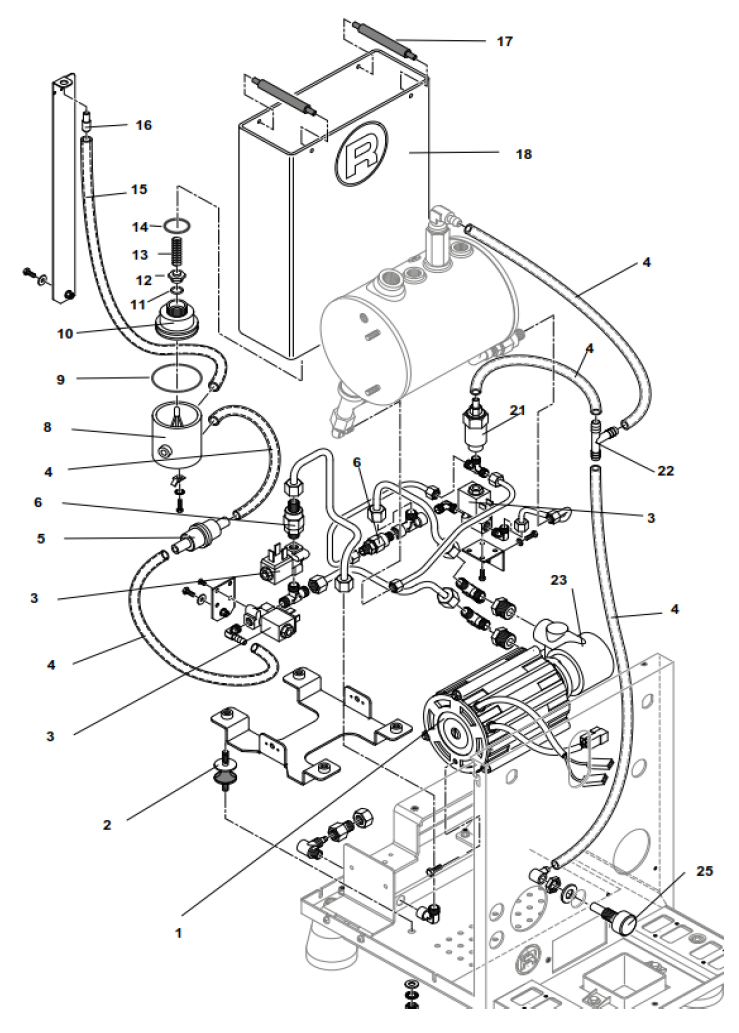

| REMOZZCRONR-6 | 1 | Pump motor V. 220-230-240
Part Number: A199904493 |
|||
| REMOZZCRONR-6 |
|
Pump motor V. 110-115 Part Number: A199904494 |
$218.40 | View Part | |
| REMOZZCRONR-6 | 2 | Anti-vibration absorber
Part Number: A499904364 |
|||
| REMOZZCRONR-6 | 3 | Solenoid valve V. 230
Part Number: C190004066 |
|||
| REMOZZCRONR-6 |
|
Solenoid valve V.115 Part Number: C190004067 |
$61.64 | View Part | |
| REMOZZCRONR-6 | 4 | Silicone pipe 5x8
Part Number: C499900769 |
|||
| REMOZZCRONR-6 | 5 |
|
Filter Part Number: C439900695 |
$9.91 | View Part |
| REMOZZCRONR-6 | 6 | Non return valve Part Number: C229900540 |
$30.04 | View Part | |
| REMOZZCRONR-6 | 8 | Manifold
Part Number: R839905148 |
|||
| REMOZZCRONR-6 | 9 | O-ring
Part Number: A449904547 |
|||
| REMOZZCRONR-6 | 10 | Coupling
Part Number: A439905146 |
|||
| REMOZZCRONR-6 | 11 | O-ring
Part Number: C449900702 |
|||
| REMOZZCRONR-6 | 12 | Connector
Part Number: C430003482 |
|||
| REMOZZCRONR-6 | 13 | Spring
Part Number: C019900711 |
|||
| REMOZZCRONR-6 | 14 | O-ring
Part Number: A449905151 |
|||
| REMOZZCRONR-6 | 15 | Silicone pipe 6x9
Part Number: C260003822 |
|||
| REMOZZCRONR-6 | 16 | Non return connector
Part Number: C220003818 |
|||
| REMOZZCRONR-6 | 17 | Water reservoir handle Part Number: A639904956 |
$8.32 | View Part | |
| REMOZZCRONR-6 | 18 | Water tank complete (18+9+10+11+12+13+14)
Part Number: R899905144 |
|||
| REMOZZCRONR-6 | 21 | Expansion valve Part Number: C229900911 |
$48.28 | View Part | |
| REMOZZCRONR-6 | 22 | Plastic connector
Part Number: C400002827 |
|||
| REMOZZCRONR-6 | 23 |
|
Rotary pump Part Number: A299904495 |
$85.08 | View Part |
| REMOZZCRONR-6 | 25 | Connector
Part Number: A227704363 |
