Rocket Espresso Mozzafiato Type v

A stylish stunner, Rocket Espresso’s Mozzafiato Type V features a heat exchange boiler, PID controller for serious temperature stability, and a reimagined E61 group that incorporates a dual pre-infusion system. Shots on the Mozzafiato are consistent and rich time and again.

Looking for something?

It looks like you've found one of our old product listings! It had a good run and is enjoying some well deserved rest. Instead, we've put together some excellent alternatives below for your consideration.

Need any help? Talk to one of our experts: 585-924-7170

View full details

Owning the Rocket Espresso Mozzafiato Type V

The Mozzafiato Type V is a sister machine to the Giotto Type V, and they share everything, though, like sisters, they have different styles. The Giotto is a riskier dresser with its structured panels, while the Mozzafiato is on the traditional side, opting for standard panels. That’s not to say the Mozzafiato doesn’t like to stand out, though. Rocket has incorporated all of its great aesthetic elements, such as the tapered, height adjustable feet, and easy-grip gear steam and hot water knobs with the iconic “R” stamped on the steam side. As a heat exchange machine, the Mozzafiato can brew and steam simultaneously, and, its integrated PID controller keeps the temperature stable and can be programmed across four settings to accommodate any roast. Helping with the temperature stability is the E61 group, which syphons water from the boiler, through the group, and back. Rocket’s redesigned E61 group head, which has a dual pre-infusion system consisting of a static chamber and mechanical working piston, aids in fully saturating the grounds, while the PID keeps the temperature consistent, both elements combining to ensure an excellent extraction each shot you brew. Rocket was one of the first manufacturers to incorporate a PID in a HX machine, a truly innovative choice which has inspired many others to do the same.

Internally, the Mozzafiato Type V is identical to the Giotto Type V. It houses a large 1.8 L copper boiler and 1200 watt heating element, and, integrated sensors monitor the boiler and reservoir levels for low volumes, alerting you, and, if necessary, shutting off automatically so as not to let the boiler run dry. One of our favorite things about Rocket machines are the accessories. They include a full color training guide complete with a USB thumb drive with extra content. Plus, rather than include a chintzy plastic tamper, Rocket throws in a branded metal tamper so you’re always ready to brew like a pro. The Mozzafiato Type V is a gorgeous, high-performer that will keep you happily caffeinated for years to come. If you love Rocket’s style, but prefer a smaller model, the Appartamento slides into any space at just 9” wide; for even greater functionality, take a look at the Mozzafiato Evoluzione R, which can be plumbed directly into a water line.

You may also like

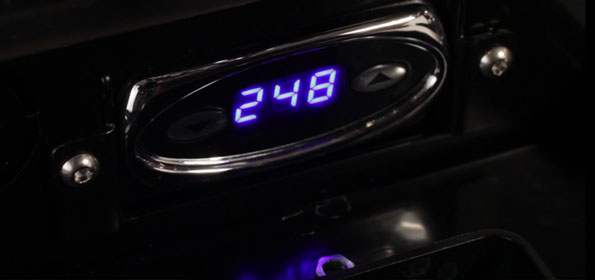

  • PID Temperature Controller

    Generally, heat exchange machines require a cooling flush after steaming or before brewing a shot if the machine has been sitting; however, by integrating a PID to regulate the temperature, Rocket removes the need for a cooling flush. The PID temperature controller uses 4 signal parameters to ensure the best results in the cup.

    Feature Grid Default Image 1

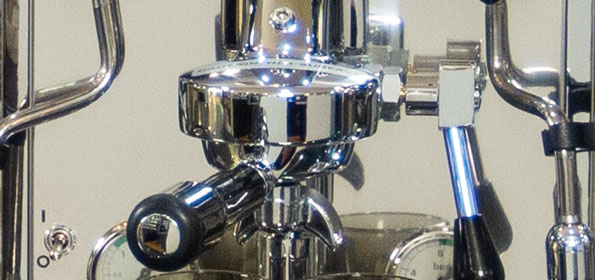

  • Reimagined E61 Brew Group

    In a traditional E61 brew group, hot water is constantly circulated between the boiler and brew-group to ensure proper brewing temperature. Rocket incorporates a dual pre-infusion system into their E61, which consists of a chamber and mechanical working piston, to aid the extraction and ensure the grounds are fully saturated upon brewing.

    Feature Grid Default Image 2

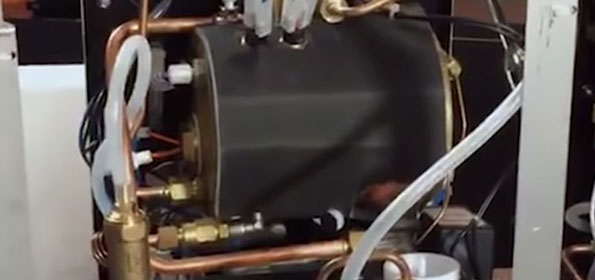

  • Heavy-Duty Boiler

    At the heart of the Mozzafiato Type V is its 1.8 liter copper boiler, equipped with a 1200 watt heating element. The copper design shows improved heat retention and temperature stability, resulting in greater energy efficiency. Passive heat from the boiler also heats the removable cup warmer on the top of the Mozzafiato Type V.

    Feature Grid Default Image 3

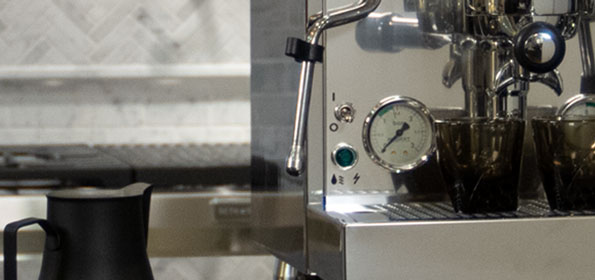

  • No-Burn Stainless Steel Steam Wand

    Rocket Espresso’s patented cool-touch technology ensures that the steam wand is safe to use, since only the nozzle gets hot. The heavy-duty wand has a two-hole tip and is engaged with a large ergonomic control knob at the top of the wand. Below the steam wand is the steam pressure gauge; the machine is at steaming pressure when the gauge measures around 1 bar.

    Feature Grid Default Image 4

On The Blog

  • bannerimage

    Review of Giotto and Mozzafiato Machines from Rocket Espresso

    Back in 2007, Rocket Espresso came together to dedicate themselves to high end espresso and powerful commercial-grade machines for the barista at home. The word “Mozzafiato” roughly translates to “breath-taking” in Italian, and “Giotto” comes from the late Giotto di Bondone, an acclaimed Italian painter and architect from Middle Age...

    Read More About Review of Giotto...

    1 of 1 in Reviews

    1 of 4
  • bannerimage

    Best Espresso Machines of 2024

    If you’re in the market for a new espresso machine, Whole Latte Love is here to help. We have a multitude of options to choose from, but we know it can be hard to find the best espresso machine to fit your exact needs. Read on to learn more about...

    Read More About Best Espresso Machines...

    1 of 3 in Articles

    2 of 4
  • bannerimage

    Espresso Machine Boiler Materials Guide

    When it comes to considering which espresso machine is right for you, the materials used to construct the boiler can make a big difference. Click here to learn more about these differences!

    Read More About Espresso Machine Boiler...

    2 of 3 in Articles

    3 of 4
  • Pulling Great Espresso Shots

    Pulling Great Espresso Shots

    There is no group of settings which will make the perfect shot. Making the best possible shot depends on a bunch of variables coming together to make an espresso you like! That said, I can give you some basic guidelines.

    Read More About Pulling Great Espresso...

    3 of 3 in Articles

    4 of 4

Specifications

Property Value
SKU REMZZFIATOV-WLL
App Connectivity No
Boiler Configuration Heat Exchanger
Number of Boilers 1
Boiler Features Brew & Steam Simultaneously
Brew Boiler Auto-Fill Yes
Brew Boiler Heater Location Internal
Brew Boiler Insulation Yes
Brew Boiler Material Copper with Brass
Brew Boiler Orientation Horizontal
Brew Boiler Type Heat Exchanger
Three-Way Valve Manual
Back Flush Capable Yes
Brew Group Material Chrome Plated Brass
Brew Group Size (mm) 58 mm
Brew Group Type E61
Brew Boiler Wattage 1200
Recommended Application Home / Residential
NSF Certified No
Display Type PID Control Screen
Controls and Additional Features Pre-Infusion,Pressure Gauge(s),Steam Control,Temperature Control
Pressure Gauges Brew Circuit,Steam Boiler
Type of Controls Lever,PID
Cup Height (max, inches) 3.5 in
Cup Warmer Material Stainless Steel
Cup Warmer Size (L-in x W-in) 10 x 10
Cup Warmer Passively Heated
Drain Line Adaptable (Plumbable) Yes
Drip Tray Capacity (oz) 32 fl-oz
Drip Tray Cover Material Stainless Steel
Drip Tray Material Stainless Steel
Portafilter Baskets Included Double,Single
Frame Material Steel
Housing Color Stainless Steel
Housing Material Stainless Steel
Foot/Leg Height (inches) 1.5 in
Recommended Descaler Type Durgol Swiss Espresso Descaler
Recommended Water Filter BWT Bestsave M Anti Scale Filter
Depth (Inches) 16.73
Height (Inches) 15.74
Weight (Lbs) 56
Property Value
Width (Inches) 11
Bottomless Portafilter Available Yes
Filter Diameter (mm) 58 mm
Portafilter Handle Material Plastic
Portafilter Material Chrome Plated Brass
Number of Portafilters Included 2
Ground, E.S.E., Pod and Capsule Compatibility Ground Coffee
Portafilter Type Commercial Style
Portafilter Weight (lbs) 2 lbs
Portafilter Diameter 58 mm
Adjustable Brew Pressure Yes
Pump Pressure (Max. Bar) 15 Bar
Pump Type Vibration
Warranty Service Provider Email support@wholelattelove.com
Warranty Service Provider Whole Latte Love
Warranty Service Provider Phone Number 888-411-5282
Manufacturers Warranty Period 3-Year Parts and Labor Warranty
Amps 10 A
Volt 110V-120V (US)
Watts 1200 Watt
Power Cord Length (inches) 60 in
Power Cord Storage No
Steam Boiler Auto-Fill Yes
Steam Boiler Heater Location Internal
Steam Boiler Insulation Yes
Steam Boiler Material Copper
Steam Boiler Orientation Horizontal
Steam Boiler Type Heat Exchanger
Steam Boiler Volume (Oz) 60.8 fl-oz
Steam Boiler Wattage 1200 Watt
Steam Wand Features Insulated Grip,No-Burn,Swappable Steam Tips
Steam Tip Hole Count 2
Steam Wand Material Stainless Steel
Steam Wand Movement Type Fully Articulated
Steam Wand Commercial
Water Reservoir Access Location Top
Water Reservoir Capacity 98 fl-oz
Water Reservoir Features Removable
Water Reservoir Material Plastic
Water Filter Included No
Water Source Built-In Reservoir
