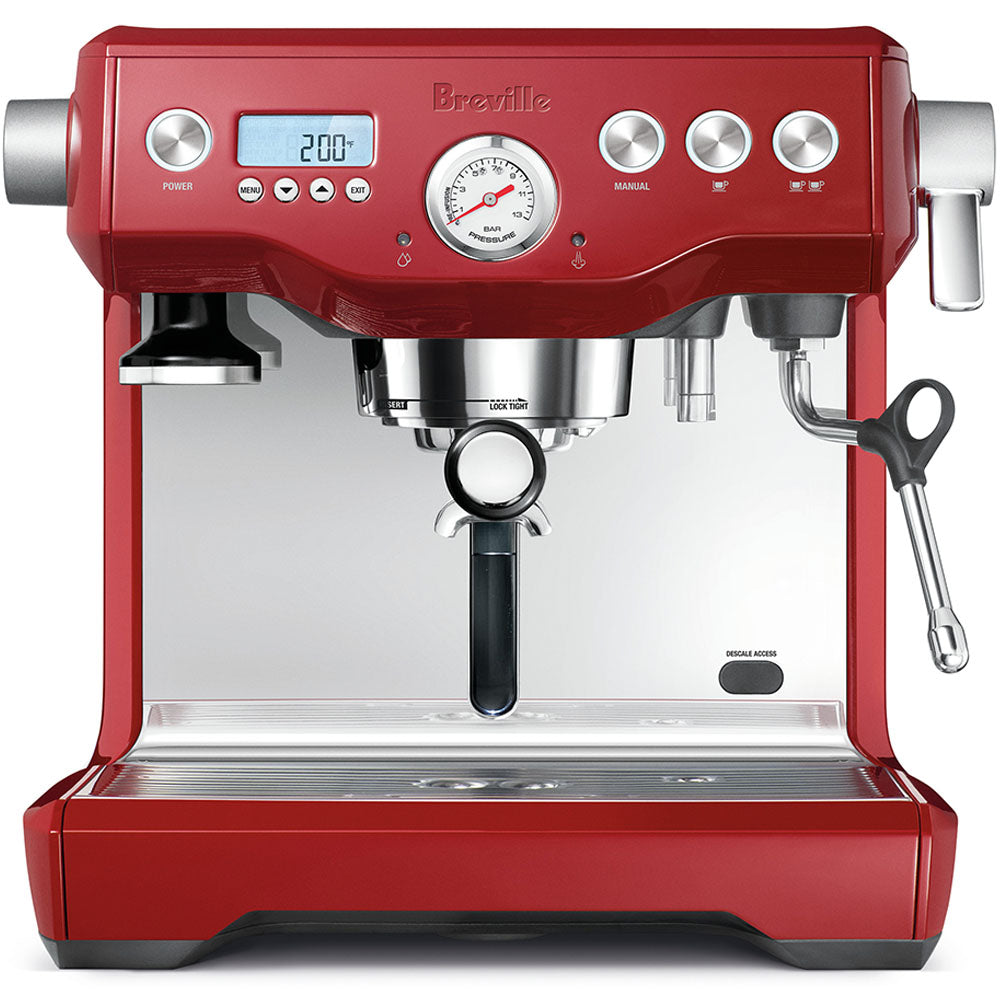

Breville BES920XL Dual Boiler Espresso Machine in Red

Looking for something?

It looks like you've found one of our old product listings! It had a good run and is enjoying some well deserved rest. Instead, we've put together some excellent alternatives below for your consideration.

Need any help? Talk to one of our experts: 585-924-7170

View full details

Owning the Breville BES920XL Dual Boiler Espresso Machine

The Breville Dual Boiler BES920XL espresso machine has been improved so that it no longer meets but exceeds the “Gold Standard” for making great espresso. Breville defines four key elements that dual boilers and state-of-the-art electronic controls should maintain control over: limiting maximum extraction pressure, low pressure pre-infusion, consistent extraction temperature, and simultaneous extraction and steam. With one boiler just for espresso and dual electronic PID controls, (proportional–integral–derivative), the BES920XL delivers temperature controlled pre-heated water to the boiler, producing precise water temperature for an ideal extraction every time! Added temperature control over the steam boiler has been included, allowing you to adjust between 265 - 285 degrees Fahrenheit, allowing you to fine tune steaming pressure.

The Breville BES920XL Dual Boiler features not one, but two PID controllers. One is working on the brew boiler, and the second one is on the grouphead, not the steam boiler. This temperature control delivers precise water temperature for optimum espresso flavor and is user programmable to achieve optimal espresso flavor. The steam boiler is controlled via a thermistor control. This focus on maintaining temperature extends to the commercial grade grouphead which has an embedded element for optimal thermal stability during extraction. This machine also has two pumps. One is a 15 bar Italian pump with over-pressure valve (OPV) protection and delivers water at the optimum maximum extraction pressure of 9 bars. The other one is a less than 3 bar pump exclusively used to feed the steam boiler. That means no pressure problems at the grouphead should the auto-fill decide to trigger for the heat exchanger boiler while you are pulling a shot. Finally, a user programmable low pressure pre-infusion feature gradually increases water pressure to gently expand grinds for an even extraction.

That said, there's still much more to this machine for the coffee geek. Programmable pre-infusion duration and pre-infusion power with manual override; a temperature display in either °F or °C; and preset/manual-override/programmable shot volume. An optional Auto Start setting preheats the machine at a programmed time; a top-fill 84 oz water tank ensures easy access; and the dedicated hot water outlet makes it faster to pre-heat cups or prepare an Americano. There is also a shot clock and pressure gauge to help you improve your barista skills over time. All you'll need are some freshly ground beans and a bit of practice to rival the best café. Brevile has also included their patented 58mm twist blade, allowing you to precisely level off your portafilter for consistent extraction. It might be the last thing you want to think about, but maintaining your machine has never been easier thanks to the new descale alert and assisted descale procedure, which help you to keep your machine in top condition for increased performance and lifespan. If that wasn't enough, Breville offers a 2-Year limited product warranty on the BES920XL.

Included Accessories:

  • Breville 58mm twist blade
  • 58mm stainless steel portafilter (double spout)
  • Single wall filter baskets (1 & 2 cup)
  • Dual wall filter baskets (1 & 2 cup)
  • Integrated tamper
  • 25 fl.oz (750ml) stainless steel frothing jug
  • Cleaning disc and tablets
  • Cleaning tool and Allen key
  • Water filter holder and water filters (1 year supply)

You may also like

On The Blog

  • Profitec Pro 300 vs Breville Dual Boiler

    Profitec Pro 300 vs Breville Dual Boiler

    When the time comes for you to upgrade your espresso machine from a single or heat-exchange boiler to a dual boiler, the first question you should ask yourself is “which one gets me the most value?” Well, we already did some of the research for you and have narrowed the...

    Read More About Profitec Pro 300...

    1 of 1 in Comparisons

Specifications

Property Value
SKU BRBES920XLRED-WLL
Boiler Configuration Dual Boiler
Number of Boilers 2
Boiler Features Brew & Steam Simultaneously
Brew Boiler Heater Location Internal
Brew Boiler Material Stainless Steel
Brew Boiler Type Thermoblock
Brew Group Features Preheat Cycle
Brew Group Size (mm) 58 mm
Brew Group Type Other
Recommended Application Home / Residential
Display Type LCD
Controls and Additional Features Brew Temperature Display,Clock / Timer,Cup Volume Control,Digital Display,Low-Water Warning,Pressure Gauge(s),Steam Control
Pressure Gauges Brew Circuit,Steam Boiler
Type of Controls PID
Cup Height (max, inches) 4
Portafilter Baskets Included Single wall filter baskets (1 & 2 cup), Dual wall filter baskets (1 & 2 cup)
Housing Color Red
Housing Material Stainless Steel, Plastic
Recommended Water Filter Breville Water Filters
Depth (Inches) 15
Height (Inches) 15
Weight (Lbs) 30
Width (Inches) 16.25
Property Value
Filter Diameter (mm) 58
Portafilter Handle Material Plastic
Portafilter Material Stainless Steel
Number of Portafilters Included 2
Ground, E.S.E., Pod and Capsule Compatibility Ground Coffee
Portafilter Type Commercial Style
Pump Type Vibration
Warranty Service Provider Breville
Warranty Service Provider Phone Number 866-273-8455
Manufacturers Warranty Period 2-Year Limited Warranty
Volt 110V-120V (US)
Watts 1700
Steam Boiler Type Heat Exchanger
Steam Boiler Volume (Oz) 32
Steam Wand Features No-Burn
Steam Tip Hole Count 3
Steam Wand Material Metal
Steam Wand Movement Type Fully Articulated
Steam Wand Commercial
Water Reservoir Access Location Rear
Water Reservoir Capacity 84
Water Reservoir Features Removable
Water Reservoir Material Plastic
Water Source Built-In Reservoir
