Single-Boiler/Dual-Use
The Casa V uses a 0.4 liter eco brass boiler for both brewing and steaming. Expect warm up times of just a few minutes until brew-ready. Steam is ready in just one minute.

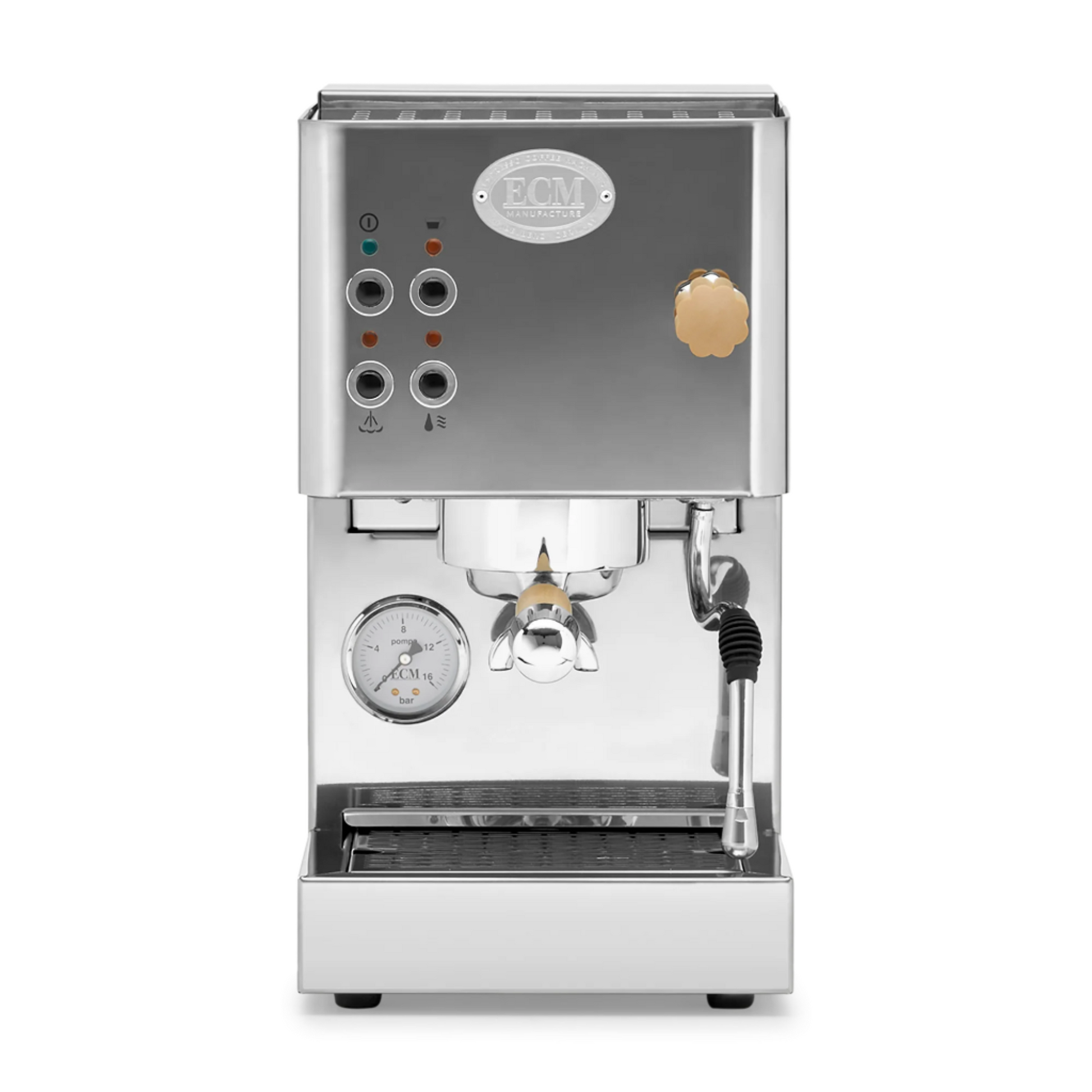

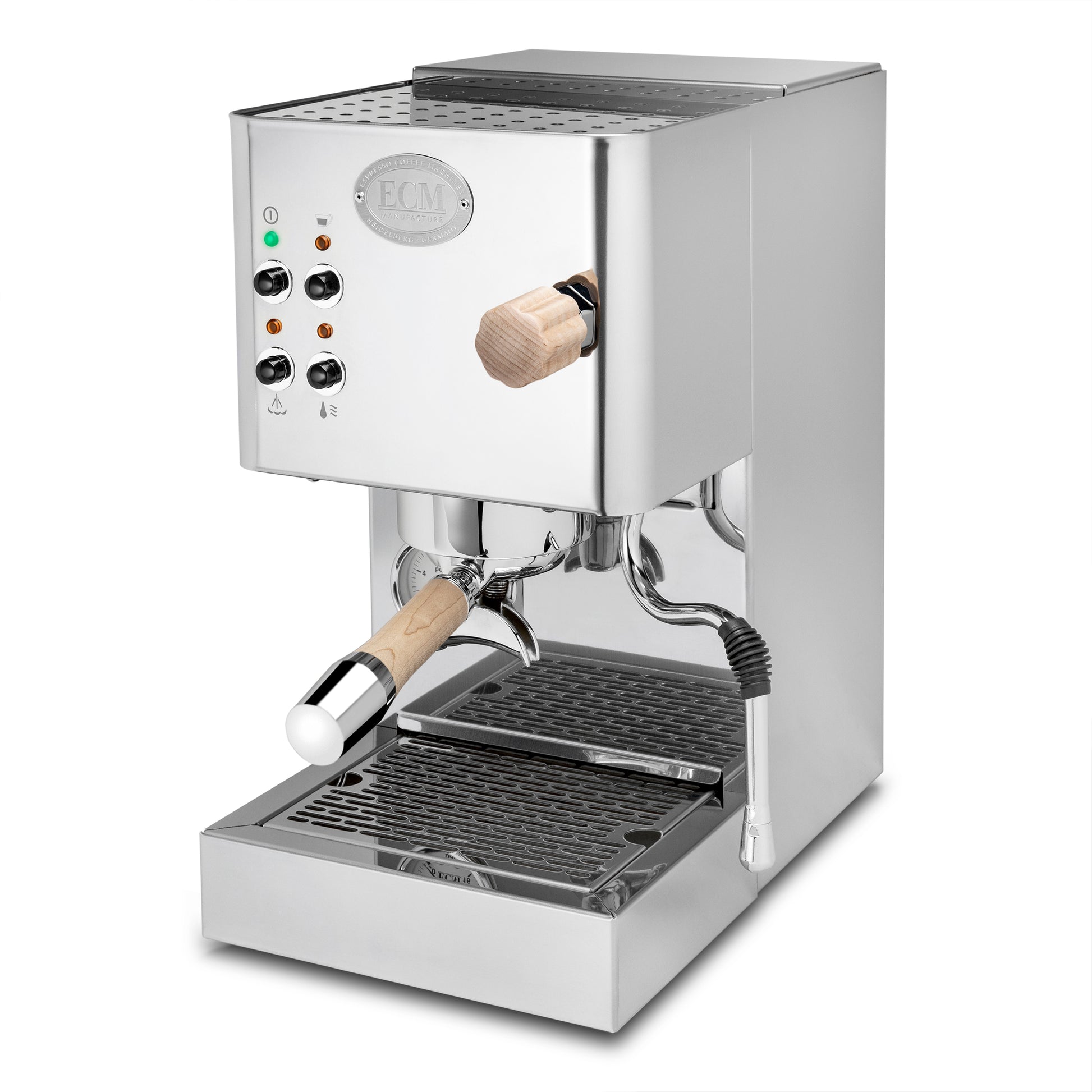

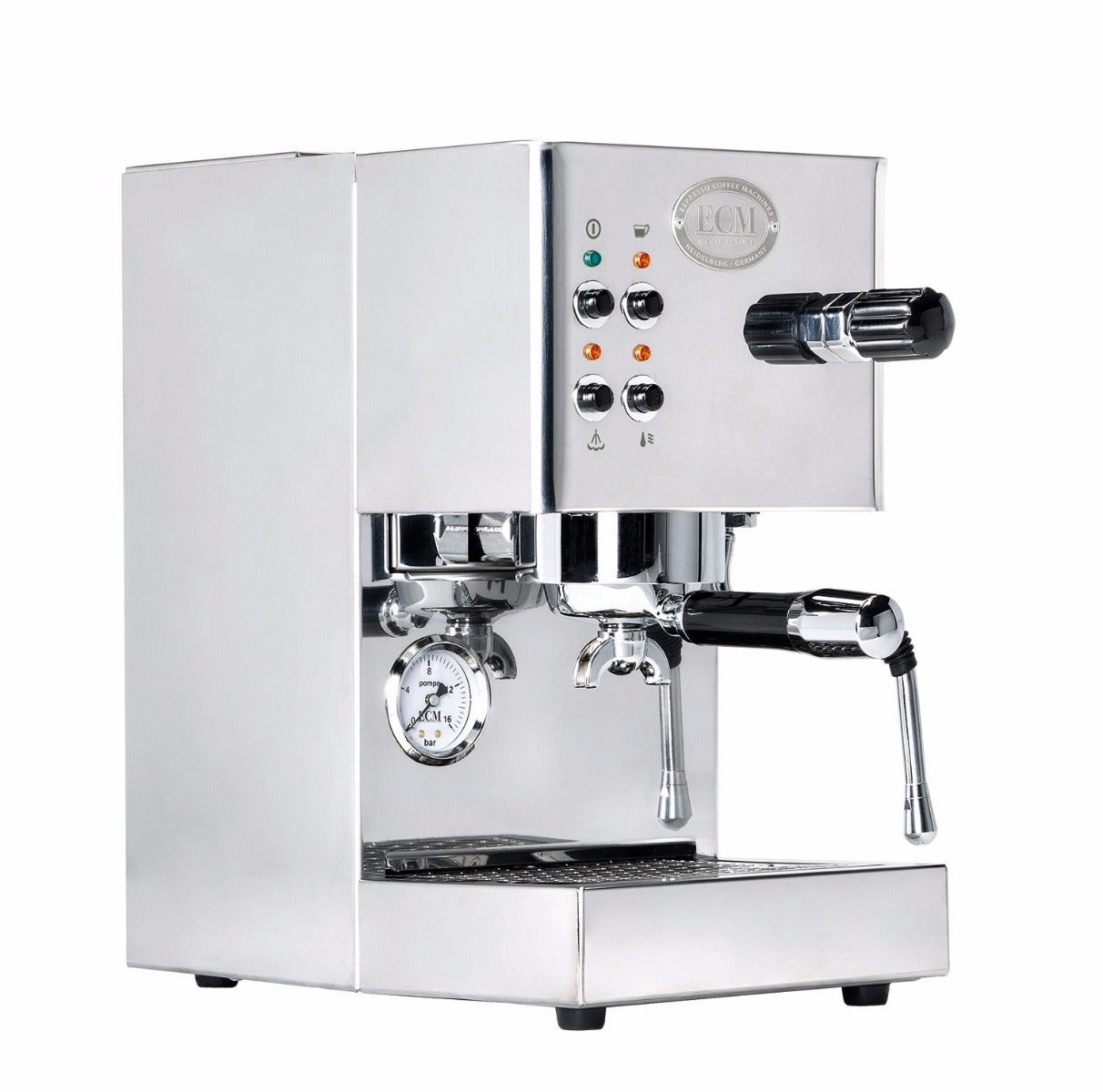

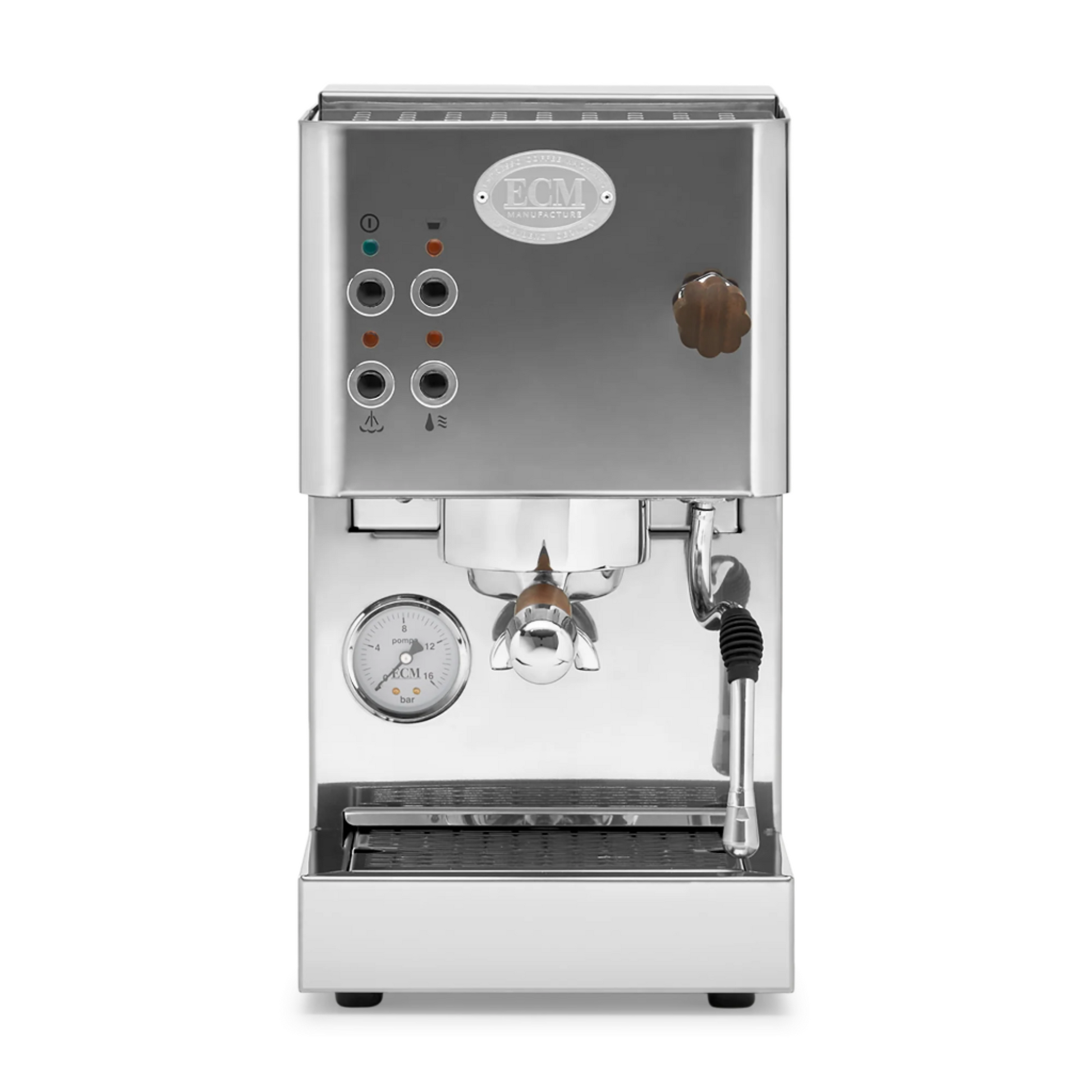

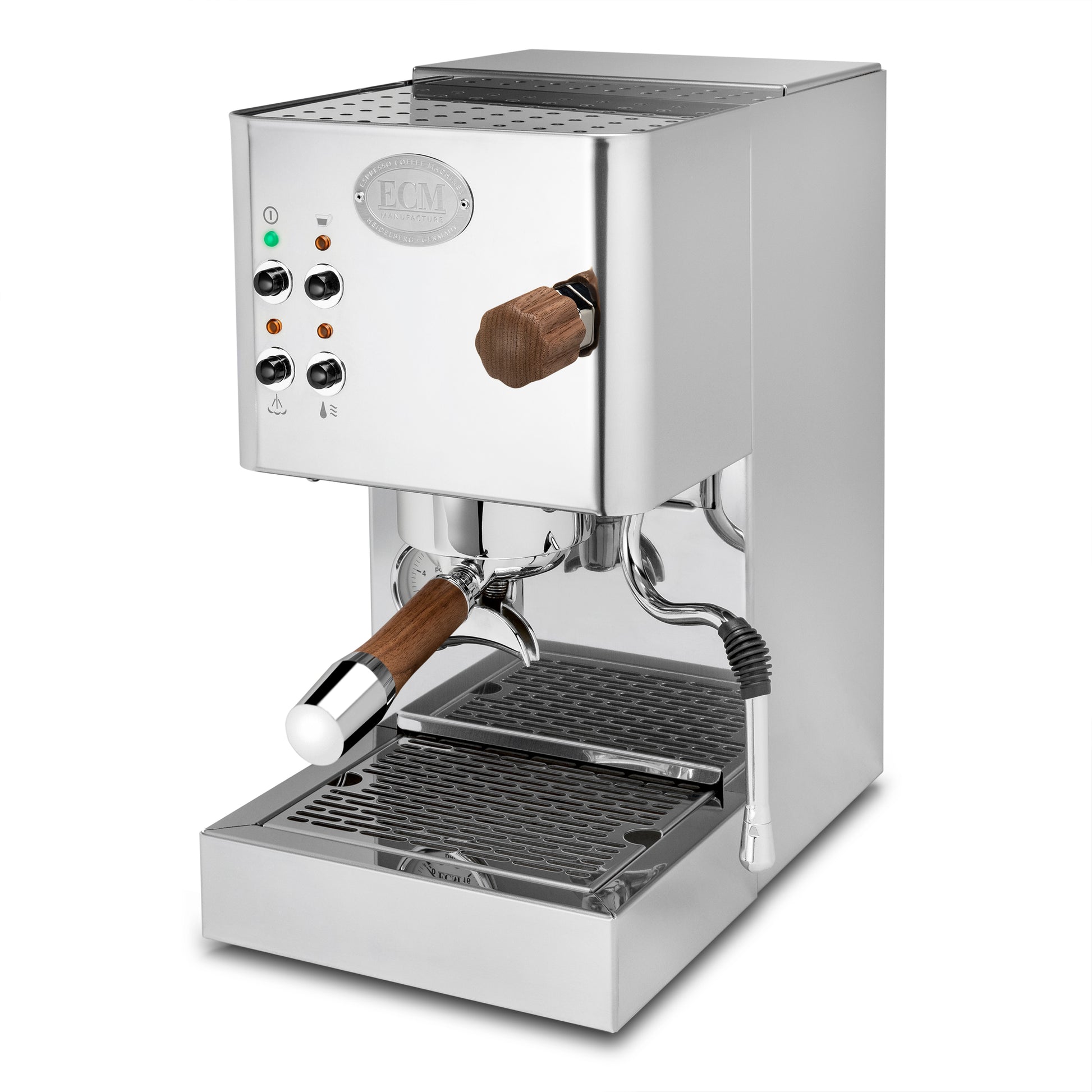

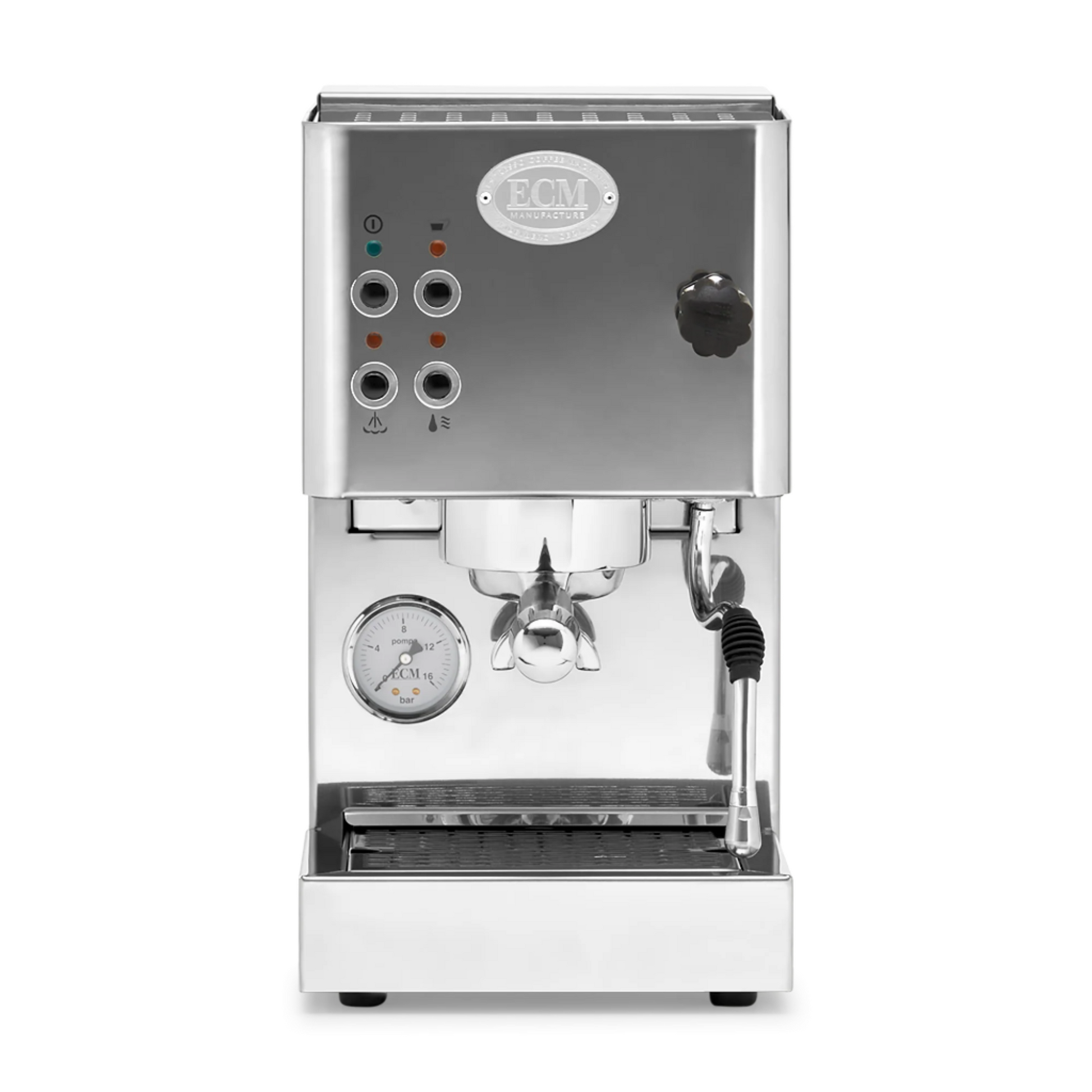

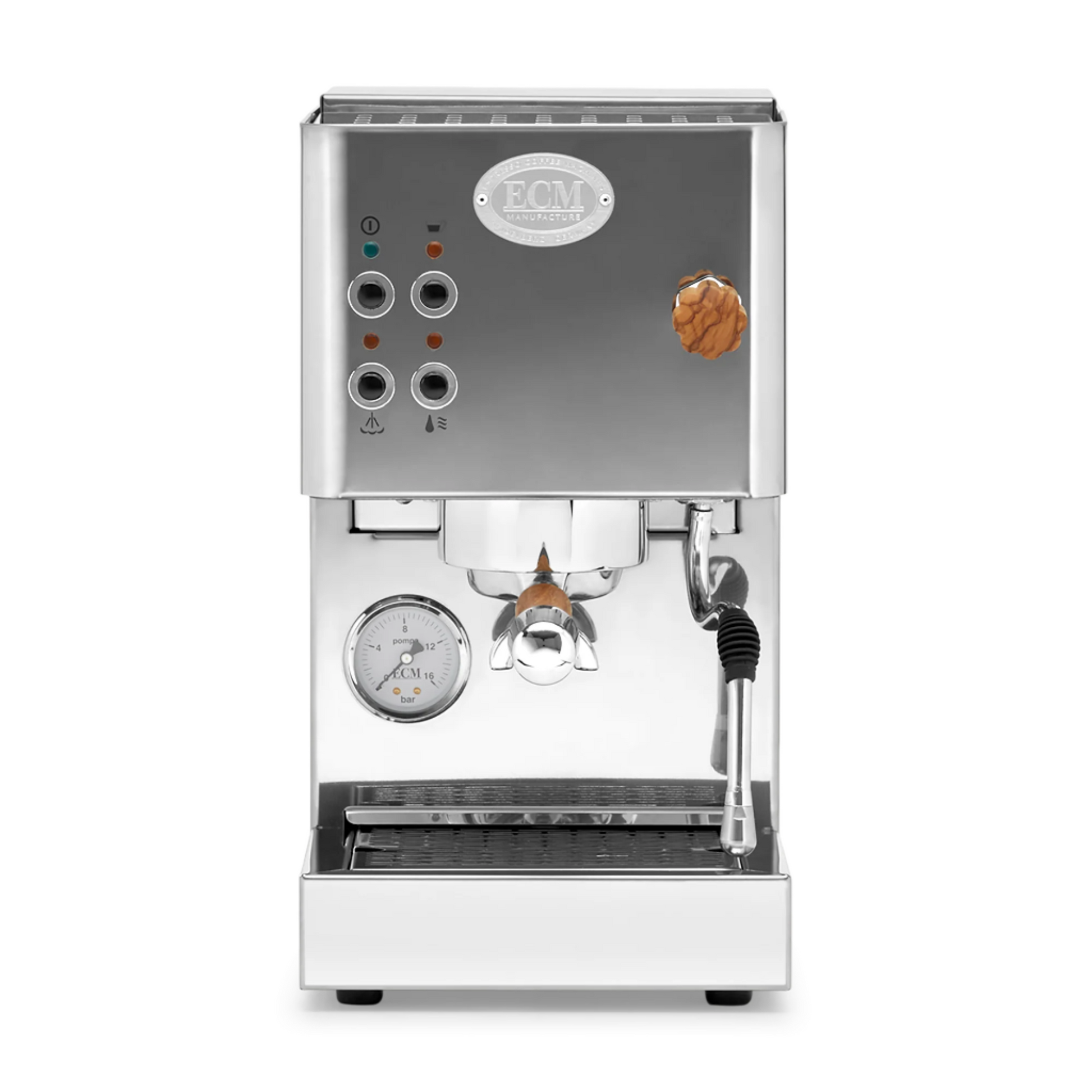

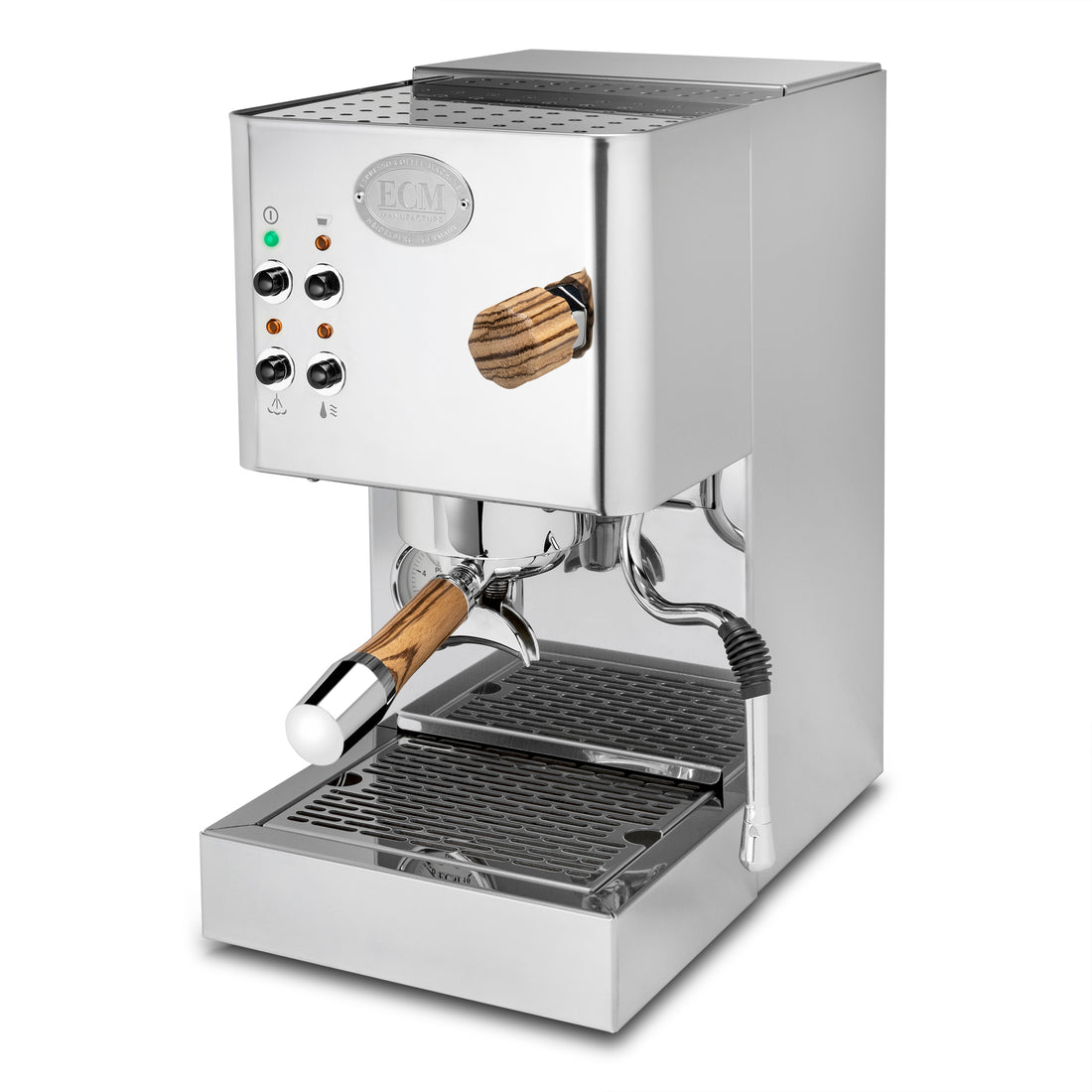

For a single-boiler espresso machine, and one of the smallest products in the ECM line, the ECM Casa V manages to be one of the best semi-automatic machines you can get.
You'll find that many typically prosumer-exclusive features are borrowed in the Casa V. For instance, the brew pressure gauge, which lets you keep an eye on pressure while you brew and gives you a sense as to the quality of your shot. To this end, ECM has made sure that the overpressure valve is easily accessible for pump pressure adjustment, hiding it beneath the cup tray.
The 800 watt heating element goes to work on the 0.4 liter eco brass boiler, heating the Casa V to brewing temperature in 5-7 minutes, or steam temperature in one minute.
The ECM Casa V is perfect in a home of one or two people, where it's performance shines. This is especially so, considering the articulating commercial style steam wand, packing a considerable amount of steam power and equipped with a two-hole steam tip for velvety milk foam. The stainless steel, mirror-finished housing is a nice talking piece, and the commercial features help make an excellent shot of espresso.
The Casa V uses a 0.4 liter eco brass boiler for both brewing and steaming. Expect warm up times of just a few minutes until brew-ready. Steam is ready in just one minute.
At 14.5 inches tall and 8.25 inches wide, the Casa V is a space-saving workhorse. You can expect to find space for it just about anywhere in your home.
The Casa V features four dedicated buttons for powering on the machine, pulling a shot, and dispensing steam or hot water. If you can press a button or turn a knob, you’re already on your way to cafe-quality espresso.
The Casa V heats up fast, from cold to brew in 5-7 minutes. It’s ready to steam in just over one minute. Just remember that cooling flush when you go from steam to brew.
ECM Double-Spouted Portafilter
7-Gram Single-Shot Filter Basket
14-Gram Double-Shot Filter Basket
58mm Tamper w/Stainless Base
Backflush Disc
Brew Group Cleaning Brush
User Manual

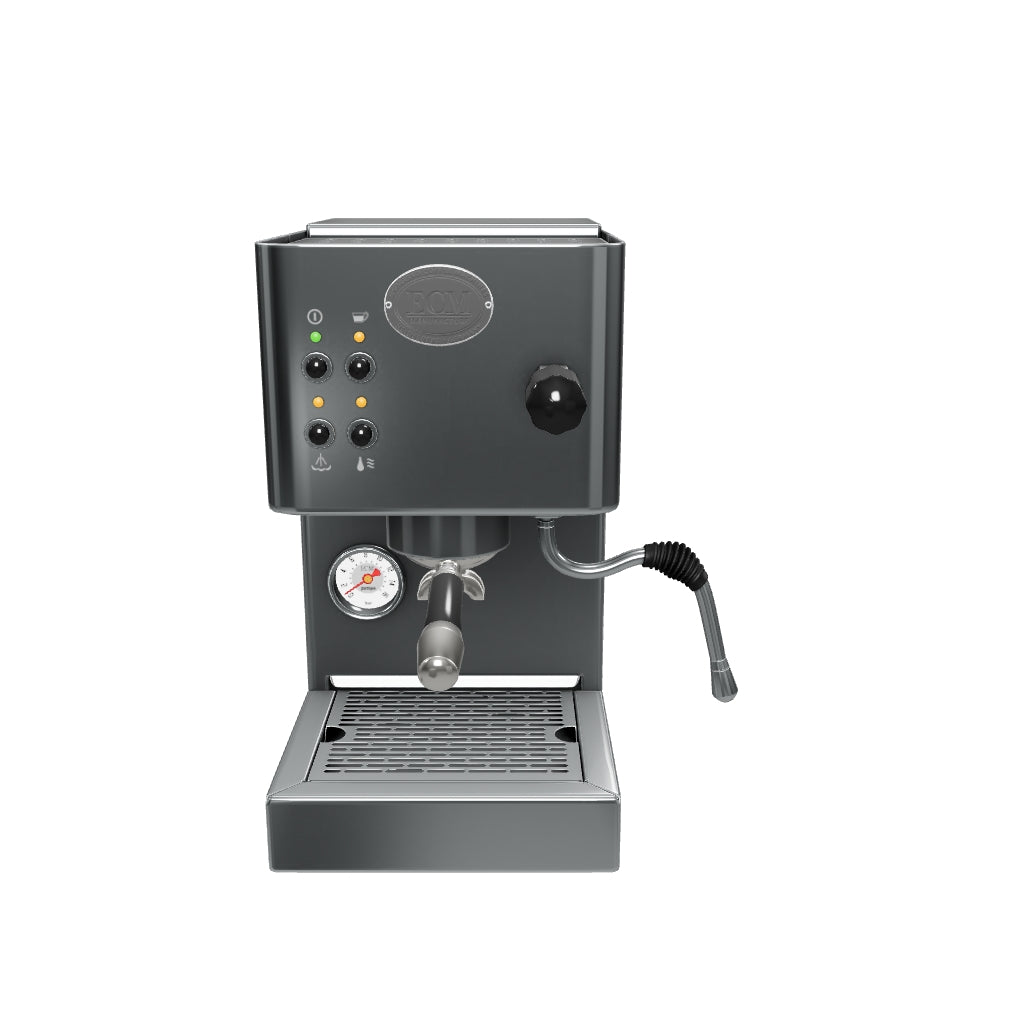

Click the "Launch 3D Viewer" button to open the 3D model viewer and freely rotate or zoom in on a full 3D model of the product. Desktop is limited to the 3D model only, but with a compatible mobile device or tablet, you can get the true experience with Augmented Reality and view the product in your own home.
Using your mouse, you can click and drag to rotate the product in any direction. Using the scroll wheel, you can zoom in and out. Desktop is limited to the 3D model only, but with a compatible mobile device or tablet, you can get the true experience with Augmented Reality and view the product in your own home.
In the 3D viewer, you can tap and drag to rotate the product in any direction. Pinch to zoom in and out. Tap the icon on the bottom right of the viewer to view in full screen and, if your device is compatible, activate Augmented Reality. In Augmented Reality, you can tap and drag to reposition the model, tap and hold and move your camera to reposition the model, and pinch to zoom in and out.
Click and Drag in any direction
Scroll up and down to zoom in and out
If you have AR support you can view in Augmented Reality
Click and Drag in any direction
Scroll up and down to zoom in and out
Grey Limbo
Kitchen
Highrise
Lounge
Click the "Launch 3D Viewer" button to open the 3D model viewer and freely rotate or zoom in on a full 3D model of the product. Desktop is limited to the 3D model only, but with a compatible mobile device or tablet, you can get the true experience with Augmented Reality and view the product in your own home.
Disclaimer: All 3d Models and renderings provided by Whole Latte Love are artist's impressions and are intended for entertainment purposes only. Models may not be to scale, color may vary between devices. Augmented Reality (AR) is not compatible with all mobile devices.
Property | Value |
---|---|
SKU | ECMCASAV |
Boiler Configuration | Single-Boiler/Dual-Use |
Number of Boilers | 1 |
Boiler Features | Rapid Steam |
Brew Boiler Auto-Fill | No |
Brew Boiler Heater Location | Internal |
Brew Boiler Insulation | Yes |
Brew Boiler Material | Brass |
Brew Boiler Orientation | Vertical |
Brew Boiler Volume (Oz) | 13 fl-oz |
Brew Group Features | Preheat Cycle |
Three-Way Valve | Automatic |
Back Flush Capable | Yes |
Brew Group Material | Chrome Plated Brass |
Capsule or Pod Friendly | No |
Brew Group Size (mm) | 58 mm |
Brew Group Type | Ring |
Brew Boiler Wattage | 800 |
Recommended Application | Home / Residential |
NSF Certified | No |
Display Type | Indicator Lights |
Controls and Additional Features | Pressure Gauge(s) |
Pressure Gauges | Brew Circuit |
Type of Controls | Push Button |
Cup Height (max, inches) | 3 in |
Cup Warmer Material | Stainless Steel |
Cup Warmer Size (L-in x W-in) | 8 x 6.75 |
Cup Warmer | Passively Heated |
Drain Line Adaptable (Plumbable) | No |
Drip Tray Capacity (oz) | 30 fl-oz |
Drip Tray Cover Material | Stainless Steel |
Drip Tray Material | Stainless Steel |
Removable Drip Tray | Yes |
Portafilter Baskets Included | Double,Single |
Frame Material | Steel |
Housing Color | Stainless Steel |
Housing Material | Stainless Steel |
Foot/Leg Height (inches) | 0.25 in |
Recommended Descaler Type | Durgol Swiss Espresso Descaler |
Capacity (Oz) | 13.5 fl-oz |
Property | Value |
---|---|
Depth (Inches) | 14.56 |
Height (Inches) | 14.96 |
Weight (Lbs) | 34.5 |
Width (Inches) | 8.26 |
Time to Produce Steam (Seconds) | 60 sec |
Time to Heat (Minimum Seconds) | 300 sec |
Time to Heat (Recommended Seconds) | 420 sec |
Bottomless Portafilter Available | Yes |
Filter Diameter (mm) | 58 mm |
Portafilter Handle Material | Bakelite Plastic,Plastic |
Portafilter Material | Chrome Plated Brass |
Number of Portafilters Included | 1 |
Ground, E.S.E., Pod and Capsule Compatibility | Ground Coffee |
Portafilter Type | Commercial Style |
Portafilter Weight (lbs) | 1.4 lbs |
Portafilter Diameter | 58 mm |
Adjustable Brew Pressure | Yes |
Pump Pressure (Max. Bar) | 16 Bar |
Pump Type | Vibration |
Warranty Service Provider Email | support@wholelattelove.com |
Warranty Service Provider | Whole Latte Love |
Warranty Service Provider Phone Number | 888-411-5282 |
Manufacturers Warranty Period | 2-Year Parts and Labor Warranty |
Volt | 110V-120V (US) |
Watts | 800 Watt |
Power Cord Length (inches) | 38 in |
Power Cord Storage | No |
Steam Wand Features | No-Burn,Swappable Steam Tips |
Height Off Counter (Inches) | 3.375 in |
Steam Tip Hole Count | 2 |
Steam Wand Material | Stainless Steel |
Steam Wand Movement Type | Fully Articulated |
Steam Wand | Commercial |
Steam Wand Usable Length | 3.25 in |
Water Reservoir Access Location | Top |
Water Reservoir Capacity | 101.4 fl-oz |
Water Reservoir Features | Removable |
Water Reservoir Material | Plastic |
Water Source | Built-In Reservoir |
