Single-Boiler/Dual-Use
The Classika PID uses a 0.75 liter stainless steel boiler for both brewing and steaming. Expect warm up times of about 15 minutes until brew-ready. Steam is ready in just 40 seconds.
The ECM Classika PID had us curious out of the box. After a few quick tests, it had our attention. This high-performance semi-automatic comes equipped with tools we would normally expect of much larger prosumer machines that run for $2000 or more.
With a custom machined E61 group head and a PID controller, you can expect great temperature stability and the option to adjust brew temperature to bring out more subtle flavors in high-altitude coffee, as well as adjust steam temperature to get the steaming power you like. To complete your set of tools is the easily accessed pump pressure adjustment screw, which can be found beneath the cup tray.
The Classika's Fast Heat Up is a unique heating cycle that overheats the boiler so that it reaches brew temperatures even faster. After a cooling flush, the super-hot water brings the group head and portafilter to temperature which helps to ensure optimal temperature stability.
The Classika PID brews with a single 0.75 liter stainless steel boiler, which is an important consideration when it comes to capacity versus needs. the Classika PID is a single-boiler machine, you can pull shot after shot but you cannot brew and steam at the same time like you can with a heat exchanger machine.
You'll need to cool and fill the boiler after steaming but it is an easy process and doesn't take long. This makes the Classika PID good for espresso lovers who want perfectly crafted shots at greatly reduced cost and still have room on your counter for nice grinder.
The ECM Classika PID with Flow Control is one of the smallest espresso machines available with both an E61 group and PID temperature controller. The E61 group and PID controller afford much greater temperature stability for more consistent espresso shots, putting it ahead of other single-boiler espresso machines.
The Classika PID uses a 0.75 liter stainless steel boiler for both brewing and steaming. Expect warm up times of about 15 minutes until brew-ready. Steam is ready in just 40 seconds.
Control boiler temperature for searching out those elusive coffee flavors. The integrated shot timer compliments this by giving you a live readout of how long you’ve been pulling your shot.
The E61 grouphead is constantly heated with water from the thermosyphon system for temperature stability. It also features a pre-infusion cylinder to aid in the extraction process.
The Classika PID features Profitec's Fast Heat Up programming, a unique heating cycle. When powering on, if the temperature in the boiler is 104° F or lower, the boiler will begin heating to 266°F and the PID will display "UP." A "FLU" message will display when it's time to flush. On E61 machines like the Classika PID, the flush takes roughly 20 seconds and will have the boiler, group, and portafilter at brew ready temperature in 11 minutes.
ECM Double-Spout Portafilter
7-Gram Single-Shot Filter Basket
14-Gram Double-Shot Filter Basket
Backflush Disc
Brew Group Cleaning Brush
User Manual
58mm Tamper w/Stainless Base

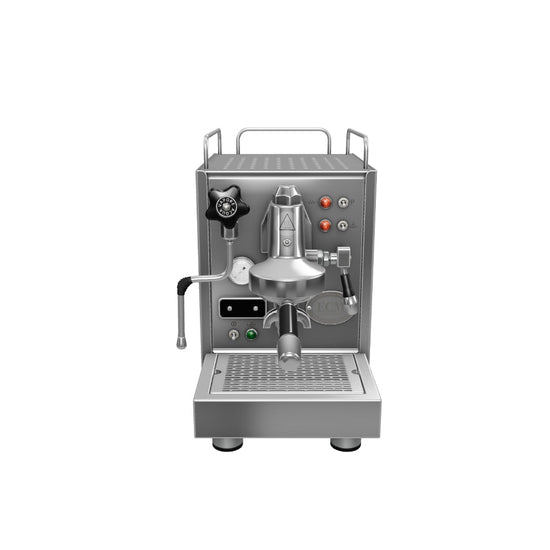

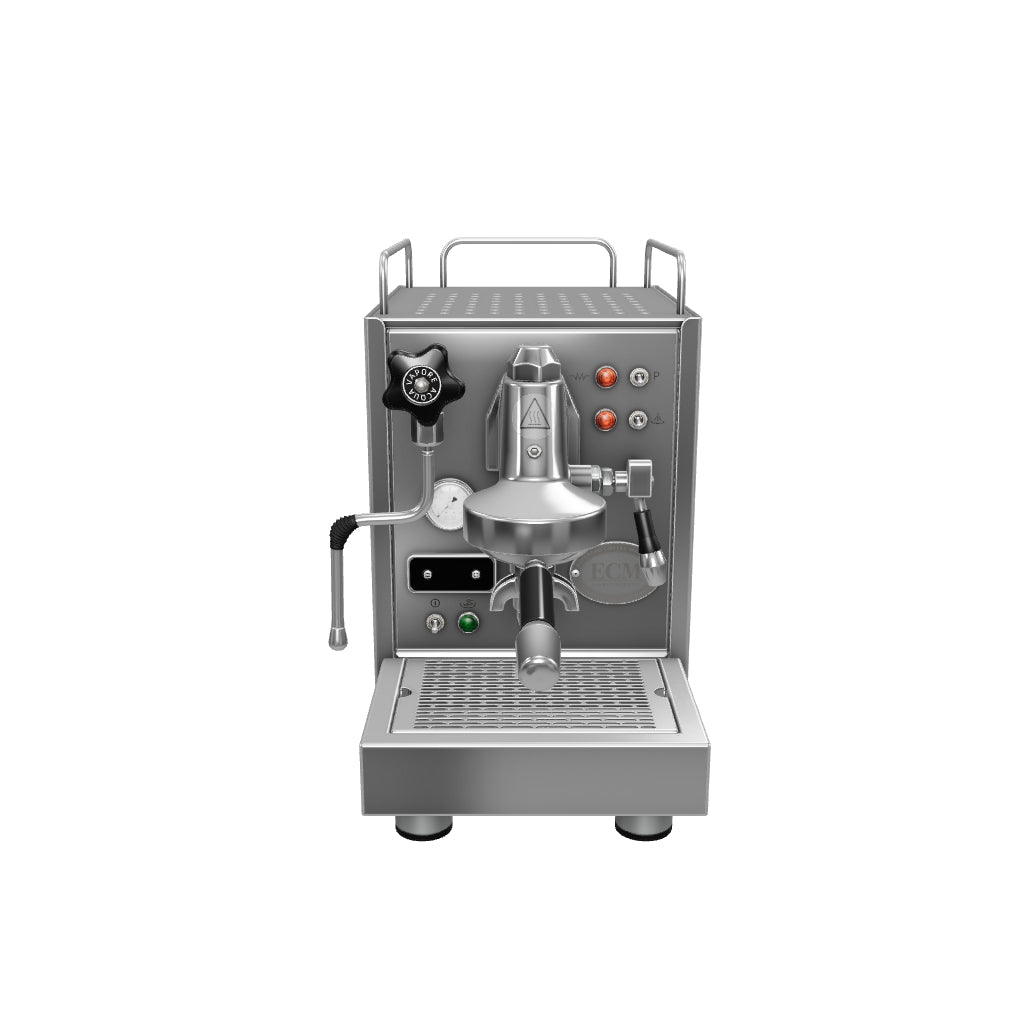

Click the "Launch 3D Viewer" button to open the 3D model viewer and freely rotate or zoom in on a full 3D model of the product. Desktop is limited to the 3D model only, but with a compatible mobile device or tablet, you can get the true experience with Augmented Reality and view the product in your own home.
Using your mouse, you can click and drag to rotate the product in any direction. Using the scroll wheel, you can zoom in and out. Desktop is limited to the 3D model only, but with a compatible mobile device or tablet, you can get the true experience with Augmented Reality and view the product in your own home.
In the 3D viewer, you can tap and drag to rotate the product in any direction. Pinch to zoom in and out. Tap the icon on the bottom right of the viewer to view in full screen and, if your device is compatible, activate Augmented Reality. In Augmented Reality, you can tap and drag to reposition the model, tap and hold and move your camera to reposition the model, and pinch to zoom in and out.
Click and Drag in any direction
Scroll up and down to zoom in and out
If you have AR support you can view in Augmented Reality
Click and Drag in any direction
Scroll up and down to zoom in and out
Grey Limbo
Kitchen
Highrise
Lounge
Click the "Launch 3D Viewer" button to open the 3D model viewer and freely rotate or zoom in on a full 3D model of the product. Desktop is limited to the 3D model only, but with a compatible mobile device or tablet, you can get the true experience with Augmented Reality and view the product in your own home.
Disclaimer: All 3d Models and renderings provided by Whole Latte Love are artist's impressions and are intended for entertainment purposes only. Models may not be to scale, color may vary between devices. Augmented Reality (AR) is not compatible with all mobile devices.
Property | Value |
---|---|
SKU | ECMCLASSIKAPID-OB |
App Connectivity | No |
Boiler Configuration | Single-Boiler/Dual-Use |
Number of Boilers | 1 |
Brew Boiler Auto-Fill | Yes |
Brew Boiler Heater Location | Internal |
Brew Boiler Insulation | Yes |
Brew Boiler Material | Stainless Steel |
Brew Boiler Orientation | Vertical |
Brew Boiler Volume (Oz) | 33 fl-oz |
Three-Way Valve | Manual |
Back Flush Capable | Yes |
Brew Group Material | Chrome Plated Brass |
Brew Group Size (mm) | 58 mm |
Brew Group Type | E61 |
Brew Boiler Wattage | 1200 |
Recommended Application | Home / Residential |
NSF Certified | No |
Display Type | PID Control Screen |
Controls and Additional Features | Brew Temperature Display,Low-Water Warning,Power Light,Temperature Control |
Pressure Gauges | Brew Circuit |
Type of Controls | Lever |
Cup Height (max, inches) | 4 in |
Cup Warmer Material | Stainless Steel |
Cup Warmer Size (L-in x W-in) | 10 x 10 |
Cup Warmer | Passively Heated |
Drain Line Adaptable (Plumbable) | No |
Drip Tray Capacity (oz) | 32 fl-oz |
Drip Tray Cover Material | Stainless Steel |
Drip Tray Material | Stainless Steel |
Removable Drip Tray | Yes |
Portafilter Baskets Included | Double,Single |
Frame Material | Steel |
Housing Color | Stainless Steel |
Housing Material | Stainless Steel |
Recommended Descaler Type | Durgol Swiss Espresso Descaler |
Recommended Water Filter | BWT Bestcup M |
Capacity (Oz) | 25.4 fl-oz |
Property | Value |
---|---|
Depth (Inches) | 17.75 |
Height (Inches) | 15.75 |
Weight (Lbs) | 45.6 |
Width (Inches) | 9.84 |
Bottomless Portafilter Available | Yes |
Filter Diameter (mm) | 58 mm |
Portafilter Handle Material | Bakelite Plastic,Plastic |
Portafilter Material | Chrome Plated Brass |
Number of Portafilters Included | 1 |
Ground, E.S.E., Pod and Capsule Compatibility | Ground Coffee |
Portafilter Type | Commercial Style |
Portafilter Weight (lbs) | 1.25 lbs |
Portafilter Diameter | 58 mm |
Adjustable Brew Pressure | Yes |
Pump Pressure (Max. Bar) | 15 Bar |
Pump Type | Vibration |
Pump Wattage | 52 watts |
Warranty Service Provider Email | support@wholelattelove.com |
Warranty Service Provider | Whole Latte Love |
Warranty Service Provider Phone Number | 888-411-5282 |
Manufacturers Warranty Period | 1-Year Parts and Labor Warranty |
Amps | 10 A |
Volt | 110V-120V (US) |
Watts | 1200 Watt |
Power Cord Length (inches) | 48 in |
Power Cord Storage | No |
Steam Wand Features | No-Burn,Swappable Steam Tips |
Height Off Counter (Inches) | 6.5 in |
Steam Tip Hole Count | 2 |
Steam Wand Material | Stainless Steel |
Steam Wand Movement Type | Fully Articulated |
Steam Wand | Commercial |
Steam Wand Usable Length | 4 in |
Water Reservoir Access Location | Top |
Water Reservoir Capacity | 101.4 fl-oz |
Water Reservoir Features | BPA-Free,Removable |
Water Reservoir Material | Plastic |
Water Source | Built-In Reservoir |
