Heat Exchanger
The Mechanika V Slim is equipped with a 1400 W stainless steel boiler with a capacity of 2.2 L. As a heat exchanger machine, you can expect to brew and steam without waiting, or even at the same time.
Refurbished ECM Mechanika V Slim Espresso Machine
Free shipping on all orders over $75 or more.
The best service with the best selection of products.
ECM Mechanika V Slim Overview
The ECM Mechanika V Slim brings a measure of truth to "less is more" that our kitchen counter really appreciates. The ECM Mechanika V Slim has slimmed down by more than 2 inches thanks to the vertical reorientation of the boiler, now measuring at under 10” wide.
Features and Performance
The new stainless steel boiler has a slightly increased capacity of 2.2L and features thermal insulation for greater energy efficiency. The redesigned interior also resulted in an update to the OPV which is now accessible from the top of the machine and located underneath the reservoir lid.
As a heat-exchanger machine, you'll need to pay attention to temperature and perform a cooling flush every once in a while if the machine has been on for some time. However, the dual pressure gauges, custom ECM E61 group, and adjustable OPV make for a respectable prosumer espresso machine that can fit in the tightest of spaces.
Why You Should Get It
The ECM Mechanika V Slim packs a lot of power in a small package. If you want great espresso brewing equipment, and you want to save on space, there's no better option. As a heat exchanger espresso machine, you can brew espresso and froth milk at the same time, making it quick and easy to prepare lattes and cappuccinos. With it's compact size, you'll have more space on the counter for the drinks you can make for your guests.
-
-
Compact Design
The Mechanika V Slim, at 9.8 inches wide and 15.5 inches tall, doesn't ask for much space at all, fitting comfortably beneath standard kitchen cabinetry and leaving plenty of room on the counter.
-

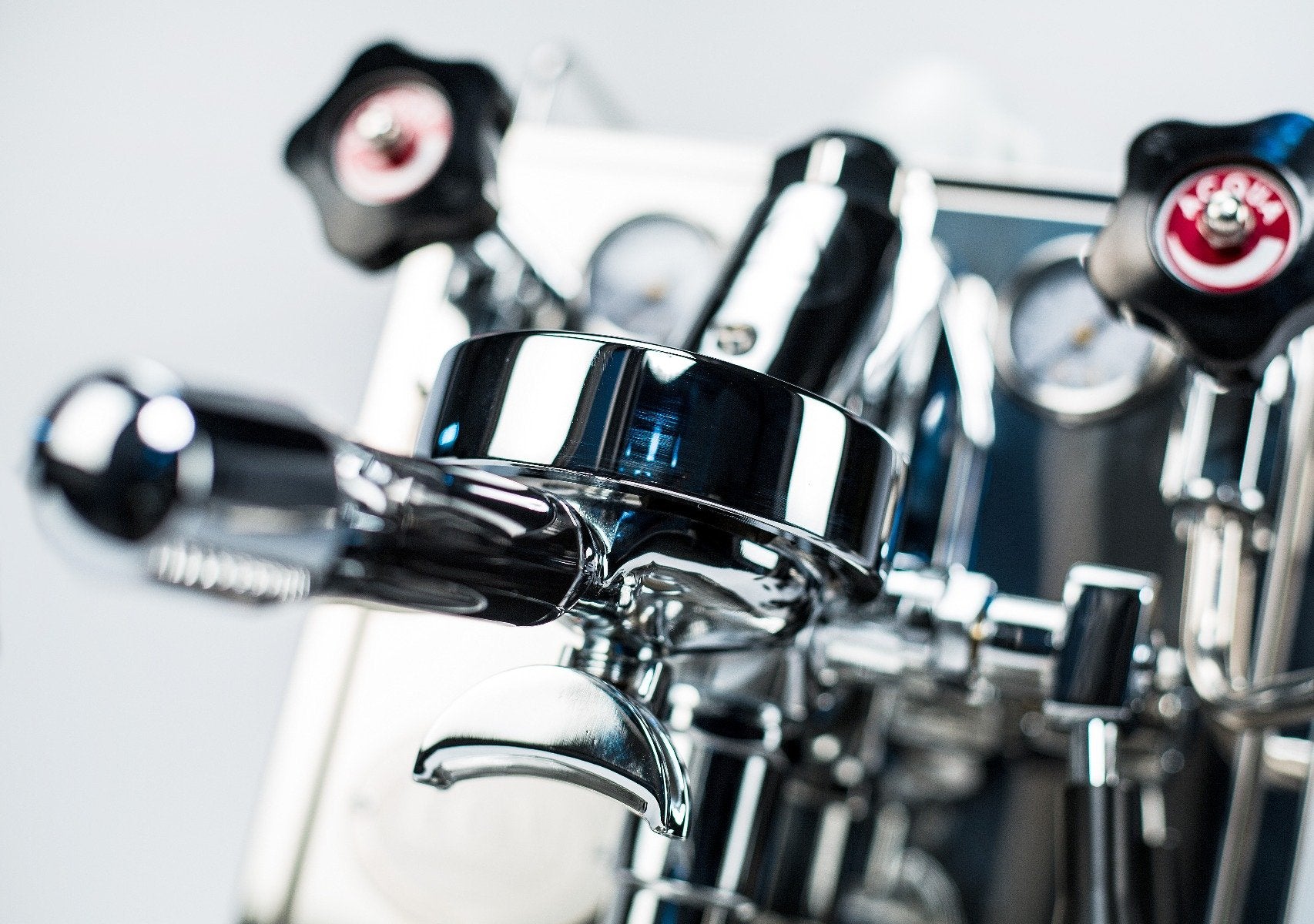

E61 Brew Group
The E61 grouphead is constantly heated with water from the thermosyphon system for temperature stability. It also features a pre-infusion cylinder to aid in the extraction process.
-
Handmade & High-End Construction
The machine is housed in mirror-finished, stainless steel panels. It rests on a one-piece internal steel frame, which protects it from bending or bowing during shipping or as the result of continuous use.
Specifications
| Property | Value |
|---|---|
| SKU | ECMMECHVSLIM-REF |
| App Connectivity | No |
| Boiler Configuration | Heat-Exchanger Preheated |
| Number of Boilers | 1 |
| Boiler Features | Brew & Steam Simultaneously |
| Brew Boiler Auto-Fill | Yes |
| Brew Boiler Heater Location | Internal |
| Brew Boiler Insulation | Yes |
| Brew Boiler Material | Stainless Steel |
| Brew Boiler Orientation | Vertical |
| Three-Way Valve | Manual |
| Back Flush Capable | Yes |
| Brew Group Material | Chrome Plated Brass |
| Brew Group Size (mm) | 58 mm |
| Brew Group Type | E61 |
| Brew Boiler Wattage | 1400 |
| Recommended Application | Home / Residential |
| NSF Certified | No |
| Display Type | Indicator Lights |
| Controls and Additional Features | Pressure Gauge(s) |
| Pressure Gauges | Brew Circuit,Steam Boiler |
| Type of Controls | Lever |
| Cup Warmer Material | Stainless Steel |
| Cup Warmer Size (L-in x W-in) | 10.5 x 9.5 |
| Cup Warmer | Passively Heated |
| Drain Line Adaptable (Plumbable) | No |
| Drip Tray Capacity (oz) | 35 fl-oz |
| Drip Tray Cover Material | Stainless Steel |
| Drip Tray Material | Stainless Steel |
| Removable Drip Tray | Yes |
| Portafilter Baskets Included | Double,Single |
| Housing Color | Stainless Steel |
| Housing Material | Stainless Steel |
| Recommended Water Filter | BWT Bestsave M Anti Scale Filter |
| Capacity (Oz) | 74.4 fl-oz |
| Depth (Inches) | 17.5 in |
| Height (Inches) | 15.5 in |
| Property | Value |
|---|---|
| Weight (Lbs) | 55.5 lbs |
| Width (Inches) | 9.8 in |
| Bottomless Portafilter Available | Yes |
| Filter Diameter (mm) | 58 mm |
| Portafilter Handle Material | Bakelite Plastic,Plastic |
| Portafilter Material | Chrome Plated Brass |
| Number of Portafilters Included | 2 |
| Ground, E.S.E., Pod and Capsule Compatibility | Ground Coffee |
| Portafilter Type | Commercial Style |
| Portafilter Weight (lbs) | 2 lbs |
| Portafilter Diameter | 58 mm |
| Adjustable Brew Pressure | Yes |
| Pump Pressure (Max. Bar) | 15 Bar |
| Pump Type | Vibration Pump |
| Amps | 11.6 A |
| Volt | 110V-120V (US) |
| Watts | 1400 Watt |
| Power Cord Length (inches) | 50 in |
| Power Cord Storage | No |
| Steam Boiler Auto-Fill | Yes |
| Steam Boiler Heater Location | Internal |
| Steam Boiler Insulation | Yes |
| Steam Boiler Material | Stainless Steel |
| Steam Boiler Orientation | Vertical |
| Steam Boiler Volume (Oz) | 74.4 fl-oz |
| Steam Boiler Vacuum Relief Valve | Yes |
| Steam Boiler Wattage | 1400 Watt |
| Steam Wand Features | No-Burn,Swappable Steam Tips |
| Steam Tip Hole Count | 2 |
| Steam Wand Material | Stainless Steel |
| Steam Wand Movement Type | Fully Articulated |
| Steam Wand | Commercial Style |
| Water Reservoir Access Location | Top |
| Water Reservoir Capacity | 101.4 fl-oz |
| Water Reservoir Features | Removable |
| Water Reservoir Material | Plastic |
| Water Source | Built-In Reservoir |
