Heritage Line-Exclusive Design
The Heritage Line of the Mechanika VI Slim wows visually with a satin-finished front panel, anthracite housing, and copper design accents that are truly a sight to behold.
The Heritage Line edition of the Mechanika VI Slim incorporates a truly stunning design consisting of a satin-finished front panel, anthracite housing, and copper design accents on the valves, pressure gauges, emblem, cup warmer rail, and feet of the machine.
With a width of less than 10 inches, the ECM Mechanika VI Slim also retains the compact stature of previous Mechanika versions, while improving upon its predecessors with updates like an all-new three-position switch to easily adjust essential settings like temperature, preinfusion, and ECO mode.
The Mechanika VI Slim utilizes returning features like dual pressure gauges, a custom ECM E61 brew group, and a PID to help alleviate the constant monitoring of temperature and the need to perform periodic cooling flushes that are required of heat exchanger machines.

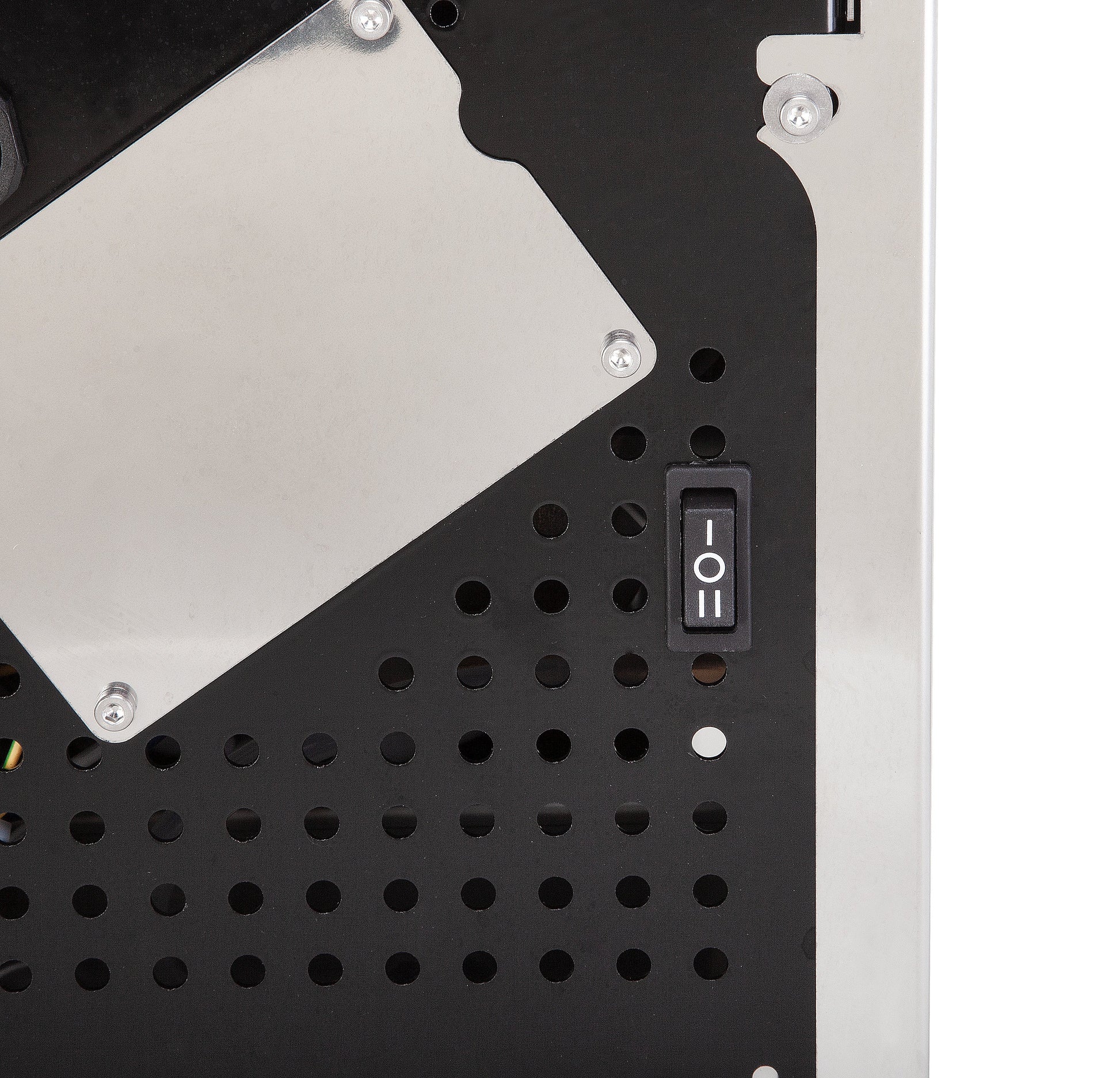

New to this version of the Mechanika line of machines is the three-position switch. Located on the right side of the bottom of the machine, the switch allows for easy adjustment between three preset boiler temperatures, as well as the ability to turn pre-infusion and ECO mode on or off.
Inside the Heritage Line’s unique exterior consisting of a satin-finished front panel, anthracite housing, and copper design accents, is an intuitive interior layout that allows the machine to utilize its signature compact design. The 2.2L stainless steel boiler is vertically oriented to allow for the minimal width, and features thermal insulation for greater energy efficiency. The OPV also remains accessible from the top of the machine, located underneath the reservoir lid.
When it comes to modern heat exchanger espresso machines, the Heritage Line edition of the ECM Mechanika VI Slim is the crème de la crème. Not only is this edition of the Mechanika VI Slim staggeringly compact, it also wows visually with a satin-finished front panel, anthracite housing, and copper design accents that are truly a sight to behold.
The Mechanika VI Slim also houses best-in-class features to maximize the quality of your coffee, as well as minimize the typical maintenance and care required of heat exchanger machines. The addition of a three-position switch for easy adjustment of essential settings like temperature, pre-infusion, and ECO mode is truly a game changer in this regard.
The Heritage Line of the Mechanika VI Slim wows visually with a satin-finished front panel, anthracite housing, and copper design accents that are truly a sight to behold.
Located on the right side of the bottom of the machine, the all-new three-position switch allows for easy adjustment between three preset boiler temperatures, as well as the ability to turn pre-infusion and ECO mode on or off.
With a width of 9.8 inches, a depth of 17.5 inches, and a height of 15.6 inches, the Mechanika VI Slim doesn't ask for much space at all, fitting comfortably beneath standard kitchen cabinetry and leaving plenty of room on the counter.
The Mechanika VI Slim is equipped with a 1400W stainless steel boiler with a capacity of 2.2L. As a heat exchanger machine, you can expect to brew and steam without waiting, or even at the same time.
ECM Single-Spout Portafilter
ECM Double-Spout Portafilter
7-Gram Single-Shot Filter Basket
14-Gram Double-Shot Filter Basket
Backflush Disc
58mm Tamper w/Stainless Base
Brew Group Cleaning Brush
User Manual
Click the "Launch 3D Viewer" button to open the 3D model viewer and freely rotate or zoom in on a full 3D model of the product. Desktop is limited to the 3D model only, but with a compatible mobile device or tablet, you can get the true experience with Augmented Reality and view the product in your own home.
Using your mouse, you can click and drag to rotate the product in any direction. Using the scroll wheel, you can zoom in and out. Desktop is limited to the 3D model only, but with a compatible mobile device or tablet, you can get the true experience with Augmented Reality and view the product in your own home.
In the 3D viewer, you can tap and drag to rotate the product in any direction. Pinch to zoom in and out. Tap the icon on the bottom right of the viewer to view in full screen and, if your device is compatible, activate Augmented Reality. In Augmented Reality, you can tap and drag to reposition the model, tap and hold and move your camera to reposition the model, and pinch to zoom in and out.
Click and Drag in any direction
Scroll up and down to zoom in and out
If you have AR support you can view in Augmented Reality
Click and Drag in any direction
Scroll up and down to zoom in and out
Grey Limbo
Kitchen
Highrise
Lounge
Click the "Launch 3D Viewer" button to open the 3D model viewer and freely rotate or zoom in on a full 3D model of the product. Desktop is limited to the 3D model only, but with a compatible mobile device or tablet, you can get the true experience with Augmented Reality and view the product in your own home.
Disclaimer: All 3d Models and renderings provided by Whole Latte Love are artist's impressions and are intended for entertainment purposes only. Models may not be to scale, color may vary between devices. Augmented Reality (AR) is not compatible with all mobile devices.
Property | Value |
---|---|
SKU | ECMMECHVISLIM-H-REF |
App Connectivity | No |
Boiler Configuration | Heat Exchanger |
Number of Boilers | 1 |
Boiler Features | Brew & Steam Simultaneously |
Brew Boiler Auto-Fill | Yes |
Brew Boiler Heater Location | Internal |
Brew Boiler Insulation | Yes |
Brew Boiler Material | Stainless Steel |
Brew Boiler Orientation | Vertical |
Three-Way Valve | Manual |
Back Flush Capable | Yes |
Brew Group Material | Chrome Plated Brass |
Brew Group Size (mm) | 58 mm |
Brew Group Type | E61 |
Brew Boiler Wattage | 1400 |
Recommended Application | Home / Residential |
NSF Certified | No |
Display Type | Indicator Lights |
Controls and Additional Features | Pressure Gauge(s) |
Pressure Gauges | Brew Circuit,Steam Boiler |
Type of Controls | Lever, Temperature Switch |
Cup Warmer Material | Stainless Steel |
Cup Warmer Size (L-in x W-in) | 10.5 x 9.5 |
Cup Warmer | Passively Heated |
Drain Line Adaptable (Plumbable) | No |
Drip Tray Capacity (oz) | 35 fl-oz |
Drip Tray Cover Material | Stainless Steel |
Drip Tray Material | Stainless Steel |
Removable Drip Tray | Yes |
Portafilter Baskets Included | Double,Single |
Housing Color | Anthracite, Satin Finished Steel |
Housing Material | Stainless Steel |
Recommended Water Filter | BWT Bestsave M Anti Scale Filter |
Capacity (Oz) | 74.4 fl-oz |
Depth (Inches) | 17.5 |
Height (Inches) | 15.5 |
Weight (Lbs) | 55.5 |
Width (Inches) | 9.8 |
Property | Value |
---|---|
Bottomless Portafilter Available | Yes |
Filter Diameter (mm) | 58 mm |
Portafilter Handle Material | Bakelite Plastic,Plastic |
Portafilter Material | Chrome Plated Brass |
Number of Portafilters Included | 2 |
Ground, E.S.E., Pod and Capsule Compatibility | Ground Coffee |
Portafilter Type | Commercial Style |
Portafilter Weight (lbs) | 2 lbs |
Portafilter Diameter | 58 mm |
Adjustable Brew Pressure | Yes |
Pump Pressure (Max. Bar) | 15 Bar |
Pump Type | Vibration |
Warranty Service Provider Email | support@wholelattelove.com |
Warranty Service Provider | Whole Latte Love |
Warranty Service Provider Phone Number | 888-411-5282 |
Manufacturers Warranty Period | 1-Year Parts and Labor Warranty |
Amps | 11.6 A |
Volt | 110V-120V (US) |
Watts | 1400 Watt |
Power Cord Length (inches) | 50 in |
Power Cord Storage | No |
Steam Boiler Auto-Fill | Yes |
Steam Boiler Heater Location | Internal |
Steam Boiler Insulation | Yes |
Steam Boiler Orientation | Vertical |
Steam Boiler Volume (Oz) | 74.4 fl-oz |
Steam Boiler Vacuum Relief Valve | Yes |
Steam Boiler Wattage | 1400 Watt |
Steam Wand Features | No-Burn,Swappable Steam Tips |
Steam Tip Hole Count | 2 |
Steam Wand Material | Stainless Steel |
Steam Wand Movement Type | Fully Articulated |
Steam Wand | Commercial |
Water Reservoir Access Location | Top |
Water Reservoir Capacity | 101.4 fl-oz |
Water Reservoir Features | Removable |
Water Reservoir Material | Plastic |
Water Source | Built-In Reservoir |
